18
8 Module Installation
An optional module mounting bracket kit is available for purchase from NORAC. The
mounting brackets are compatible with control modules and input modules. One kit is needed
per module.
Item Part Number Name Quantity
B20 43708 UC5 MOUNTING BRACKET KIT (CONTROL AND INPUT MODULES) 1
8.1 Control Module
1. Refer to Figure 2 and Figure 16.
2. Securely mount the control module (E01) with the lowest serial number inside the sprayer
cab, using screws, cable ties or optional brackets.
3. Connect cable C21 to the control module. This display cable must be connected to the
end of the control module with only one Deutsch connector.
4. Connect the display terminal to cable C21 using the existing display cable.
5. Connect the power cable (C30) to one of the two CANbus connectors on the control
module. Connect the other end of the power cable to the terminal strip in the cab. Be
sure that the power is connected to a switched power supply.
6. Route cable C02 from the other CANbus connector, through the cab knock outs and into
the space underneath the cab.

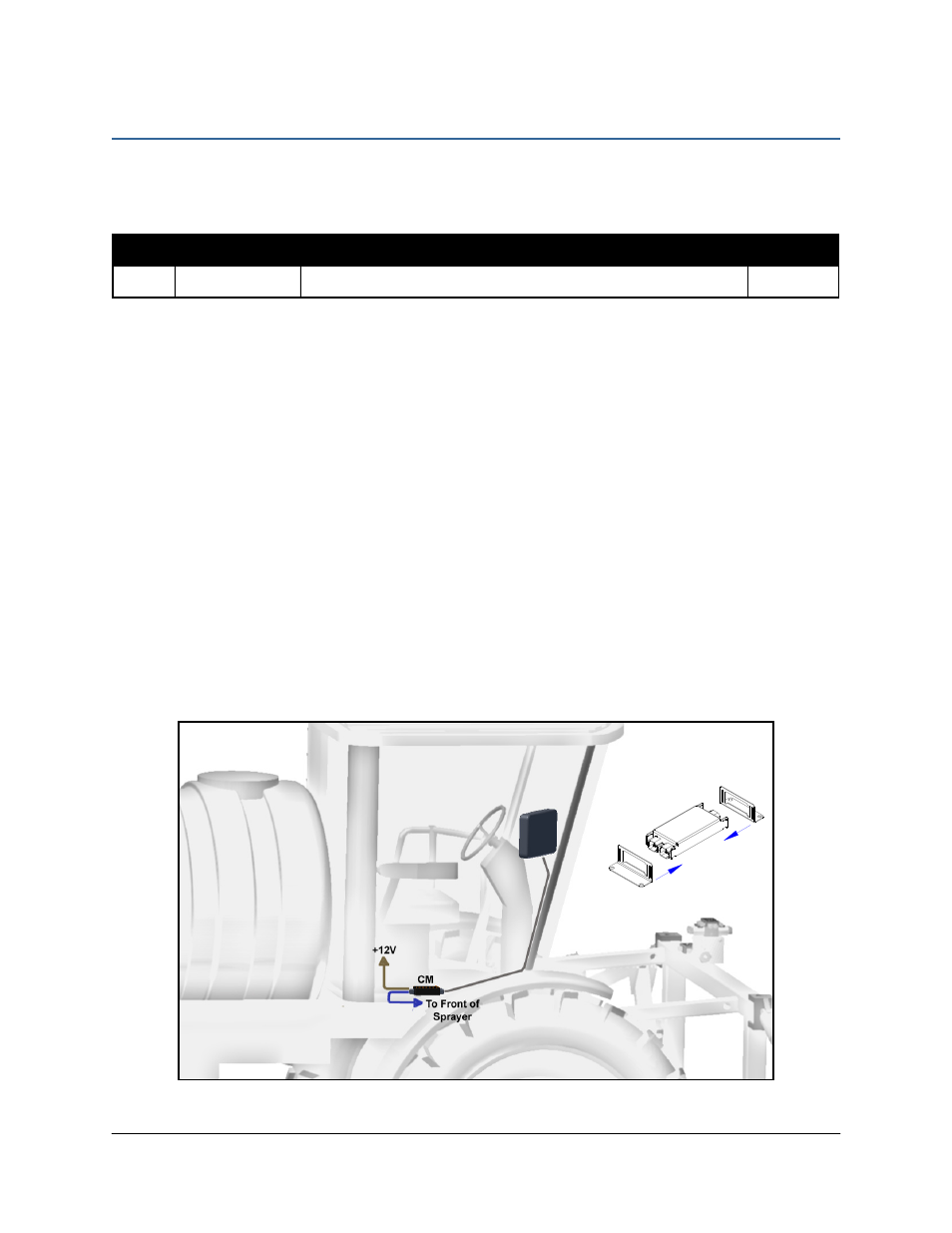

Figure 16: Control Module Mounting
