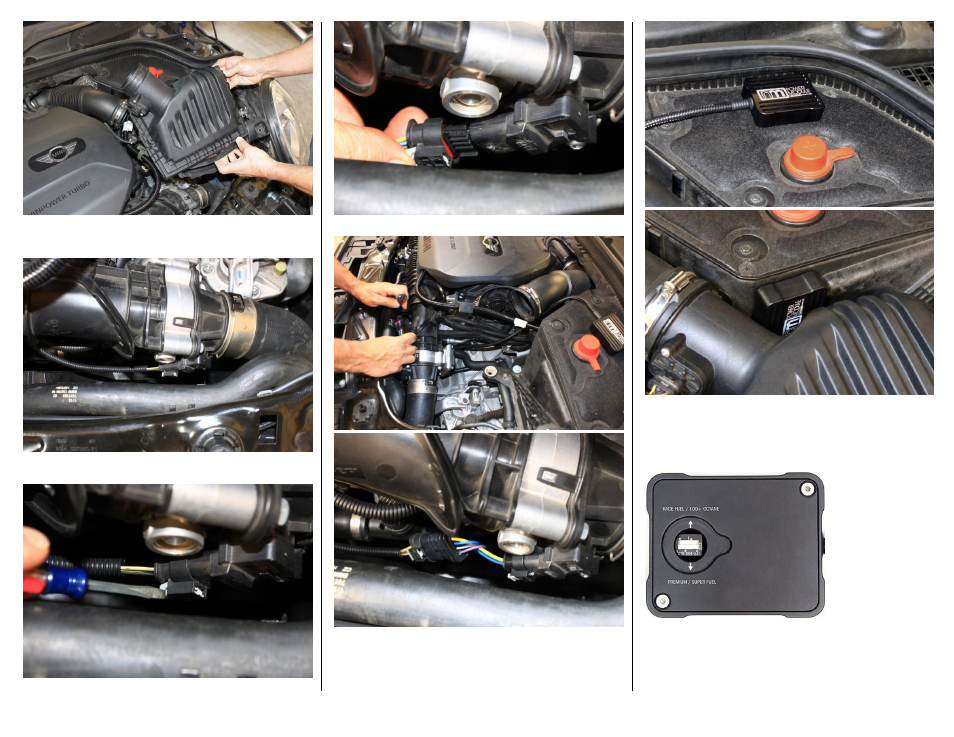

7. Lift out air filter box. NOTE: There are [2] pin mounts that sit
into rubber grommets on bottom back side, so a little effort
may be required to lift air filter box off rubber mounts.
8. Locate the T-MAP sensor electrical connection at throttle
body.
9. Using small screwdriver, back out grey locking clip.
10. Then squeeze tab to unlock and disconnect.
11. Route NM Power Module harness along the engine harness
then underneath the throttle body up to the factory connector.
Mate factory connector to Module connector and then Module
connector to throttle body.
12. NM Power Module can be mounted in a couple of desired
places. With supplied Velcro; either stick right on top of battery
cover or on front of battery box.
13. Re-install factory air box, intake hose, rubber support for
battery cable and front air duct.
14. NM Power Module has a (2) position power switch access from
the back side. DOWN position for Premium fuel 91+ octane
(3PSI increase) and UP position for 100+ Race fuel (5PSI
increase).
NOTE: Only use RACE setting when fuel in gas tank
is 100 octane or higher.
15. ECU trims will adapt within 20 miles of driving. Enjoy!
