PARTS INCLUDED: NM.658858 / NM.658858.1
[1] Stainless Steel Intake Pipe Bracket [1] SS Duct Support Bracket
[1] Silicone Turbo Inlet Hose [2] M8 Washers [1] 25mm SS Hose Clamp
[1] Aluminum or Carbon Intake Pipe [1] Air Filter [3] #44 SS Hose Clamps [2] M8 Lock nuts [1] #28 SS Hose Clamp
[2] SS Button Head Bolts M6 x 16mm [1] SS Button Head Bolt M6 x 10mm [2] M6 Lock Nuts
TOOLS & SUPPLIES REQUIRED:
[1] T25 TORX Driver
[1] T30 TORX Driver [1] 7mm Nut Driver [1] Screwdriver
[1] 10mm Socket or Wrench [1] 13mm Socket or Wrench [1] 4mm Hex key wrench [1] Needle nose pliers
[1] Degreaser or contact cleaner [1] Clean shop rag [1] 8mm Nut Driver [1] Heat Gun

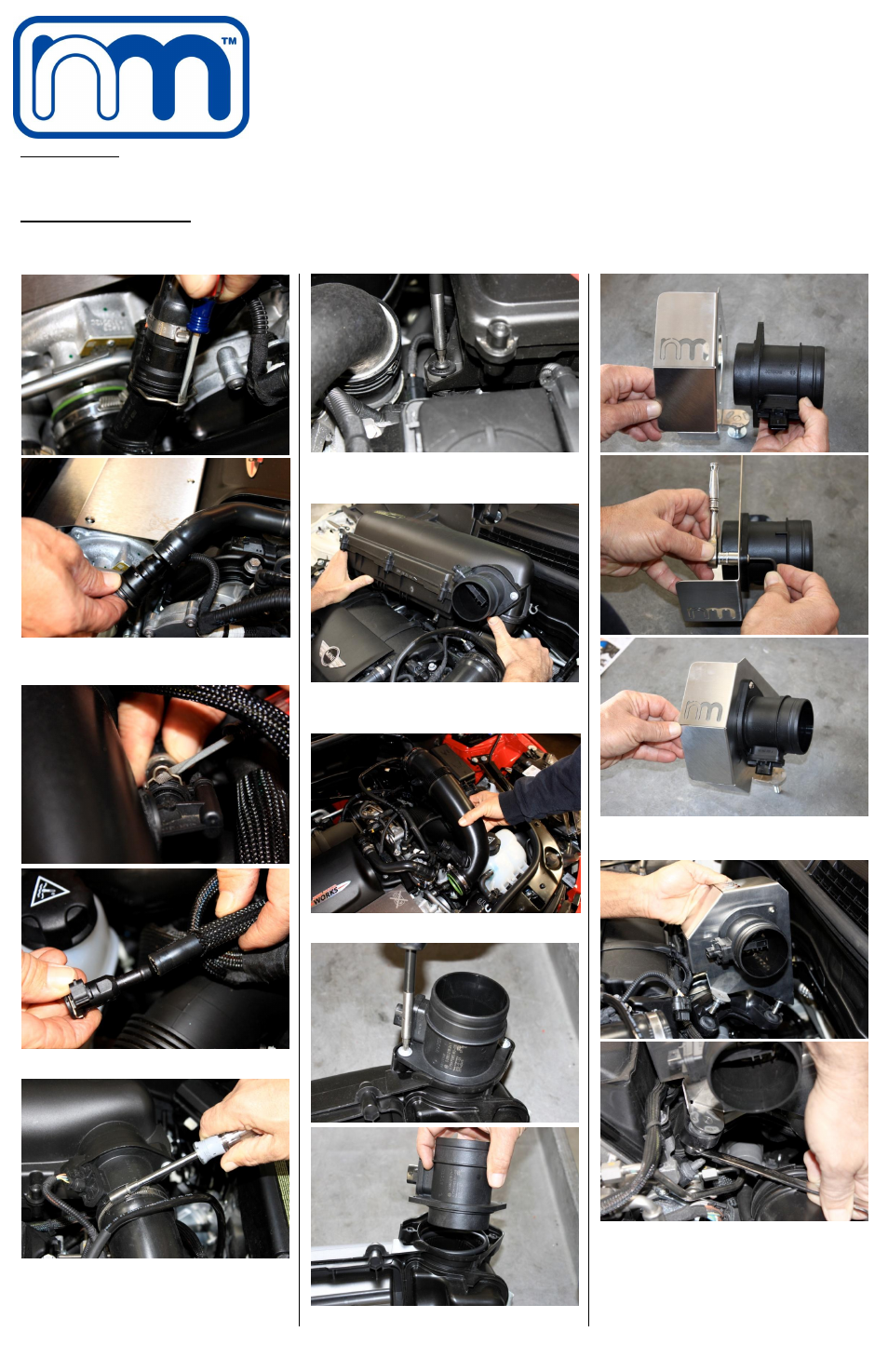

1. Disconnect valve cover breather hose from turbo intake pipe,
unclip wire connection then cut off hose clamp and remove
plastic fitting.
2. Disconnect vent hose on side of turbo inlet pipe, unclip wire
connection then cut off hose clamp and remove plastic fitting.
3. Loosen clamp at MAF sensor to turbo intake pipe and
disconnect.
4. Remove T25 TORX screw located on passenger side of air
filter box and lift off. NOTE: There are [3] pin mounts that are
pushed into rubber grommet mounts on intake manifold, so
effort may be required to lift air filter box off of mounts.
5. Locate fresh air pipe that is attached to air filter box.
Disconnect fresh air pipe by rotating the connection counter
clockwise and pulling pipe away from air filter box. Remove
air filter box from vehicle.
6. Disconnect any wire harness and hose supports on intake
tube then loosen clamp at turbo and remove.
7. Remove MAF sensor from air filter box by removing [2] T30
TORX screws.
8. Install MAF sensor to NM stainless steel intake pipe bracket
using supplied M6 x 16mm button head bolts and M6 nuts.
[4mm hex key wrench / 10mm socket or wrench]
9. Install NM SS bracket onto factory air filter box mounts.
NOTE: Make sure rubber grommets are still in place and not
attached to bottom of the OE air filter box. From bottom side
of mounts, install and tighten using supplied M8 washers and
M8 lock nuts. [13mm wrench]
HI-FLOW INDUCTIONS KIT *
– NM.658858 / NM.658858.1
[R55] MINI Cooper S 2011-up & JCW Clubman 2013-up
[R56] MINI Cooper S 2011-up & JCW Hardtop 2013-up
[R57] MINI Cooper S 2011-up & JCW Convertible 2013-up
[R58] MINI Cooper Coupe 2011-up
[R59] MINI Cooper Roaster 20012-up
[R60] MINI Countryman 2011-up
[R61] MINI Paceman 2013-up
