NM Engineering 498856 User Manual

NM Engineering For the car

NM Engineering ∞ 3300 Corte Malpaso, Camarillo, CA 93012 ∞ 805.388.7171 ∞ 805.388.0030 FAX

[email protected] ∞ www.nm-eng.com

PARTS INCLUDED:
[1] Billet adapter

[1] “O” Ring

[1] SS Button head bolt M6 x 10mm

TOOLS & SUPPLIES REQUIRED:
[1] T25 TORX Driver [1] 7mm Nut Driver

[1] 8mm Nut Driver or Socket

[1] Screwdriver

[1] 4mm Hex key wrench [1] Ratchet

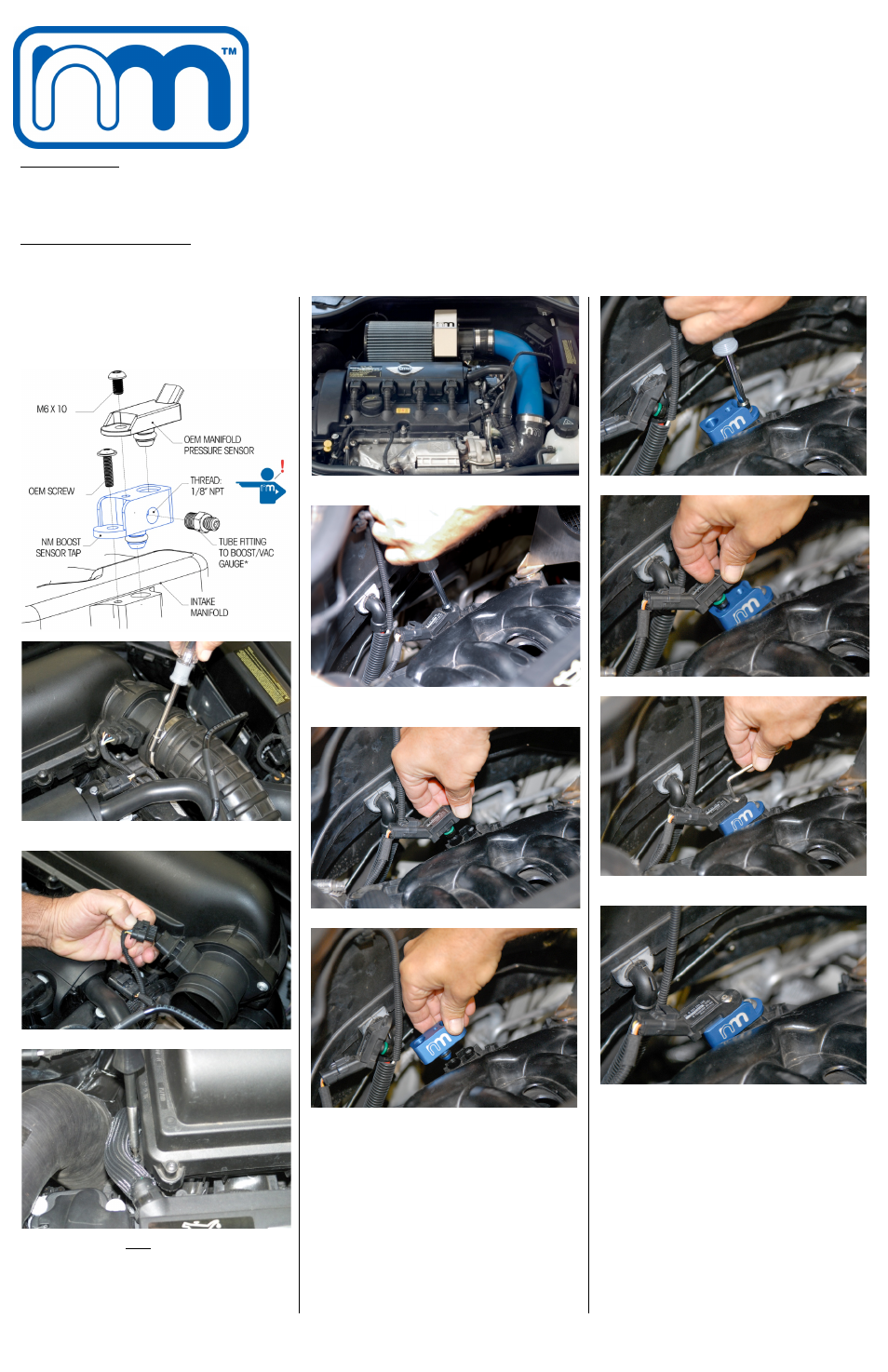

INSTALLATION OVERVIEW DIAGRAM:
The back side of NM Adapter has 1/8” NPT port for gauge hook up.
Check your gauge installation kit has the necessary adapters.

*Tube fittings are not included and usually are included with most
boost gauges. Check with the gauge manufacturer to ensure
compatibility with the NM Engineering Boost Sensor Tap.

Remove OE turbo inlet hose from MAF (mass air flow) sensor.
Use screwdriver or 7mm Nut Driver to loosen clamp.

Disconnect electrical connector from MAF.

Remove T25 TORX screw located on passenger side of air
filter box and lift off. NOTE: There are [3] pin mounts that are
pushed into rubber grommet mounts on intake manifold, so
effort may be required to lift air filter box off of mounts.

If you have NM Hi-Flow Induction Kit just remove filter.

Located on back side of intake manifold, remove screw that
retains MAP (manifold absolute pressure) sensor using an
8mm Nut Driver or 8mm Socket.

Pull out MAP sensor.

Lightly grease “O” ring on NM Boost Sensor Tap and install
onto manifold.

Using original screw tighten NM Boost Sensor Tap.

Install MAP sensor into NM Adapter, lightly grease “O” ring.

10. Using supplied M6 x 10mm screw, tighten MAP sensor to NM

Boost Sensor Tap.

11. Double check complete installation.

12. With your boost gauge installed and sensing line hooked up to

the NM Boost Sensor Tap, reassemble intake system and test
drive carefully.

BOOST SENSOR TAP – NM.498856

[R55] MINI Cooper S Clubman 2008-up
[R56] MINI Cooper S Hardtop 2007-up
[R57] MINI Cooper S Convertible 2009-up
