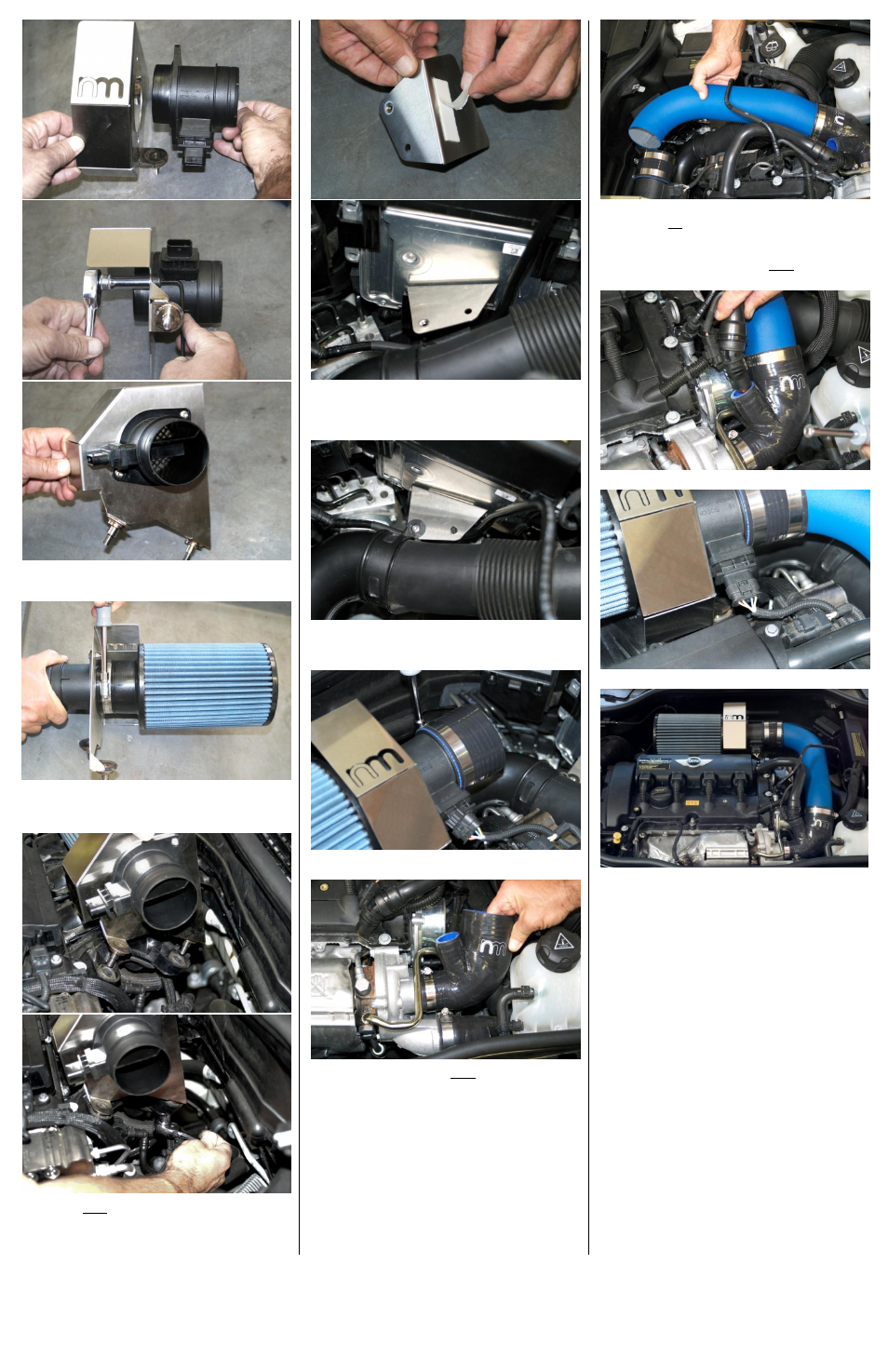

Install MAF sensor to NM stainless steel intake pipe bracket
using supplied M6 x 16mm button head bolts and M6 nuts.
[4mm hex key wrench / 10mm socket or wrench]

10. Using degreaser or contact cleaner and shop rag, clean inner

mounting flange of NM filter. Install and tighten filter onto
MAF sensor. Position NM logo on end of filter for proper
reading orientation.

11. Install NM filter assembly unit onto factory air filter box

mounts. NOTE: Make sure rubber grommets are still in place
and not attached to bottom of the OE air filter box. From
bottom side of mounts, install and tighten using supplied M8
washers and M8 lock nuts. [13mm socket and wrench]

12. Remove protective film from double-sided tape on stainless

steel fresh air hose bracket. Slide bracket down between
ECU and black plastic ECU mount, while keeping double
stick tape from touching. With bracket pushed all the way
down, press against ECU.

13. Attach brake booster line holder to forward mounting hole in

bracket. Secure fresh air pipe to rearward mounting hole
using supplied M6 x 10mm button head bolt. [4mm hex key
wrench]

14. Install and tighten silicone coupler onto MAF sensor using

supplied #44 hose clamp.

15. Loosely install silicone turbo inlet hose onto turbo using

supplied #28 hose clamp. NOTE: Do NOT tighten at this
time.

16. Loosely install supplied #44 clamps onto both silicone hose

ends, then install aluminum intake pipe into silicone turbo
inlet hose first and then into MAF sensor hose. Adjust as
necessary for clearance, paying close attention to clearance
of silicone turbo inlet hose and coolant reservoir bottle.
Tighten all clamps, use caution NOT to over tighten on
Carbon Fiber Tube if being used. NOTE: Do not forget to
tighten #28 hose clamp from Step 14.

17. Install valve cover breather into silicone turbo inlet hose.

18. Reconnect MAF sensor electrical connector.

19. Double check complete installation. Test drive and double

check all connections.
