STEERING HEAD BEARING RACE PULLER P/N 08-0545
1. Remove all parts necessary as per your OEM manual
to access your steering head bearings. For this job you
will need a 24 mm and a 12 mm wrench.

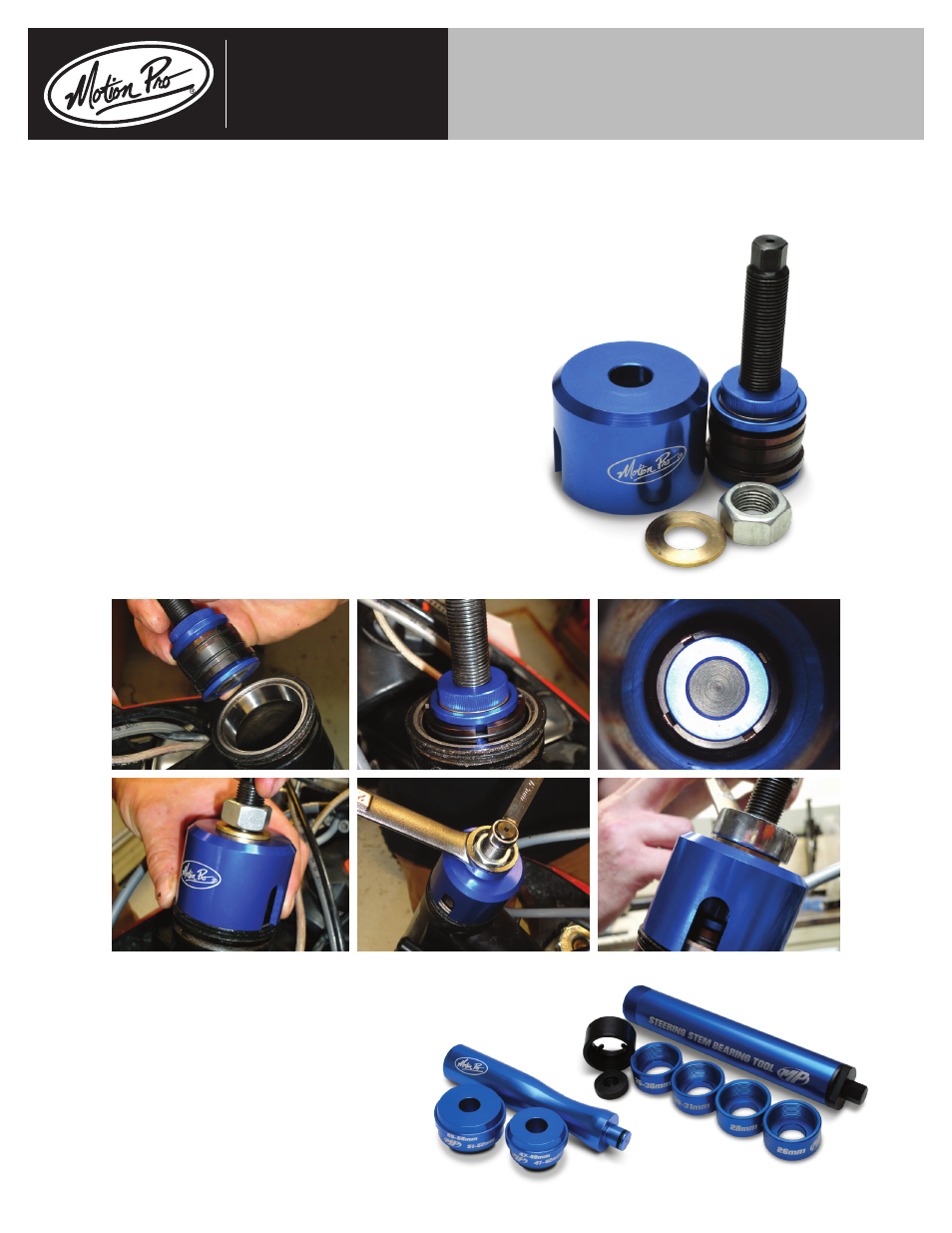

2. Insert the puller into the frame as shown in the picture.
Tighten the aluminum expansion nut to secure the puller
to the lip of the tapered bearing race. WARNING!!! Make
sure that the lip of the puller is engaged with the bearing!!!
on some frames it is easy to grab the lip of the bearing seat.
3. Install the puller cup, washer, and nut as shown in the
picture. Make sure that the cup is centered on the
frame and tighten the assembly.
4. Use the 12 mm wrench to keep the puller from rotating
while you tighten the nut with a 24 mm wrench. Repeat
this sequence until the bearing has been fully removed
from the frame.
INSTRUCTIONS
Process Black
White White/Black MOTION PRO, INC. LOGO
Motion Pro, Inc.
867 American Street
Tel 650.594.9600 Fax 650.594.9610
www.motionpro.com
I08-0545 012015
For installing the new bearing we recommend the
Motion Pro Steering Head Race Driver (P/N 08-0550).
To remove and replace the bearing from the steering
stem we recommend the Motion Pro Steering Stem
Bearing Tool (P/N 08-0544).
