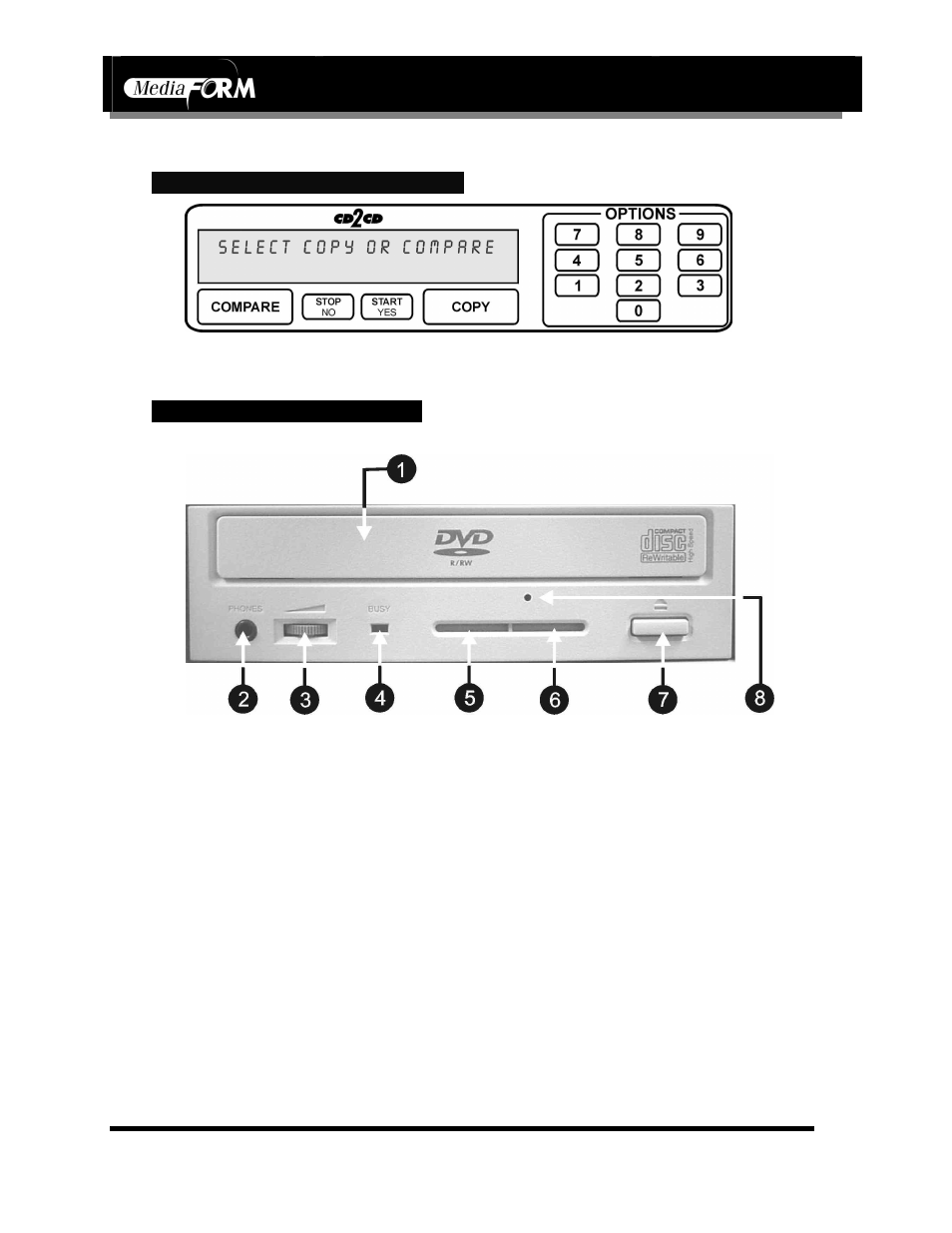

Location Of DVD-R/RW Recorder Parts And Controls
LCD Display Screen And Keypad
Pioneer A04 DVD-R/RW
Legend
1)
Disc Tray - Discs are loaded and removed from this tray. Pressing the eject button will open the
tray when the power to the 5000 Series is switched on.
2)
Headphone Jack – Connect headphones here.
3)
Volume Control Knob – This controls the volume level of the headphones.
4)
Disc Indicator – Light indicates presence of disc in drive.
5)
Ventilation Hole – Do not block.
6)
Ventilation Hole – Do not block.
7)
Eject Button – This button is used to manually open the disc tray.
8)
Emergency Eject Pinhole – In the event that the disc tray will not open by pressing the eject
button, insert the tip of a large paper clip into this hole.
