1.1

What’s Included with an EVK?

The HPL Evaluation Kit (EVK) includes the 78M6613 HPL Board (P/N 78M6613-SP-1) demonstrating an
example modular daughter card for measurements of a single phase AC load or power supply. The small
daughter card incorporates the 78M6613 power and energy measurement IC and plugs into a host
adaptor board that includes sensors, connection to AC mains, and an isolated serial port connection to a
Windows PC.


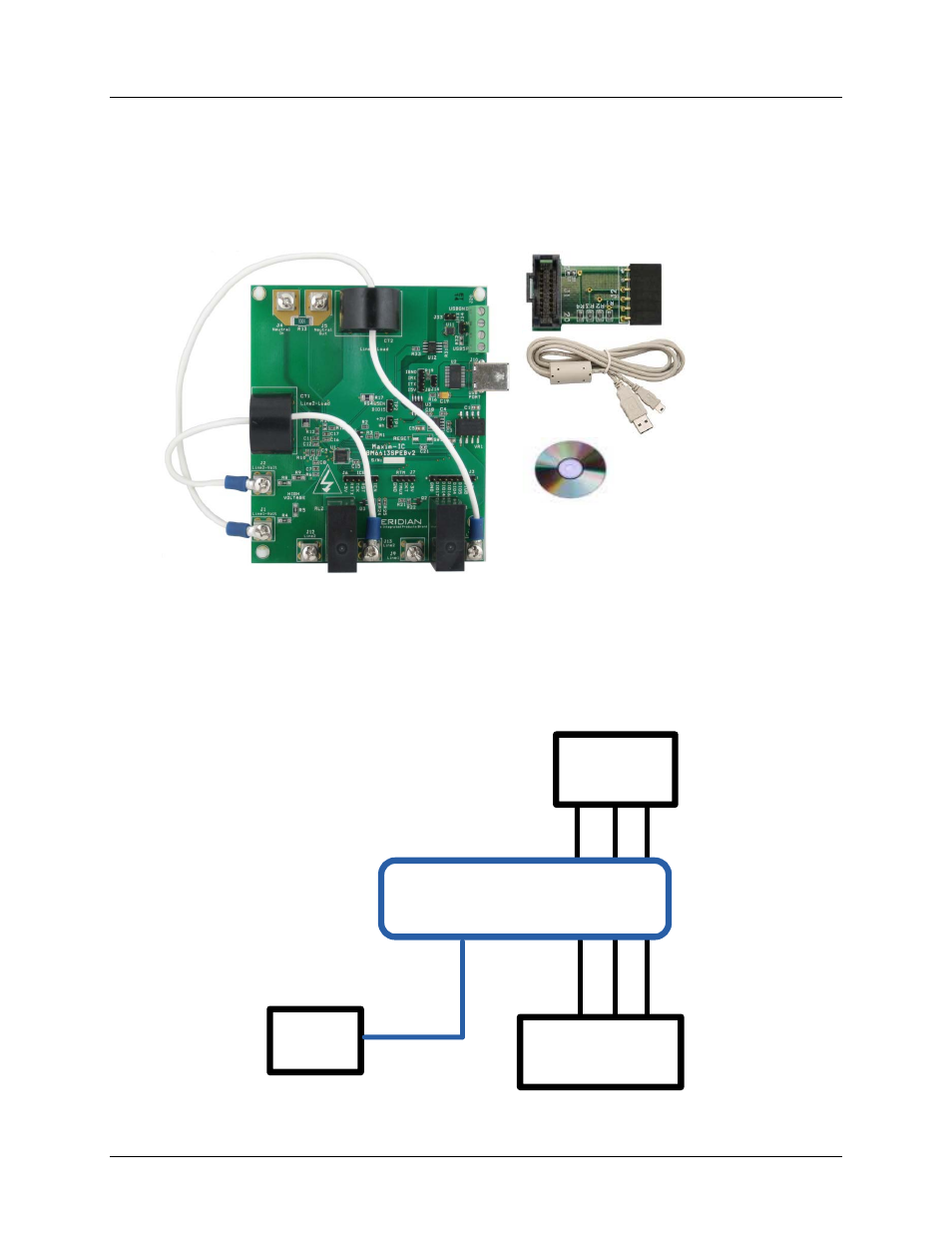

ICE Adaptor
Board

USB Cable

CD with GUI
Software and
Documentation

78M6613 HPL Board


The 78M6613 on the board is pre-programmed with HPL Demo Code and calibrated at the factory. The
78M6613 energy measurement data and status is read back over the serial UART interface presented to
the PC as a virtual COM port. The 78M6613 HPL Evaluation Kit requires a PC with Microsoft

®

Windows

XP or later with a USB port and a minimum 1024 x 768 video display resolution. An AC source and load
complete the rest of the test setup needed to collect measurements.

78M6613 HPL
Eval Kit

USB

Load Under Test

Host PC

120/240V

Split Phase

AC Source
