4 Getting Started with Flash Programming

4.1

Via the GUI

If the Firmware includes a Boot Loader, the following steps describe how to use the GUI to upgrade the
Firmware using the Boot Loader:

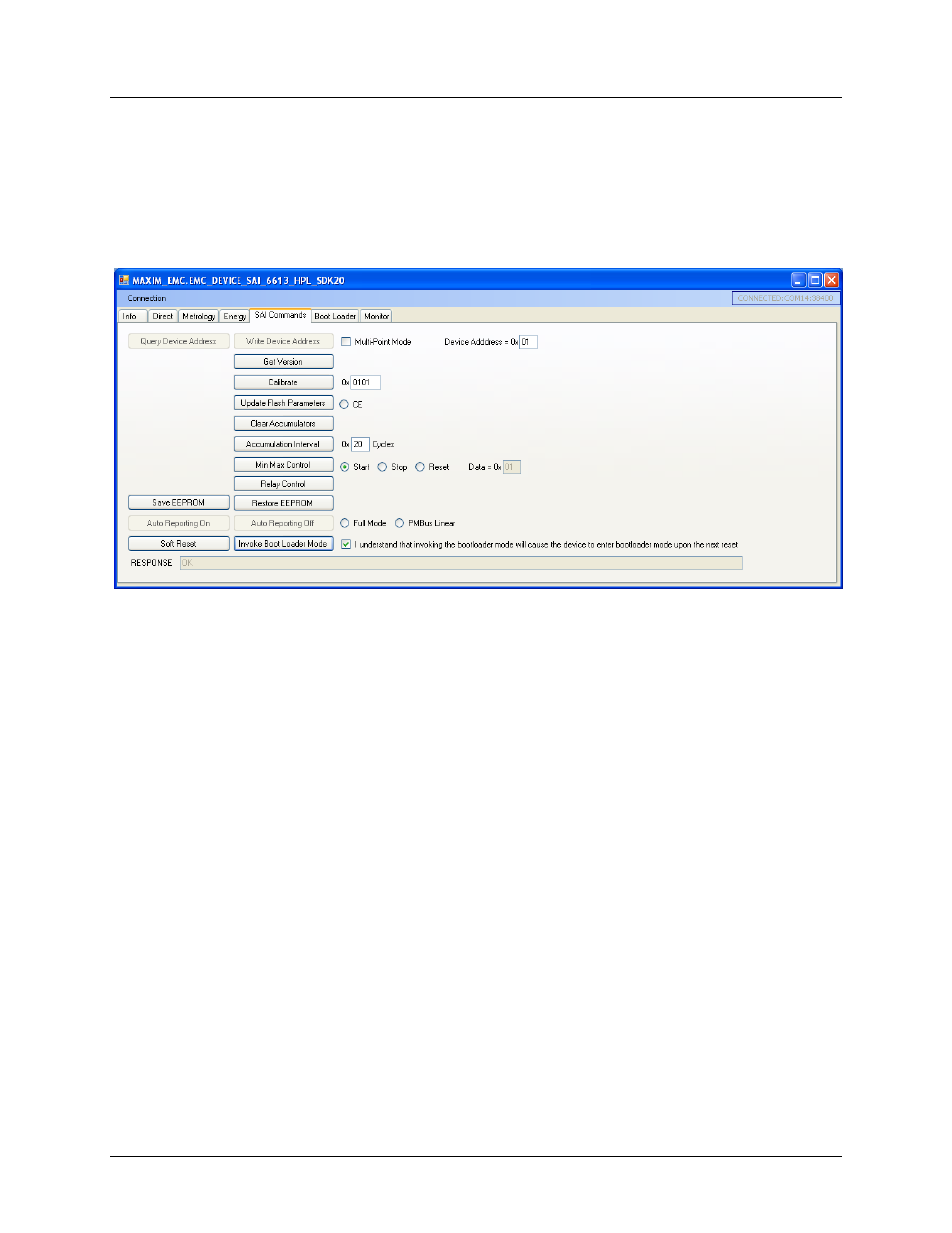

1. On the SAI Commands tab, click the Invoke Boot Loader Mode button near the lower-left corner.


2. Power cycle the device, or send “Soft Reset” command. It will enter the Boot Load mode. This can be

verified by observing the DIO4 pin, which produces 15 ms pulses when the boot loader is in
operation.
