4. Routing the wiring harness.

- Route the GREEN/BROWN wire
along the RIGHT side of the frame.

- Route the YELLOW/BROWN wire
along the LEFT side of the frame.

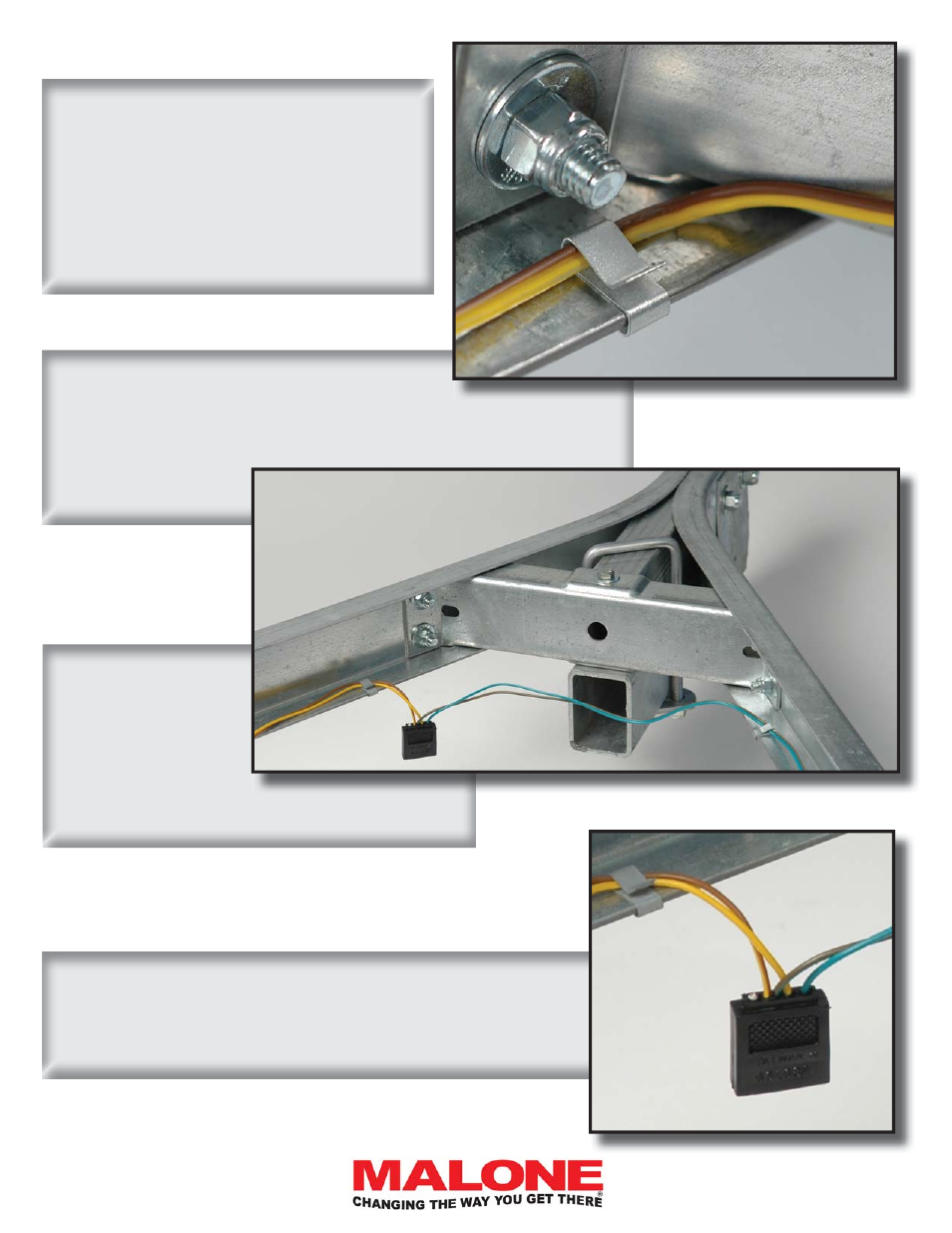

5. Use the clips provided to secure the wire
to the inside of the frame channel as shown.

6. Position the
harness connec-
tor off center close
to a frame rail as
shown. This holds
the connector up at the frame during trailering.

7. The white wire on the connector is not needed at this
location on the trailer. Clip it off fl ush with the connector.
