I N S T A L L A T I O N M A N U A L & U S E R ' S G U I D E
L . R . B A G G S P I C K U P S
D U A L S O U R C E
4 8 3 N . F R O N T A G E R D .
N I P O M O , C A 9 3 4 4 4
W W W . L R B A G G S . C O M
fig. 1
1 . P A C K A G E C O N T E N T S
One (1) Dual Source preamp
One (1) Dual Source mic
One (1) Ribbon Transducer
One (1) prewired strapjack assembly
One (1) Battery Bag
Three (3) self-stick wire clips
One (1) Remote Control
One (1) Remote Control cable
2 . O V E R V I E W A N D C A U T I O N S
The Dual Source is designed to support most acoustic guitar pickups and popular mini-microphones. If this unit was purchased as the Dual
Source System, it will include our Ribbon Transducer and Dual Source mic. No soldering will be needed. If you purchased only the preamp,
connectors are provided for the mic and pickup. Do not use the mic channel for a second pickup.
We recommend that this system be installed by a professional dealer/installer. We do not provide installation advice or support for home or
hobbyist installations. Installers: please read the instructions carefully before proceeding. We will not be responsible for any damage to the guitar
or personal injury resulting from installation, improper installation, use or misuse of the product.
3 . I N S T A L L A T I O N
1. Strapjack installation: Drill a 1/2" hole in the tail block using a step drill.
Cover the area you are drilling with masking tape to protect the finish.
Remove the strap ring, retaining nut and one washer from the end of the jack.
There should still be one star locking washer, one flat washer and a nut
remaining on the mid section of the jack. Bring the jack down into the sound
hole and through your pre-drilled hole in the tail block. Using the internal nut
(be sure to include the flat and star washers), set the proper depth that will
allow the smaller threaded section at the end of the jack to protrude out of
the end of the guitar. When the jack is fully seated in the tailblock, there
should be about 2 threads of the small threaded section remaining inside the
hole. With the jack in place, lay the remaining washer over the threads and
attach the external retaining nut until it's tight. Finish by attaching the strap
button (it should cover the retaining nut and washer) carefully so as to not
crack the finish of the guitar by asserting too much pressure.
2. Pickup installation: Install the pickup at this time by following the
instructions provided with the pickup. If you are using any pickup other than
the Ribbon Transducer, attach the mini-plug (provided) to the pickup wire
after it has been installed. The pickup wire should be long enough to reach
through the sound hole to facilitate the soldering. Cover the top of the guitar
to protect it. Remove the black threaded barrel from the plug and slide it over
the wire with the threaded section facing the end of the wire; forgetting to do
this may cause severe headaches. Now solder the hot wire (the inner part of
the coax) into the small, tube-shaped area in the center of the plug. Bend the
ground tabs around the shield wire and solder the shield wire to them. Clip
the excess shield wire, and firmly screw the barrel onto the plug.
3. Microphone setup: This system is engineered for the Dual Source mic, but
will support most other popular internal mini guitar mics with the standard
two-wire connection. If you are installing a mic other than the Dual Source mic, consult the mic owner's manual for the proper connection. Attach
the connector to the wire at this time as follows:
A: The Dual Source Preamp kit provides two small metal crimp pins and a brown plastic connector for the mic. Crimp the signal wire in one of the
pins (refer to your mic's manual to identify the wires), and the ground and shield wires together in the other one, as shown in figure 2.
B: Now slip the crimped wires into the brown connector so they snap into place. The signal wire needs to go into the side marked with a "1" (see
figure 2). The preamp provides nine volts on the signal (pos.) pin for the mic, making phantom power from an outside source unnecessary. Set the
mic aside at this time and continue with step 4. Placement of the mic will be completed later, after the preamp is installed.
4. Remote Control setup: The Remote Control Module consists of a black circuit board and the anodized aluminum top plate forming two halves of
a clamp that mounts on the top edge of the soundhole. Connect the ribbon cable (provided) to the ZIF (zero insertion force) socket connec-tor on
the bottom side of the remote module in the same manner as shown in figure 3.
tail block
smaller threaded
section protrudes

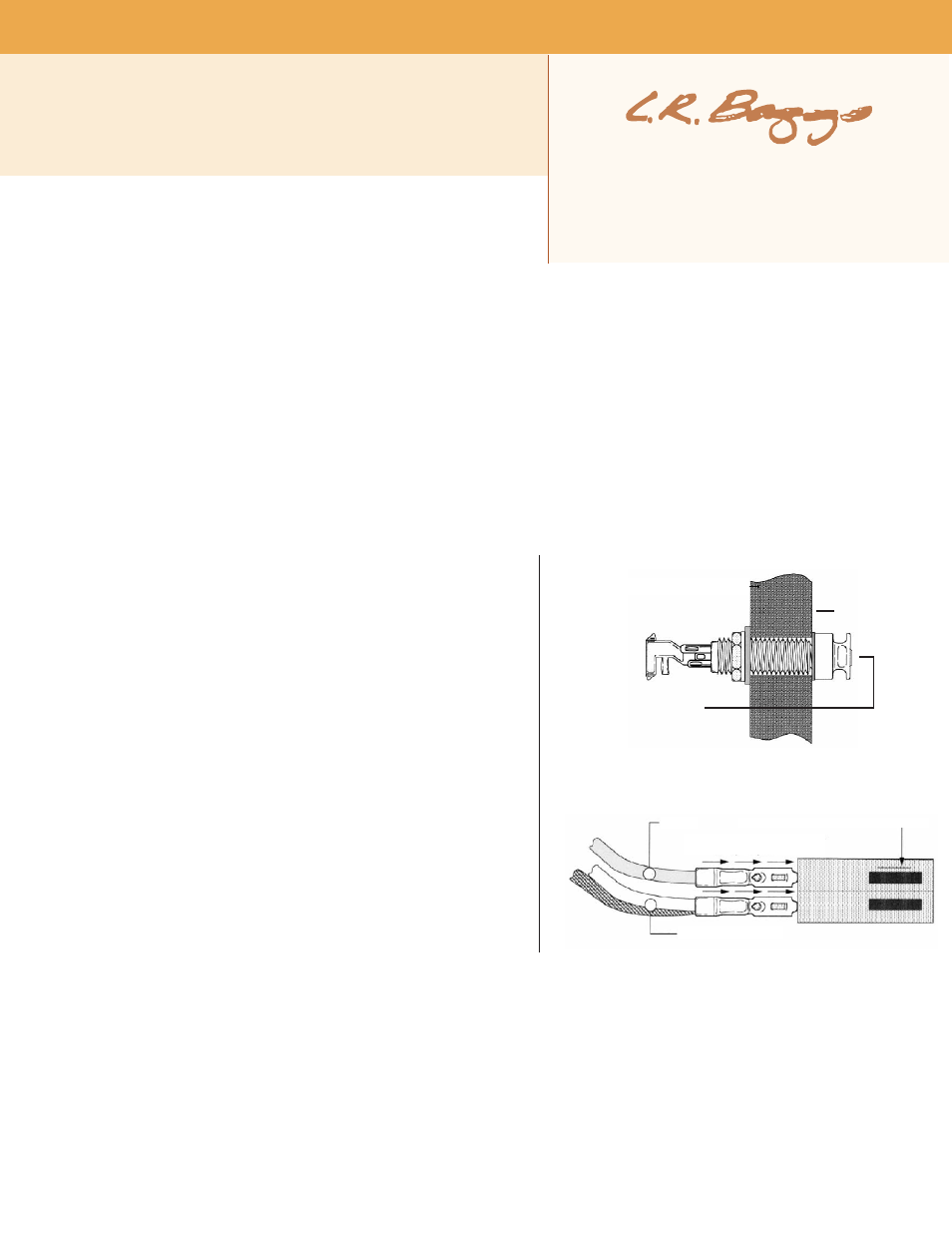

fig. 2: mic connector
signal wire signal wire goes in the side with the #1
push pins all the way into the
connector until they snap into place
shield/ground wires
