Enhanced 10/100Base-TX to 100Base-FX Converter
- 23 -
Appendix B
About RJ-45 Cables
When connecting your network devices, use standard
Category
3 eight-way cables for 10Base-T
configurations and Category 5 cable for 100Base-TX.

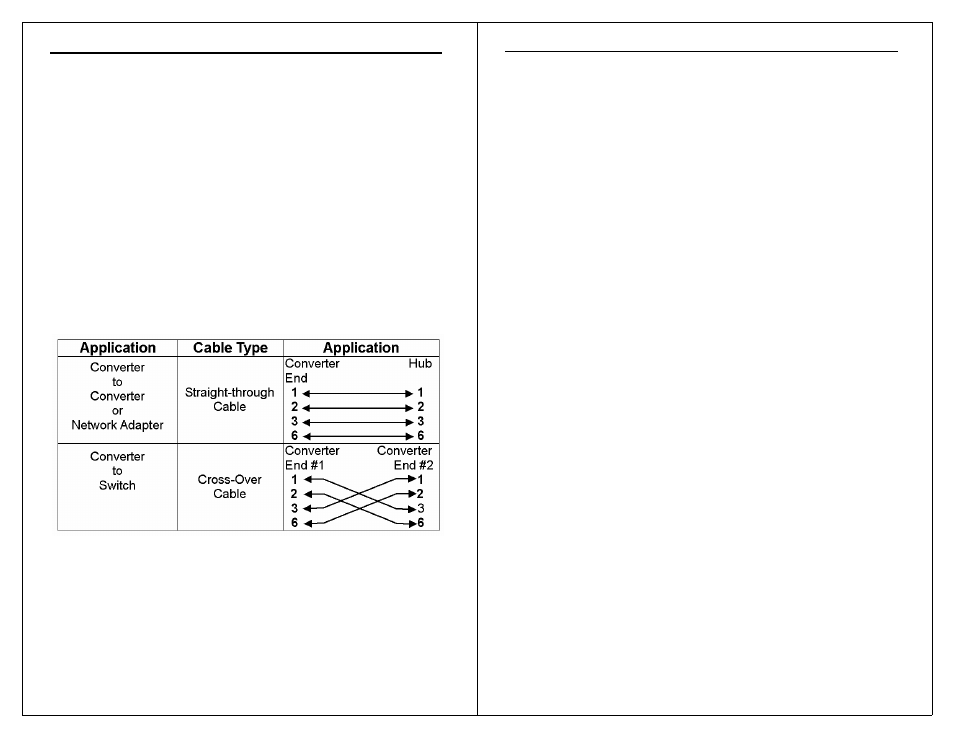

The pin assignments are as follows:
Pin 1 TD+ Pair 2 White/Orange
Pin 2 TD- Pair 2 Orange/White
Pin 3 RX+ Pair 3 White/Green
Pin 4 N/A Pair 1 Blue/White
Pin 5 N/A Pair 1 White/Blue
Pin 6 RX- Pair 3 Green/White
Pin 7 N/A Pair 4 Brown/White
Pin 8 N/A Pair 4 Brown/White
Note: Automatic MDI/MDI-X selection on RJ-45 port
Enhanced 10/100Base-TX to 100Base-FX Converter
- 24 -
Appendix C
Mini Converter Chassis
The Chassis is developed to accommodate just one
media converter. The Chassis provides AC or DC
power protection for converter units. Now, network
designers can plan their Ethernet, Fast Ethernet, ATM,
or Gigabit networks without having to worry about the
power source. Furthermore, its unique sizes allows it
to be installed in locations where space is limited.
Features
•
Simple and easy to install
•
Adds fiber connectivity to otherwise copper based
networks
•
Supports 10/100/1000Base, copper, fiber,
single/multi-mode, ST, SC, MT-RJ, VF-45, LC,
WDM connector converters
•
Supports one media converter
•
Suitable for all size of networks in all locations
•
Provides internal AC and DC switching power
supply
•
Made from high quality durable steel
•
Optional external redundant power adapter
Affixing Brackets
We have supplied 2 special brackets that easily
attaches to the Converter. This allows for the secure
placement of the Converter into the Chassis. It also
