Lippert Components In Wall Slide-Out System User Manual

Page 9

*************Do not move the rv with the motors disengaged.*************

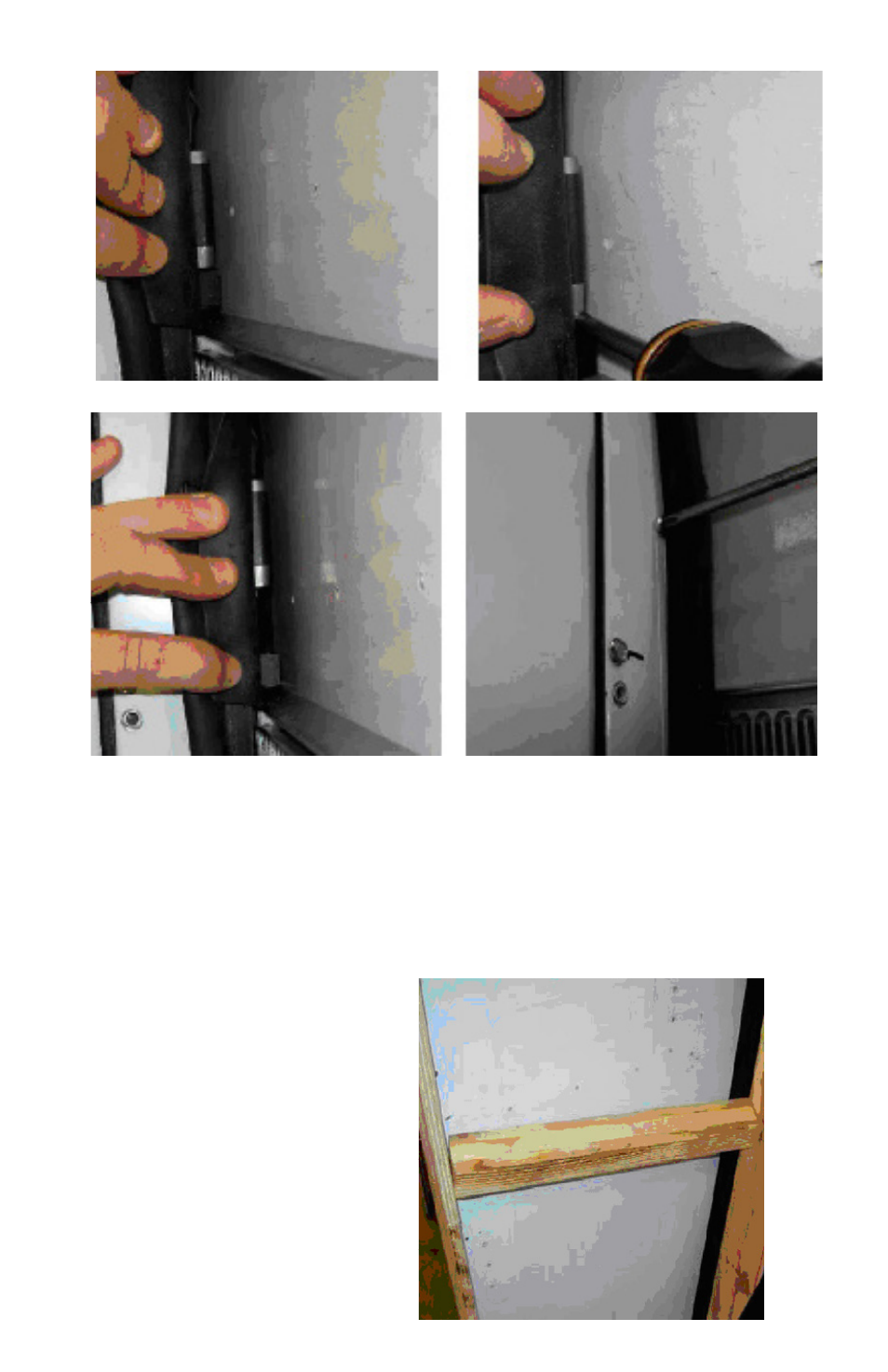

5. If the rv needs to be moved, a travel lock will need to be made as follows: With the room closed,

cut a board 1 inch longer in length than the distance between the interior stop and the wall. Wedge

this board tightly between the wall and stop to lock 1 side of the room. Cut another board to fit the

other side of the room and wedge into place. This should lock the room in the retracted position,

allowing the rv to be moved.

Alternately several ratchet straps may be used,

wrapping completely around the rv, and room,

then pulled tight. Depending on the size of the

room, straps with a 500 to 1000 pound capacity

will be required.

**********Do not move the rv unless the motors are plugged in.*************

3. Lift the motor approximately 1 inch, tighten the motor retention screw to hold the motor in it’s

raised position.

4. The motor is now disengaged. Repeat these steps on the other side of the room. The room

should move freely, and can be pushed in or out as desired.
