Lippert Components In Wall Slide-Out System User Manual

Page 14

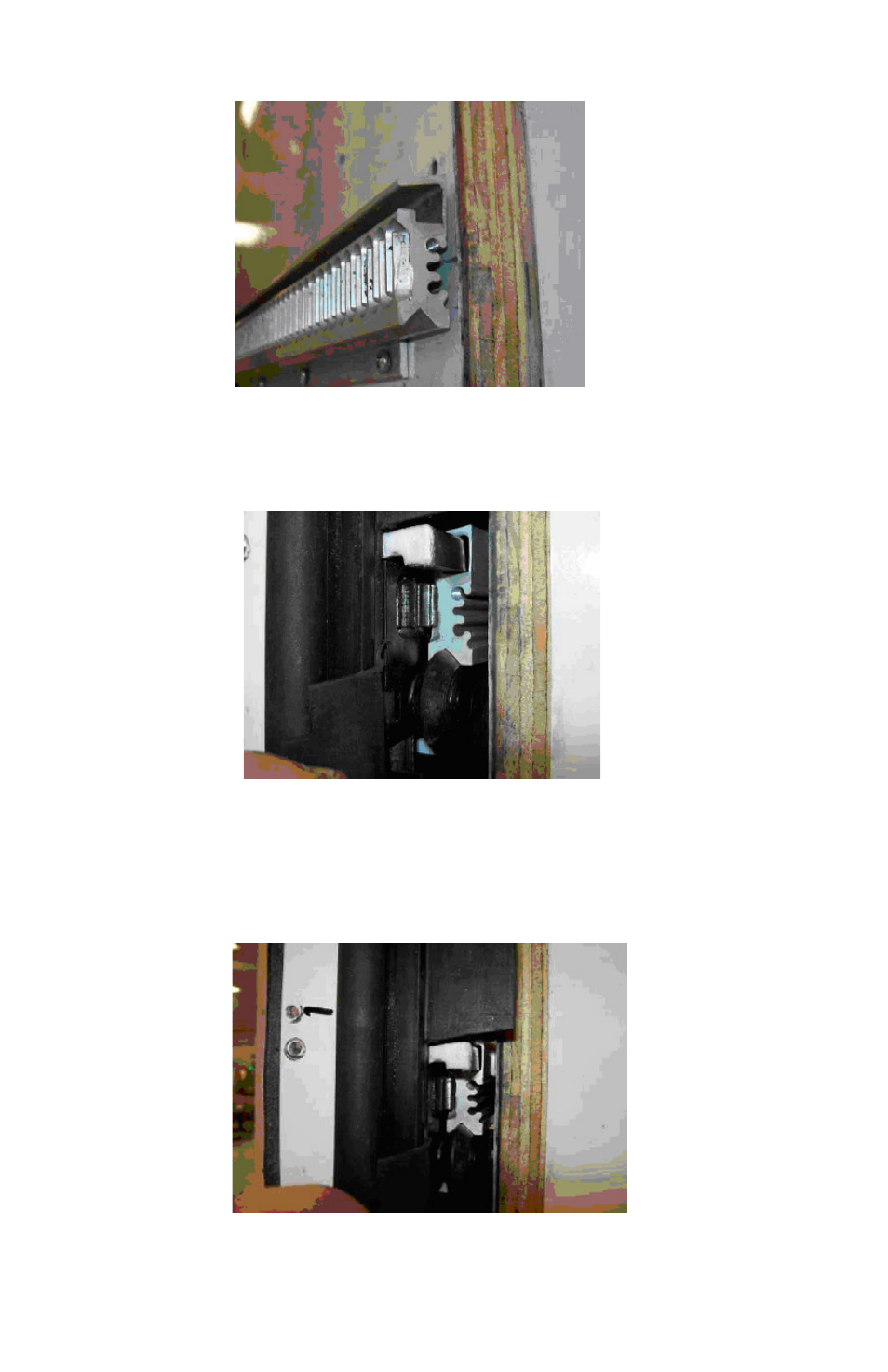

The hook slides into a hook shaped slot on the top edge of the racks. The v-roller fits into a v shaped

grove on the bottom edge of the rack. The gear meshes with the rack teeth on the outside face of the

rack.

Start the top hook on the side column into the hooked slot on the top gear rack on the side of the

room. Start the bottom hook on the side column into the hooked slot on the bottom gear rack on the

side of the room. Slide both top and bottom in until the 1

gear tooth is just touching the 1

tooth on

the end of both the top and bottom racks. The v-rollers should be close to touching the v shaped slot

in the bottom of both racks.

5. Push evenly on both the top and bottom of the side column, engaging the gear teeth into the rack

teeth of both top and bottom racks at the same time. Continue to slide the side column onto the

racks until the weatherstrip on the front face of the side column is flush with the end of the racks.

Both top and bottom racks should come flush at the same time. If the racks are 1 tooth out of time

with each other there will be a 3/16 difference in the end position of the racks.If both top and

bottom are flush, continue. If both top and bottom are not flush, then pull the side column out to

disengage the gears and repeat until both top and bottom gear racks are flush at the same time.

6. Push the side column along the racks until it is close to the outside face of the wall.

7. Follow steps 8 through 13 for motor replacement (Motor replacement 2-3).
