Lippert Components In Wall Slide-Out System User Manual

Page 2

1-1A CONTROLLER VERSIONS C1 & C2

New control configurations for version C1 & C2, see below:

1-1A.1 CONFIGURATION

1. Press button 2x and hold 3rd for 5 seconds to enter manual mode.

2. Press button 4x and hold 5

for 5 seconds to enter stall threshold calibration mode.

3. Press button 6x and hold 7

for 5 seconds to Override mode.

1-1A.2 MANUAL MODE

1. Green Led blinks once, wall switch controls motor 1.

2. Press button, Green Led blinks twice, wall switch controls motor 2.

3. Press button, Green Led solid, wall switch controls motor 1 and 2.

4. Press and hold button to exit.

1-1A.3 STALL THRESHOLD CALIBRATION MODE

1. Use Pot to turn stall threshold up/down.

2. Press button to save and exit.

1-1A.4 OVERRIDE MODE

1. Use the extend/retract switch to move both motors in/out all pulse counting, and stall are

disabled in this mode.

2. Over-current and short circuit detection are still active to help prevent damage to the board.

3. To exit the mode, push and hold the push button switch until the LEDs begin to blink

simultaneously.
Exiting the override mode resets the motor positions.

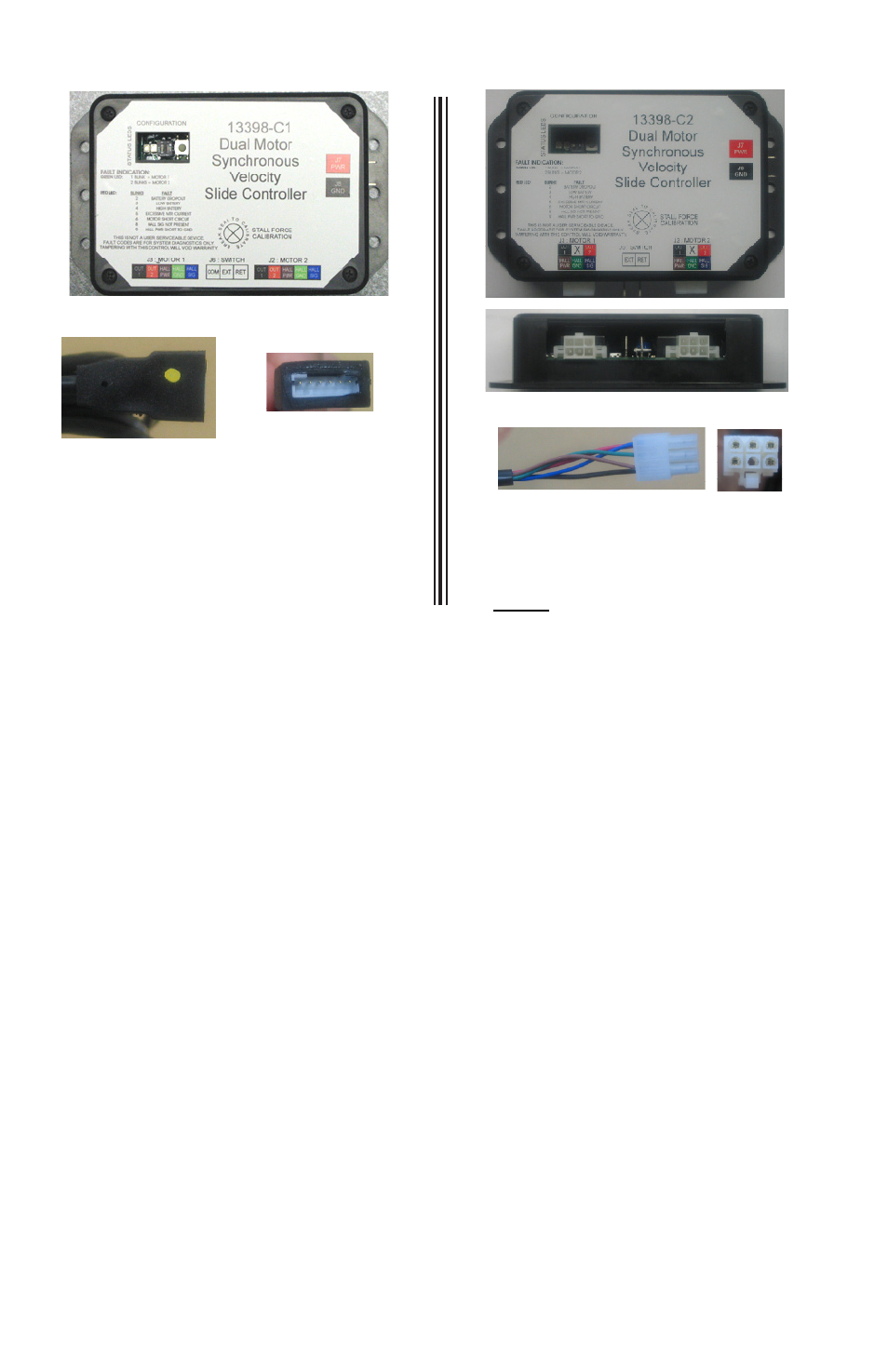

I. CONTROLS - VERSIONS C1 & C2

Version C1 maintains the same motor

harness connector to the controller as

in version C. However, the connector at

the motor has been insulated with a new

molded shield to protect against external

damage.

Version C2 motor harnesses have molex

connectors at the controller and the mold-

ed connector at the motor end.

Wire colors

match with color codes on control board.

NOTE: It doesn’t matter which motor is 1

or 2.
