Lippert Components In Wall Slide-Out System User Manual
Page 3

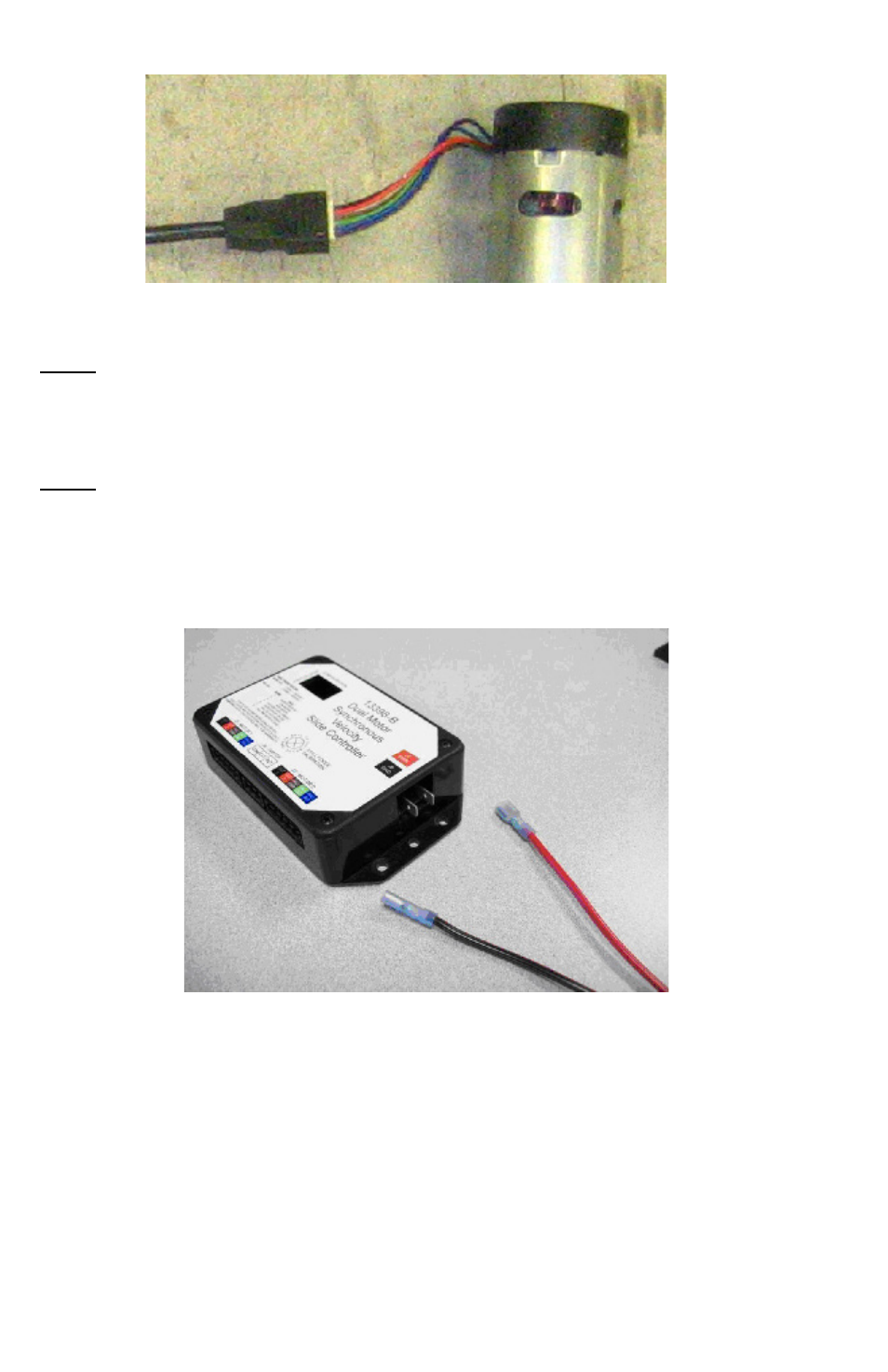

1-2 Motor wiring harness connections
NOTE: Ribs on motor connector line up with notch in side of male connector on wiring harness.
Color codes on wires also match (black to black, red to red, etc.).
1-3 Extend and retract switch connections
NOTE: Direction control switch (customer supplied)
Common connection on control board goes to common connection on extend and retract switch. The
extend and retract connections on the control board go to the extend and retract terminals on the
switch. Power is supplied to switch from any nearby 12VDC power source.
3
Correctly connected motor
1-4 Power to board
¼ spade terminals are provided for power into the board. (Voltage range 8vdc to 18vdc).12 vdc is
recommended. Lower voltages reduce available power to room slide. 10ga wire is the minimum size
recommended.
1-5 Board overview
