Part # 175176

CAPACITY - 12,000 lb.

STROKE - 15 in.

H - 19 1/2 in.

D - 2 3/8 in.

9” SHOE-STANDARD

12” SHOE-OPTION - 117238

FOUND ON FR GT UNITS

359WHREG AND 391

ALL 4 JACKS ARE 12K.

Fig. 1

Fig. 3

Fig. 4

Fig. 2

Part #195860

CAPACITY - 8,000 lb.

STROKE - 15 in.

BORE - 2 in.

H - 21 3/16 in.

ROD DIA. - 1.50 in.

9” SHOE-STANDARD

12” SHOE-OPTION - 117238

Part # 236560

CAPACITY - 14,000 lb.

STROKE - 15.13 in.

BORE - 2 1/2 in.

H - 21 5/8 in.

ROD DIA. - 1.875 in.

9” FOOT PAD-STANDARD

12” FOOT PAD-OPTION - 117238

Part # 113314

CAPACITY - 7,000 lb.

STROKE - 13 3/4 in.

H - 18 1/4 in.

D - 2 3/8 in.

A - 2 1/2 in.

9” SHOE-STANDARD

12” SHOE-OPTION - 117238

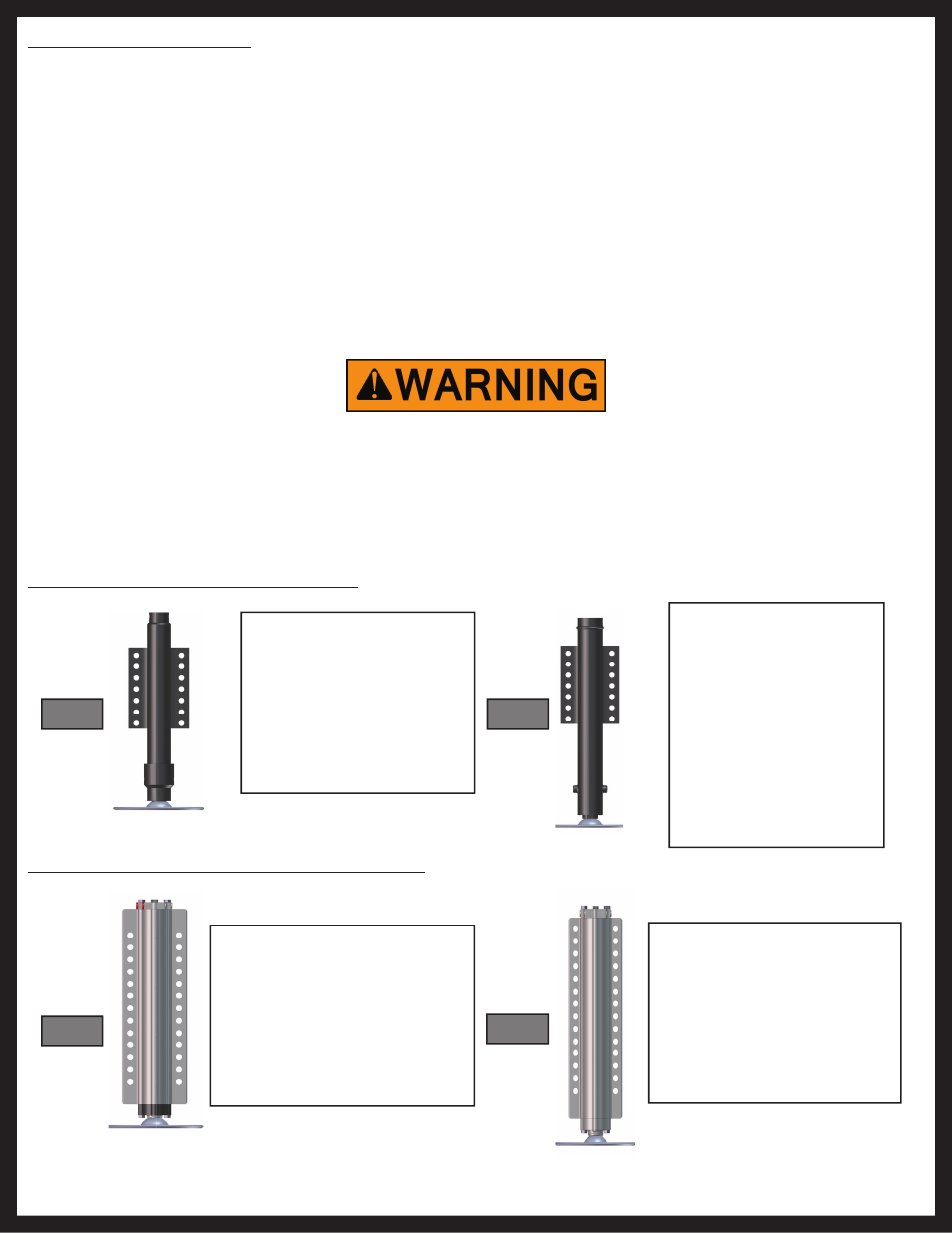

LCI Hydraulic Jacks

Your coach should be supported at both front and rear axles with jack stands before working

underneath. Failure to do so may result in death or personal injury.

Component Description

The Lippert Electronic/Hydraulic Leveling and Slideout System consists of the following major components:
Lippert jacks are rated at a lifting capacity appropriate for your coach. Each jack has a 9” diameter (63.5 square inch)

shoe on a ball swivel for maximum surface contact on all surfaces. (12” dia. - 113 sq. in. shoe also available).
Each jack is powered from a central 12VDC motor/pump assembly, which also includes the hydraulic oil reservoir

tank, control valve manifold, and solenoid valves.
The Lippert Electronic/Hydraulic Leveling and Slideout System is controlled electronically from the driver’s seat

of the coach. The control panel is mounted in the dash. The system can be operated in a manual mode or a fully

automatic mode.
The slideouts on this system are actuated by hydraulic cylinders integrated into the box of the slideout frames.

Some rooms will have one cylinder per room, others will have two. Consult the manufacturer of the coach to find

out the cylinder configuration on your unit.

Aluminum Jacks - Unidirectional Power Unit

Steel Jacks - Bi-rotational Power Unit
