4.Control panel

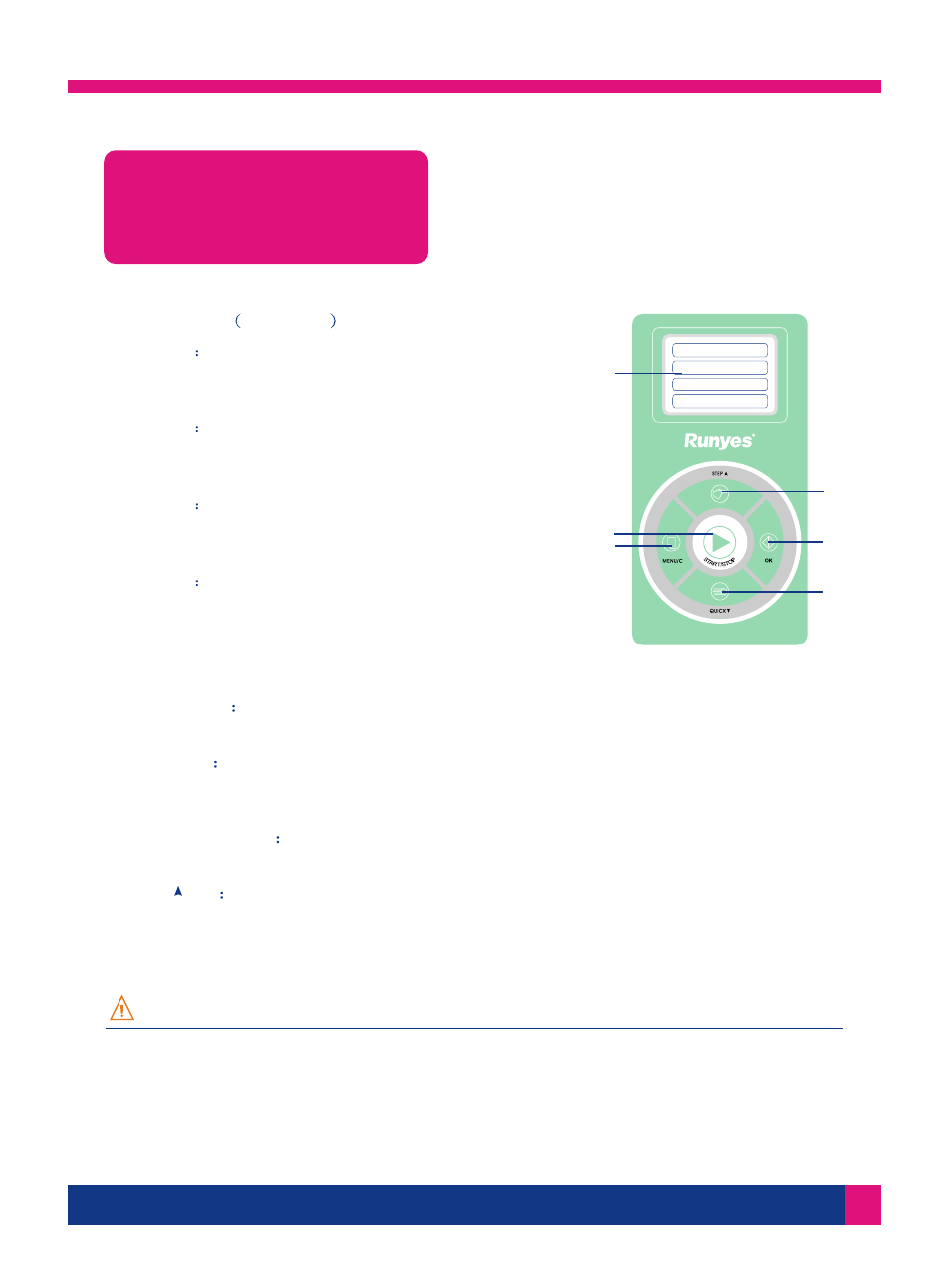

1. LCD screen Figure 4-1
Letter row 1 Working state, show temperature and pressure data
Menu state, show menu row or page layout name
Ready to work state: show sterilizer cycle name
Letter row Working state, show pressure curve
Menu state, show menu row
Ready to work state, show selected cycle parameter
2
Letter row Working state, show pressure curve
Menu state, show menu row
Ready to work state, show selected cycle parameter
3
Letter row Show key help information 4
2. Menu/ C key
Menu/Cancel key. Press the key to enter menu then the device ready
to work. Menu state means cancel key, Working state means exit key.
3. Confirm key
Menu state means OK, others keys means invalidation.
5. START/STOP key
Start key. It will start sterilization cycle then it display key information
4. Quick key
Fast/Down key. It means quick sterilization cycle then the device ready to work. It means down key then
the device at menu state.
6.STEP Key
Last cycle/ Up key. Last cycle is validation any time. It means up key then the device at menu state.
Fig4-1
1
5
2
3
6
4
Letter row 1
Letter row 2
Letter row 3
Letter row 4
