ENGLISH
Chapter 4: Using the DVR
DVR User’s Manual
45
7
After all settings are complete, click Apply.
« TIP »
• To copy the current settings to other days, select the day, then click Copy.
• To copy the current settings to other channels, select the channel, then click Copy.
8
When data saving is complete, click OK.

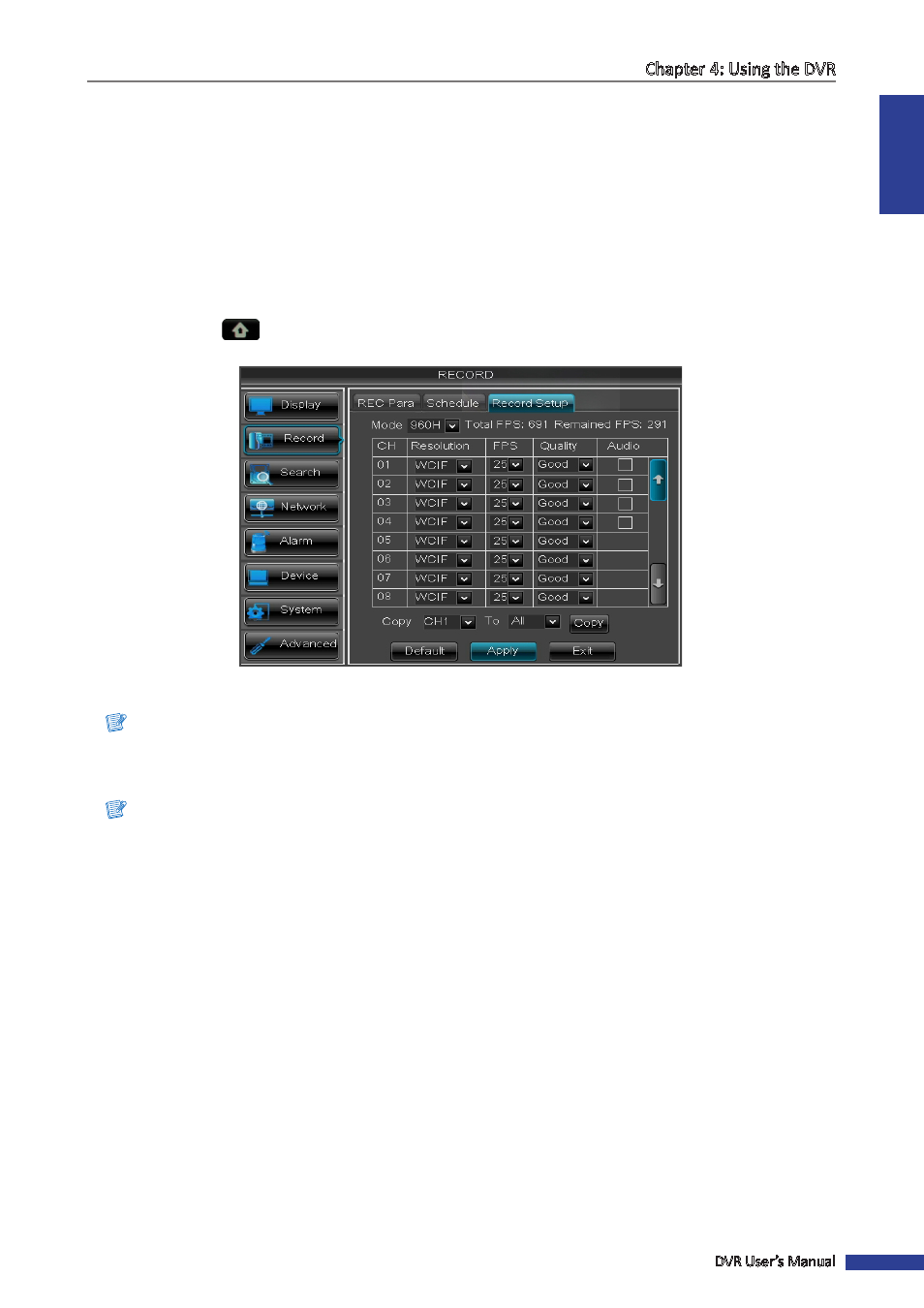

4.2.3 Record Setup
1
In preview mode, right-click on the mouse to display the Pop-up menu.
2
Select Main Menu > RECORD, then select the Record Setup tab. The Framerate settings are displayed on a
table.
3
On Mode, select the type of record mode. Options are: D1 or 960H.
Note:
If the record mode setting is set to 960H, it is recommended to use a 600 TVL or higher resolution camera.
4
Select the channel and adjust the corresponding settings such as Resolution, FPS, and Quality.
Note:
If the frame rate set is over the system limitation, a message is displayed on the screen.
5
Check the Audio box to enable audio.
6
After all settings are complete, click Apply.
7
When data saving is complete, click OK.
« TIP »
To copy the record setup setting to other channels, select the channel(s) in Copy To, then click Copy.
