3.3 IntelliProx Connections
The reader is connected to TB1, pins 1 through 6.
Connecting to the IntelliProx – TB1

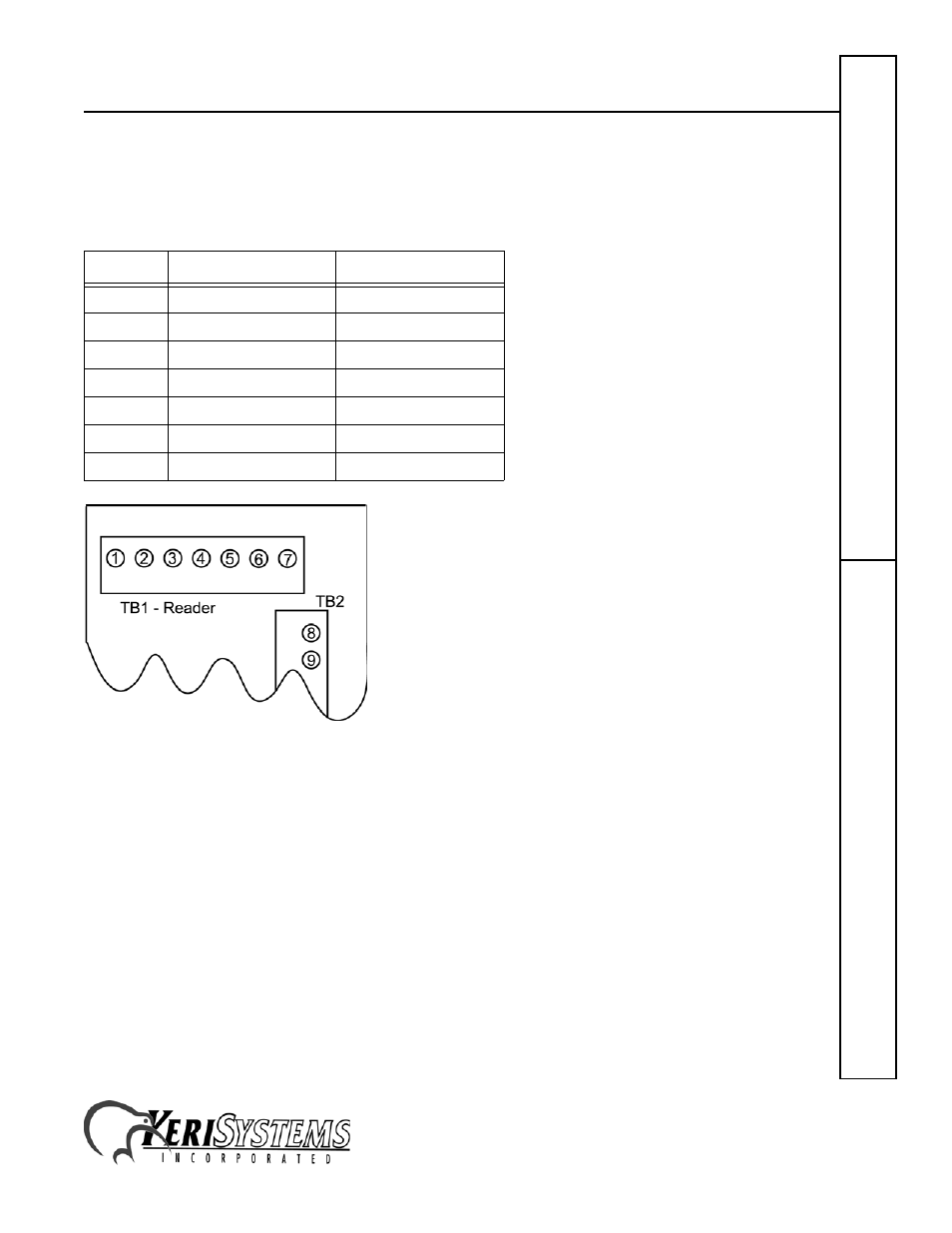

Figure 4: IntelliProx Connections
Pin # Function Wire Color
1 Reader Antenna Blue
2 Beeper Green
3 Greeen LED Brown
4 Red LED White
5 Reader Power Red
6 Reader Ground Black
6 Shield Silver
