PXL-500 Tiger Controller
Installation Guide
Page 2 of 4 P/N: 01530-001 Rev. B

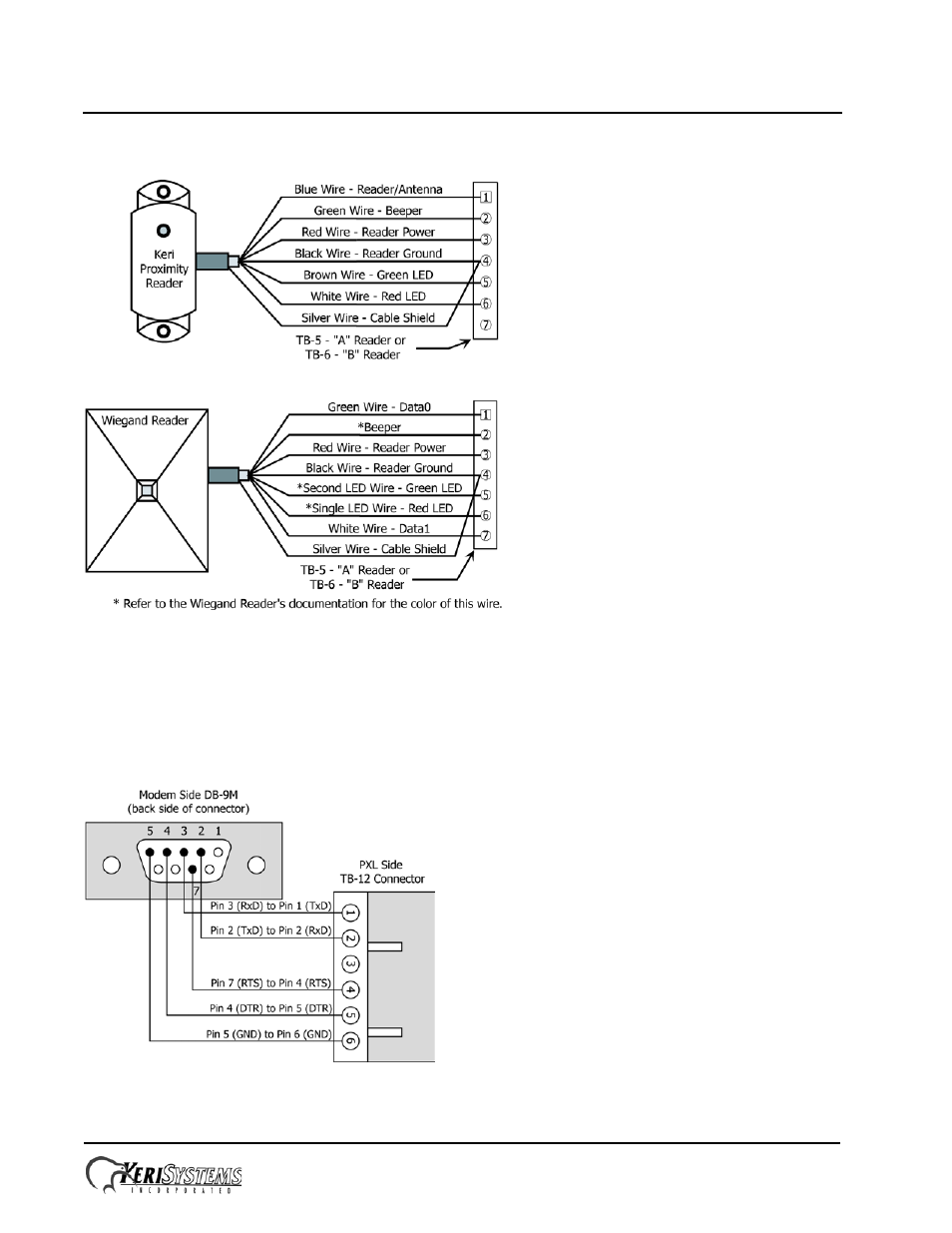

2.0 Reader Connection
Figure 2
3.0 Modem/DB-9M to PXL/TB-12 Serial Port Connection
The Keri Systems part number for this cable is KDP-929M. To use the KDP-929M, cut off one end of the cable and wire
it to the TB-12 connector as shown in Figure 3.
Figure 3: Modem/DB-9M to PXL/TB-12 Serial Port Connection
