K-Edge K13-002 User Manual
Page 4
6.
Check for clearance between the chainring bolts and the K-EDGE PRO CHAIN CATCHER. (Some chainring bolts stick
out further than others.)
7.

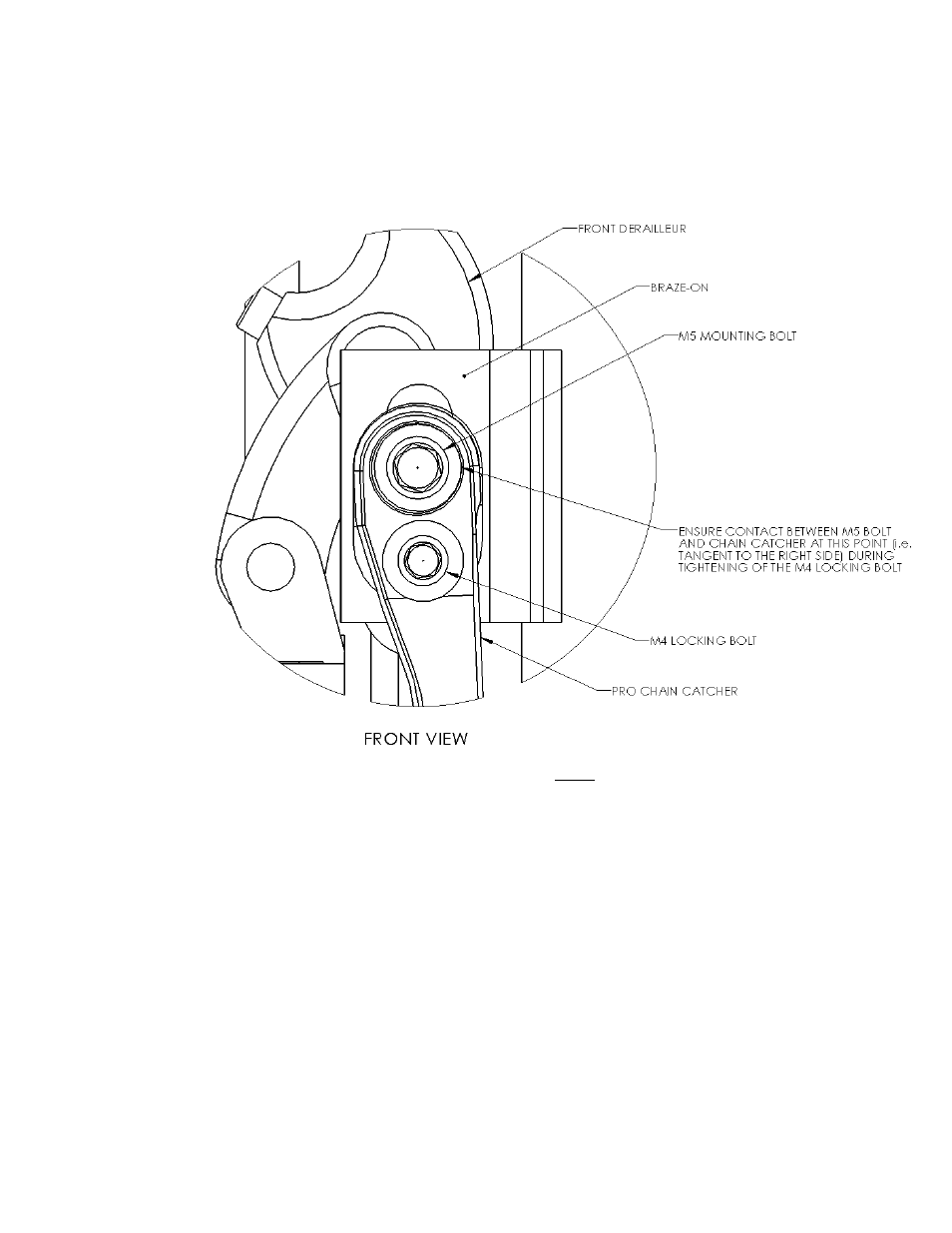

Ensure contact of the M5 MOUNTING BOLT is tangent to the right side of the hole that it is in on the K-EDGE PRO
CHAIN CATCHER. See image below:
8.
Carefully torque the M4 LOCKING BOLT using a 3mm Allen socket to 4-5N-m. Recheck for clearance between CHAIN
and K-EDGE PRO CHAIN CATCHER.
