Parts Included:
 K13-002:

1x K-Edge Pro Chain Catcher
 1x M5 x 19.5mm stainless steel cone head SHCS (For Campagnolo (except EPS) and SRAM)
 1x M5 x 17mm stainless steel cone head SHCS for (For Shimano)
 1x M4 x 9.5mm stainless steel cone head SHCS with threadlock pre-applied
 1x Pro Radius washer
Tools/Items Required:
 Metric Allen Set (3mm and 4mm for mounting/locking bolts)
 Torque wrench
Installation Steps:
1. Position the CHAIN onto the SMALLEST CHAINRING on the crankset and the LARGEST COG on the cassette.

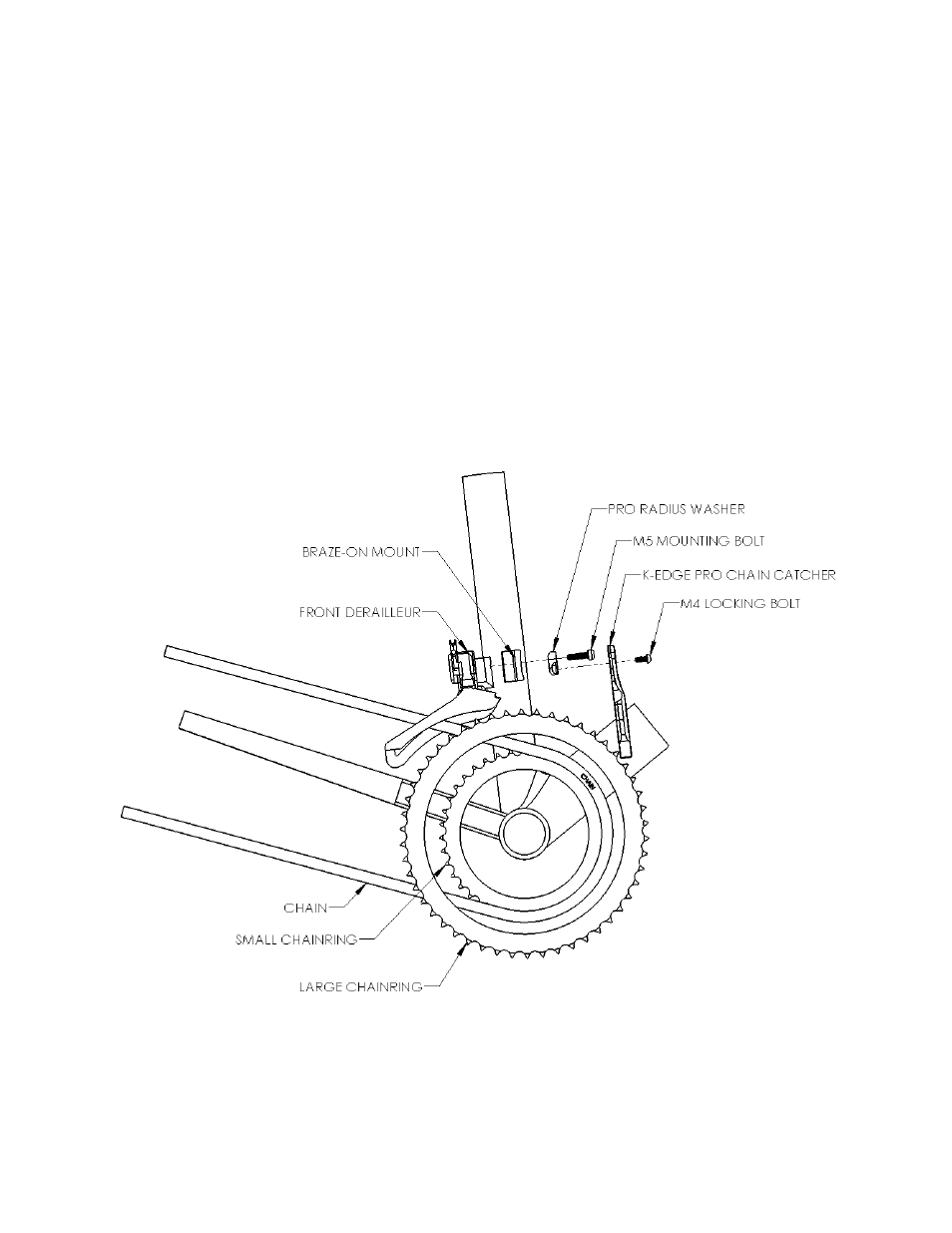

2. Thread the appropriate M5 MOUNTING BOLT through the PRO RADIUS WASHER and BRAZE-ON MOUNT and into
the FRONT DERAILLEUR, adjust and tighten according to the manufacturer's recommendations. See Image below:
