K-Edge K13-002 User Manual

Page 3

background image


3.

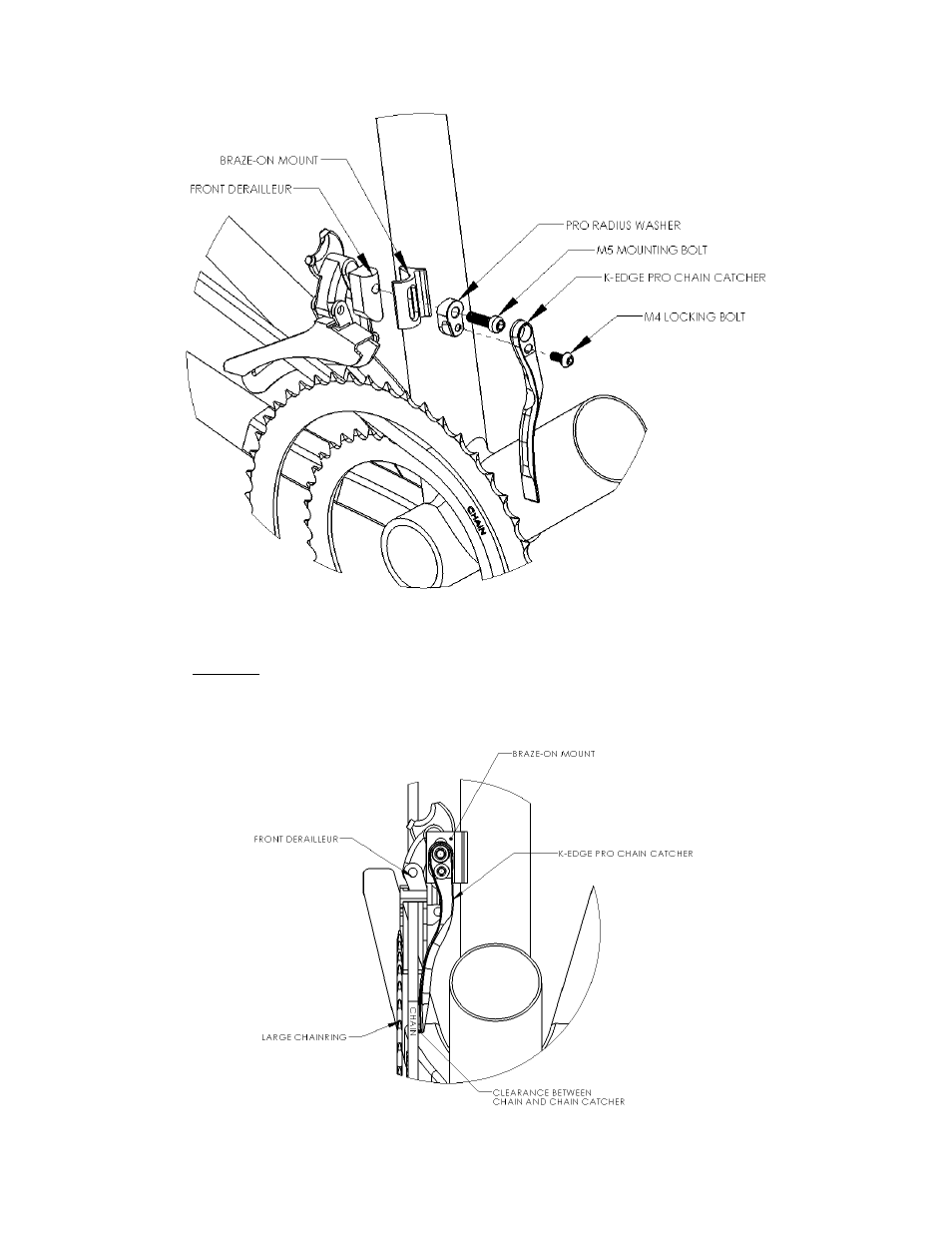

Slide the K-EDGE PRO CHAIN CATCHER over the installed M5 MOUNTING BOLT.

4.

Install the M4 LOCKING BOLT through the K-EDGE PRO CHAIN CATCHER and into the PRO RADIUS WASHER,
lightly tighten allowing for adjustment.

5.

Position the K-EDGE PRO CHAIN CATCHER as close to the CHAIN as possible without contacting (Approximately
0.5mm). See image below:
