Vermont Casting NVC43 - Manual (Page 6)

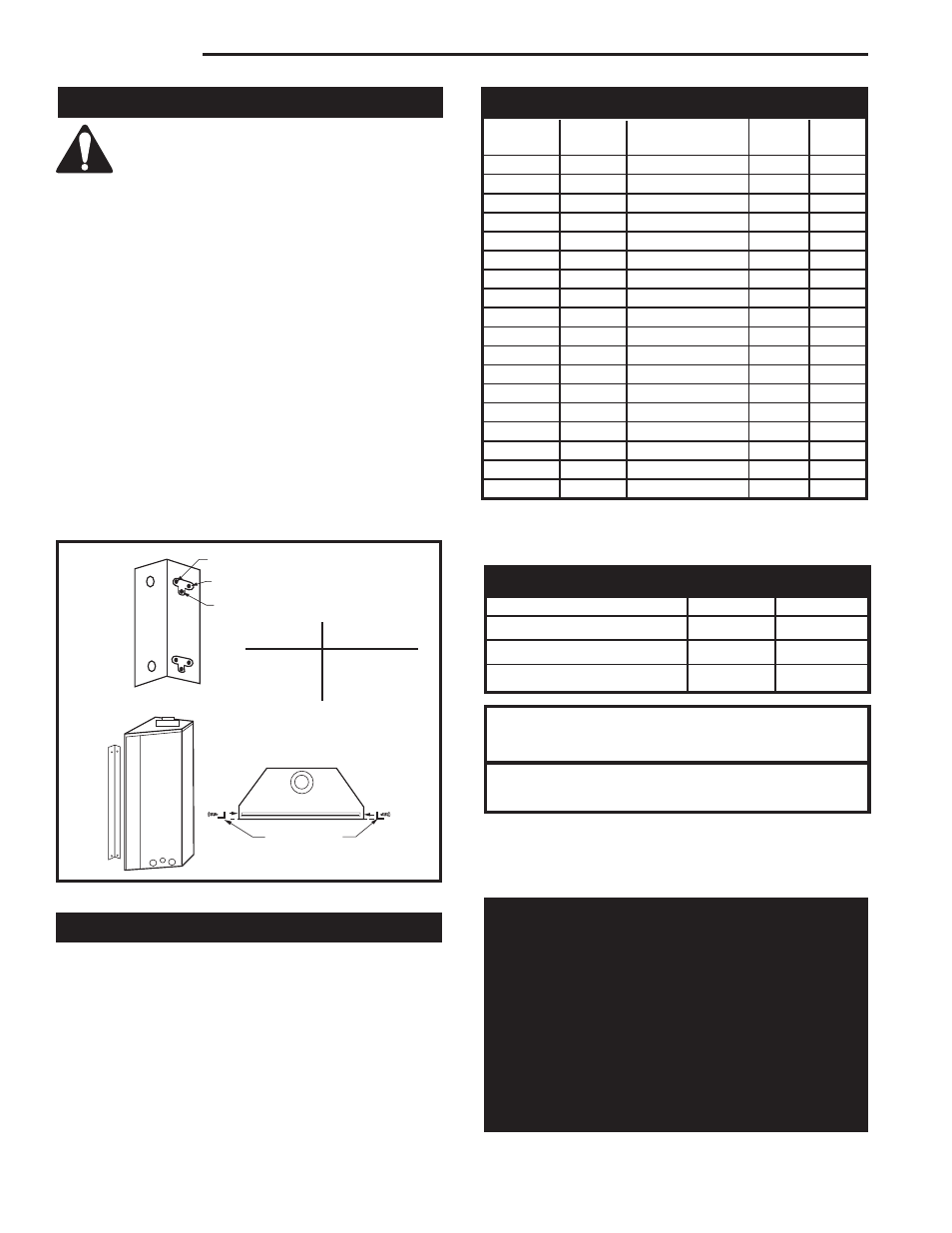

6
NVC Series B-Vent
20000194
Gas Specifications
1. Choose the unit location.
2. Place the unit into position and secure it to the floor
with 1¹⁄₂” (38mm) screws, or nails. The holes to
secure the unit to floor are located just behind the
access door grille on the left and right side of the
unit.
3. Frame in the fireplace with a header across the top.
It is important to allow for the finished wall face when
setting the depth of the frame.
4. Attach the fireplace to the frame using the adjustable
frame drywall strips (located behind the access door
for shipping). Preset the depth to suit the facing
material of the wall. The strips are adjustable to 1/2”
(13 mm), 5/8” (16 mm), or 3/4” (19 mm). (Fig. 4)
5. Screw through the slotted holes in the drywall strip
and into pre-drilled holes in fireplace side. Measure
from face of fireplace to the face of the drywall strip
to confirm the final depth.
Check fireplace to make sure it is levelled
and properly positioned.
Framing and Finishing
Final Finishing
Noncombustible materials such as brick or tile may be
extended over the edges of the face of the appliance.
DO NOT cover the window frame assembly, any
vent, louvre top assembly or louvre bottom assem-
bly.
If a Trim Kit is going to be installed on the fireplace, the
brick or tile will have to be installed flush with the edges
of the appliance.
NVC36 / NVC39 / NVC43
CERTIFIED To
ANSI Z21.50b-2005 / CSA 2.22b-2005
Vented Gas Fireplace Heaters
High Elevations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to
4,500 feet (1,370m) above sea level.
For elevations above 4,500 feet (1,370m) in USA,
installations must be in accordance with the
current ANSI Z223.1/NFPA 54 and/or local codes
having jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations at
elevations above 4,500 feet (1,370m).
Natural LP
Minimum Inlet Pressure 5.5" w.c. 11.0" w.c.
Maximum Inlet Pressure 14.0" w.c. 14." w.c.
Manifold Pressure 3.5" w.c. 10.0" w.c.
Gas Inlet & Manifold Pressures
FP1023
side nailing flange
1/27/00 djt
A
B
C
Fig. 4 Adjustable drywall strip (nailing flanges).
Adjustable Drywall Strip
(Nailing Flange)
Screw Drywall
Position Depths
A 1/2” / 13 mm
B 5/8” / 16 mm
C 3/4” / 19 mm
FP1023
Adjustable
1/2”, 5/8” &
3/4” Spacing
Max. Min.
Model Fuel Gas Control Input Input
NVC36RN Natural Millivolt Hi/Lo 25,000 17,500
NVC36RP Propane Millivolt Hi/Lo 25,000 18,750
NVC36VN Natural 24V Hi/Lo* 25,000 17,500
NVC36NP Propane 24V Hi/Lo* 25,000 18,750
NVC36EN Natural Electronic Ignition 25,000 17,500
NVC36EP Propane Electronic Ignition 25,000 18,750
NVC39RN Natural
Millivolt Hi/Lo 30,000 21,000
NVC39RP Propane Millivolt Hi/Lo 30,000 22,500
NVC39VN Natural 24V Hi/Lo* 30,000 21,000
NVC39VP Propane 24V Hi/Lo* 30,000 22,500
NVC39EN Natural Electronic Ignition 30,000 21,000
NVC39EP Propane Electronic Ignition 30,000 22,500
NVC43RN Natural
Millivolt Hi/Lo 33,000 23,100
NVC43RP Propane Millivolt Hi/Lo 33,000 24,750
NVC43VN Natural 24V Hi/Lo* 33,000 23,100
NVC43VP Propane 24V Hi/Lo* 33,000 24,750
NVC43EN Natural Electronic Ignition 33,000 23,100
NVC43EP Propane Electronic Ignition 33,000 24,750
Units: B32H00, B32I00, B33A00, B33B00, B32J00,
B32K00, C32H00, C32I00, C32A00, C32B00, C32J00,
C32K00, D32H00, D32I00, D33A00, D33B00, D32J00,
D32K00
NOTE: VN and VP models are for use the PVS-1 Power
Vent System.
