Arched door front
2/27/02 djt
FP1196

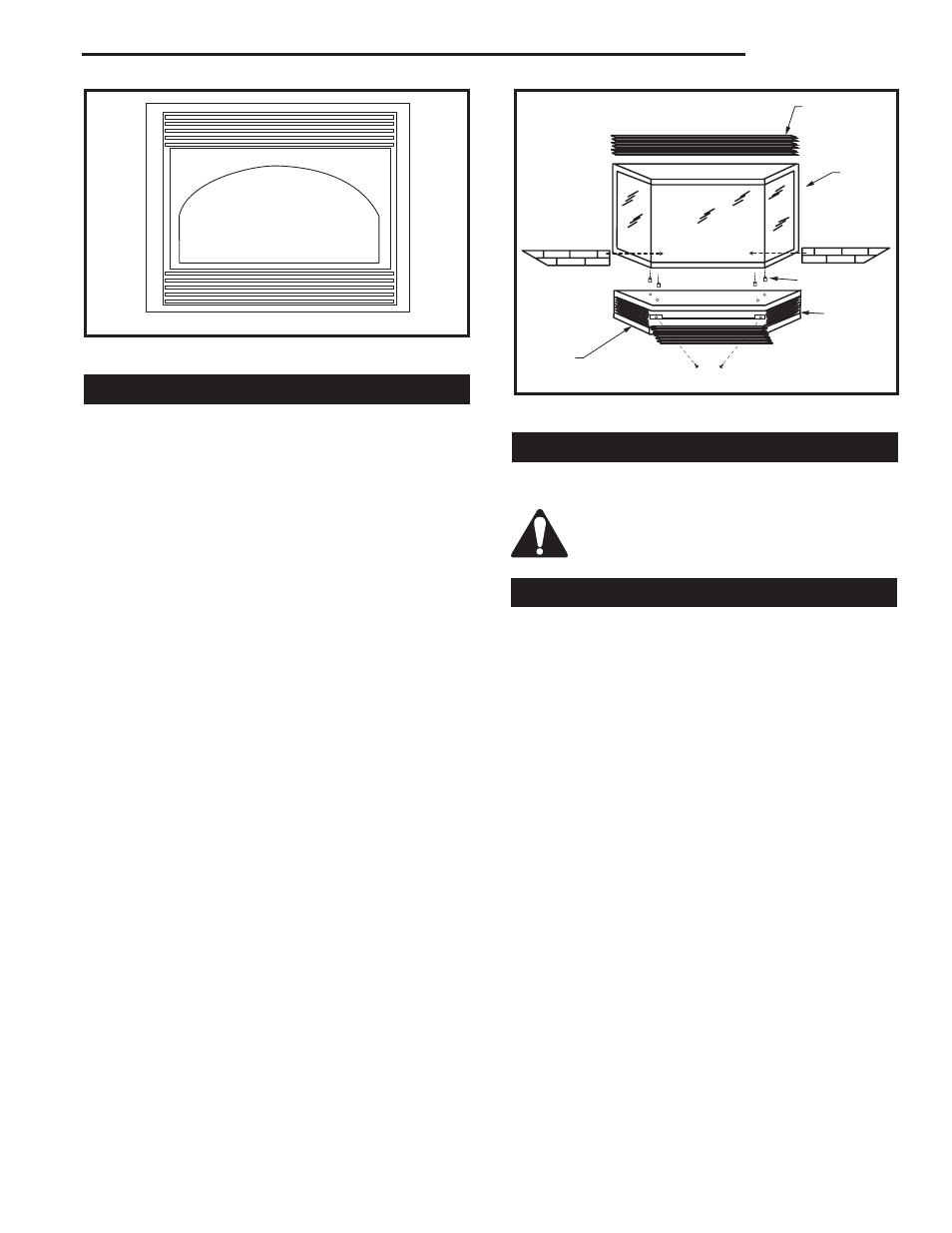

Fig. 28 Arched door front in place.
EB-1 Electrical Box
Standard on electronically controlled models, the EB-1
is also available for other fireplaces.
Installation should be completed by a
qualified service person.
Decorative Frame Trims
A selection of decorative frame trim kits are available
for mounting around the outside of the appliance to en-
hance its visual effect on the room. Installation instruc-
tions for each decorative frame trim are included with
the frame trim kit. Contact your authorized distributor for
details of the trim kits and ordering information for the
trim kits applicable to this model appliance.
Decorative Bay Windows
When fitting the Bay Window Kits, the original
front frame/glass assembly MUST remain in place.
The Bay Window kit is fitted over the existing front
glass.
Installation
1. Remove the existing louvre assembly bottom com-
plete with the hinges.
2. Remove the louvre assembly top.
3. Assemble the Bay Window Kit according to the
instructions supplied with the kit.
4. Place the 2 pieces of ceramic refractory along the
base of the bay window. (Fig. 29)
5. Hang the Bay Window assembly over the existing
window frame assembly.
6. Reinstall the louvre assembly top.
7. Do not remove the existing window frame assembly.
Louvre As-
sembly Top
Bay
Window
Frame
Spacers
Louvre
Assembly
Bottom
Screws
Bottom
Brass
Trim
Ceramic
Refractory
Ceramic
Refractory
FP1195
Fig. 29 Bay window.
