4

NVC Series B-Vent

20000194

A

D

N

M

N

A

B

S

G

H

J

Gas Line

Access - 2" Dia.

Gas Line

Access

2" Dia.

Finished Wall

Thickness

6"

Flue

Rough

Opening

Height

Rough Opening Width

Rough

Opening

Depth

C

Electrical Cable

Knock-out - 1" Dia.

E

L

F

K

P

Q

R

Electrical Box

Knock-out - 2" Dia.

Electrical

Cable

Knock-out

1" Dia.

CL

Outside

Air Access

(See inset A)

T

�������
��������

U V

FP378

INSET A

5���"

7���"

3���"

10"

10" = 254mm

7���" = 187mm

5���" = 149mm

3���" = 92mm

Fireplace Dimensions

Do not install
header until
unit is in place.

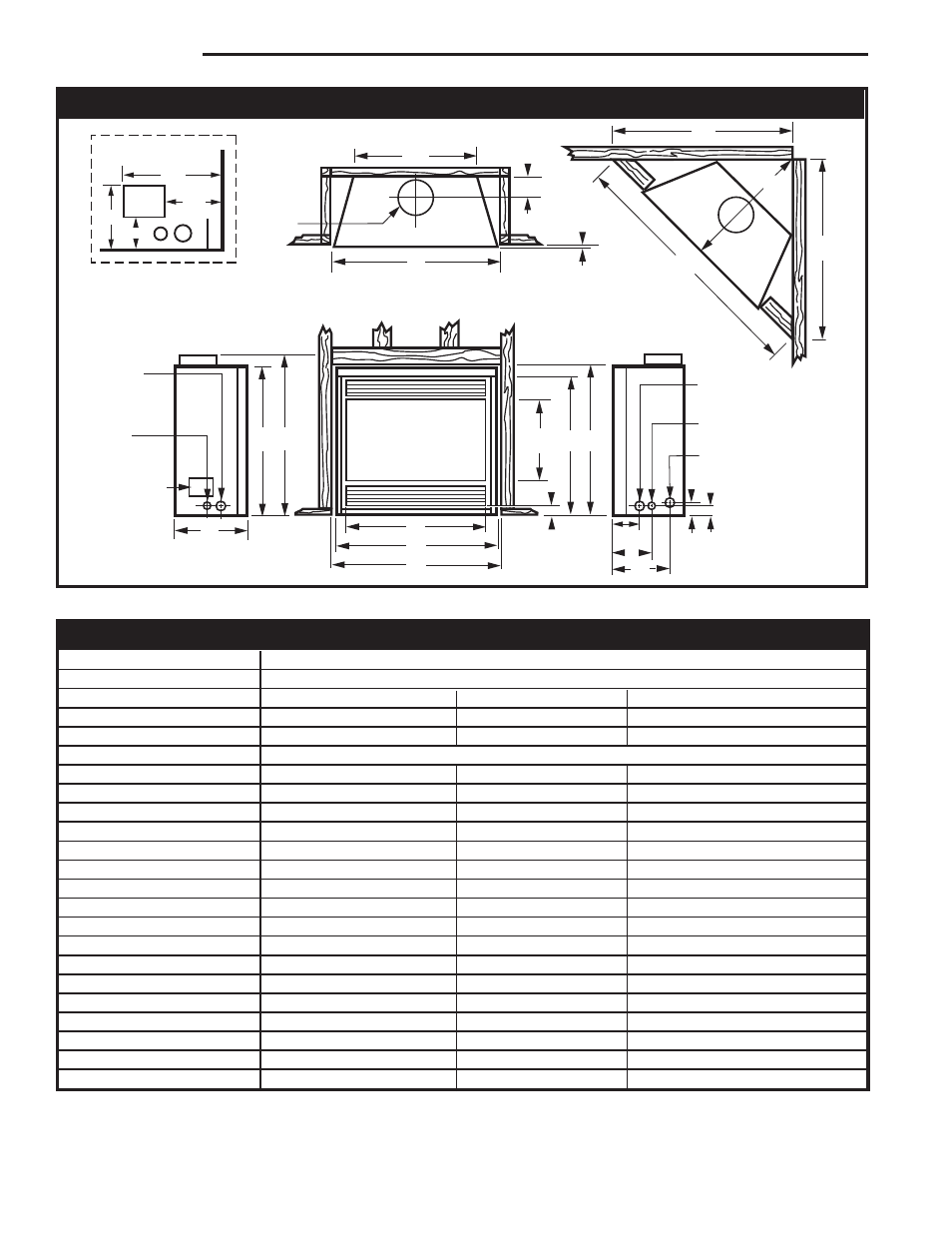

Fig. 1 Fireplace specifications and framing dimensions.

Ref.

NVC36

NVC39

NVC43

Framing Dimensions

A

36¹⁄₂" (927 mm)

39¹⁄₂" (1003 mm)

43¹⁄₂" (1105 mm)

B

34³⁄₄" (883 mm)

35"

(889 mm)

37¹⁄₂" (953 mm)

C

14¹⁄₂" (362 mm)

16¹⁄₂" (419 mm)

16¹⁄₂" (419 mm)

Appliance Dimensions

D

36"

(914 mm)

39"

(991 mm)

43"

(1092 mm)

E

21"

(533 mm)

21"

(533 mm)

23¹⁄₂" (597 mm)

F

1"

(25 mm)

1"

(25 mm)

1"

(25 mm)

G

5¹⁄₂"

(140 mm)

6⁵⁄₁₆" (160 mm)

5¹⁄₂"

(140 mm)

H

7³⁄₄"

(197 mm)

8²¹⁄₃₂" (220 mm)

8"

(203 mm)

J

2"

(51 mm)

2"

(51 mm)

2"

(51 mm)

K

20"

(508 mm)

24"

(610 mm)

31"

(787 mm)

L

6"

(152 mm)

6¹⁄₂" (165 mm)

5³⁄₄"

(146 mm)

M

47⁵⁄₈" (1210 mm)

56"

(1422 mm)

62⁵⁄₈" (1591 mm)

N

33⁵⁄₈" (854 mm)

40"

(1016 mm)

44¹⁄₄" (1124 mm)

P

24¹⁄₂" (622 mm)

28⁹⁄₁₆" (726 mm)

32"

(813 mm)

Q

10³⁄₄" (273 mm)

12¹³⁄₃₂" (315 mm)

12"

(305 mm)

R

4"

(102 mm)

4"

(102 mm)

4"

(102 mm)

S

32³⁄₄" (832 mm)

32³⁄₄" (832 mm)

35¹⁄₂" (902 mm)

T

33"

(838 mm)

36"

(914 mm)

40"

(1016 mm)

U

34¹⁄₄" (870 mm)

34¹⁄₄" (870 mm)

37"

(940 mm)

V

36¹⁄₂" (927 mm)

37¹⁄₄" (946 mm)

39¹⁄₄" (997 mm)

Appliance Dimensions
