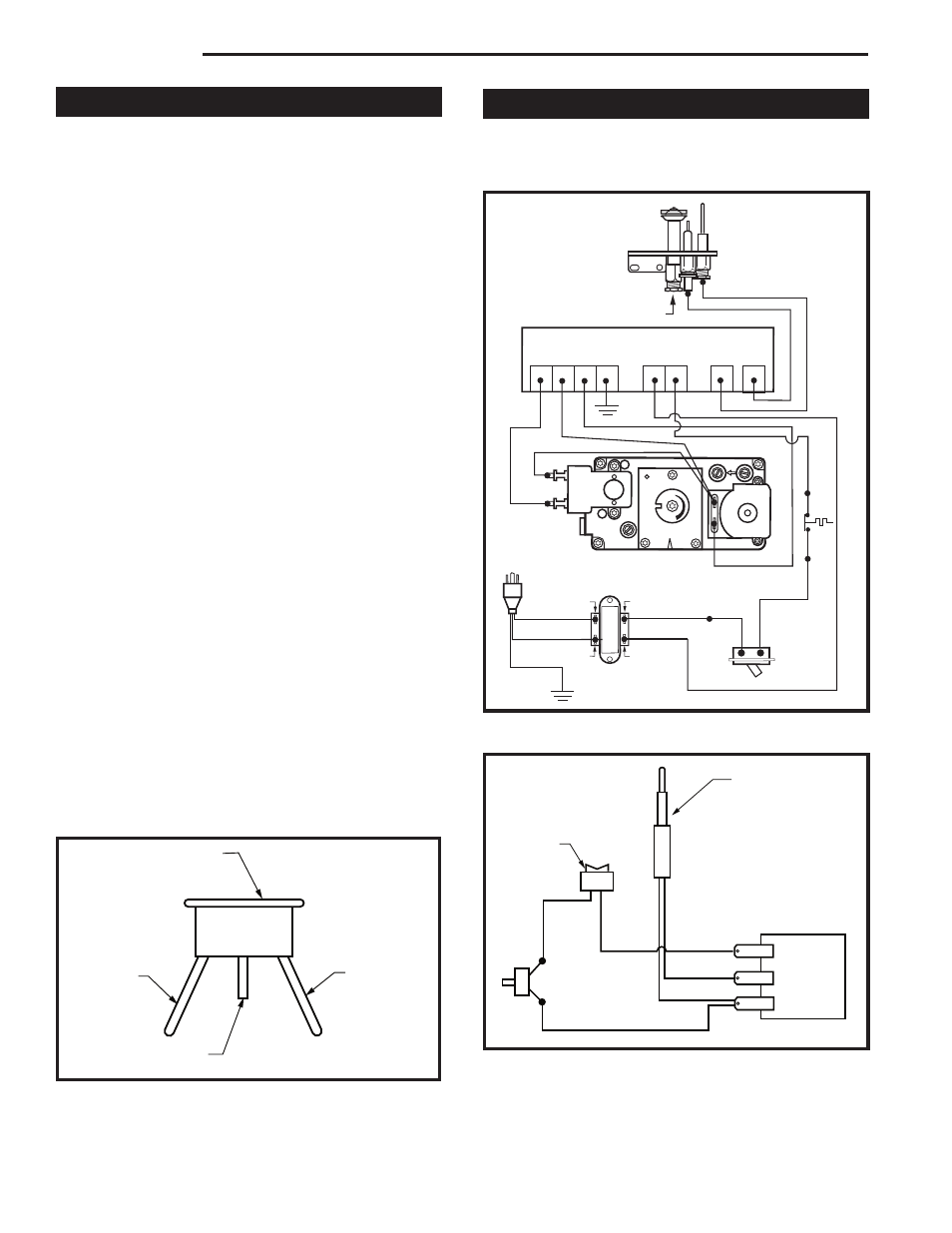

NVC Series B-Vent

20000194

Vent Safety Switch

This fireplace incorporates the use of a Vent Safety
Shut-off Switch. The sensor and wiring are factory
installed and should not be removed or altered during
installation.
In the event of total flue blockage the system will detect
the increased heat buildup and will automatically shut
down the main burner assembly.
The sensor is located above the firebox behind the top
louvre assembly. It is accessible by removing the top
louvre assembly.
CAUTION: The firebox, Vent Safety Switch sensor
and surrounding panels become very hot during
normal operation. Allow time for the components to
cool before carrying out any service or inspection.
If the sensor is activated and shuts off the burner as-
sembly, the following procedure should be followed:

Observe that the pilot flame is still ON. If the pilot
flame has gone out the reason for the fireplace shut
down is not the vent safety switch.

Turn the pilot flame OFF and close all controls. Allow
the fireplace to cool.

Check the flue and venting components for blockage
or restrictions.

Remove the front louvre assembly.

Locate the sensor.

Reset the sensor by pressing the reset pin between
the two wire terminals. (Fig. 18)

CAUTION: The components may still be hot.

Light the fireplace and check for downdrafts.

Operate the fireplace in the normal manner. If the
burner assembly shuts down again after a period
of operation, DO NOT ATTEMPT TO RESET THE
SENSOR AGAIN.
Turn off the fireplace and contact
your service technician.

Electrical Connection

The sensor is wired in series between the wall mounted
ON/OFF switch and the Electronic Ignition Module (Fig.
19) or the thermopile and the gas valve (Fig. 20)

FP1160

Vent safety switch

11/2/01 djt

Sensor

Wire Ter-

minal

Reset Pin

FP1160

Fig. 18 Vent Safety Switch.

Wire Terminal

24 VAC HOT

24 VAC RTN

ON-OFF

SWITCH

NOVA SIT 822 VALVE

HONEYWELL S8600 B IGNITION MODULE

120 VAC RTN

40VA

TRANSFORMER

120 VAC HOT

BLACK

BLACK

BLACK

BLACK

BLACK

BLACK

BLACK

WHITE

WHITE

WHITE

WHITE

WHITE

WHITE

WHITE

WHITE

BLACK

FP670
NOVA SIT 822 VALVE WIRING DGRM.
(w/ Honeywell S8600 B Ignition Module)
4/30/98

PILOT

H

I

L

O

HI

L O

E

A

P

ILO

T

1 5

3 4

GREEN

MV MVPV PV GND

(BURNER)

24V

GND

24V

SENSE

SPARK

FP670

Fig. 19 Vent Safety Switch wiring, EN/EP units.

TH

TP

TH

TP

Gas

Valve

FP1161

Vent Safety Switch

Wiring

11/2/01 djt

Thermopile

OnN/OFF

Switch

Vent

Safety

Switch

FP1161

Fig. 20 RN/RP units using a remote ON/OFF switch.
