Two-post rack installation – Cisco 7301 User Manual
Page 9
9
Step 1
Make sure that the port adapter latch is in the locked position and the screw is tightened.
Step 2
Make sure the rack brakes are locked or the rack (1) is stabilized.
Step 3
Position the router so the front is closest to you and lift it carefully into the rack. To prevent injury, avoid any sudden
twists or moves.
Step 4
Slide the chassis into the rack, pushing it back until the brackets meet the mounting strips or posts on both sides of the
rack.
Step 5
Keeping the brackets flush against the posts or mounting strips, align the holes in the brackets with the holes on the
rack or mounting strip.
Step 6
For each bracket, insert and tighten two 12-24 x 0.5-inch screws (3) to the rack.
Two-Post Rack Installation
Figure 8

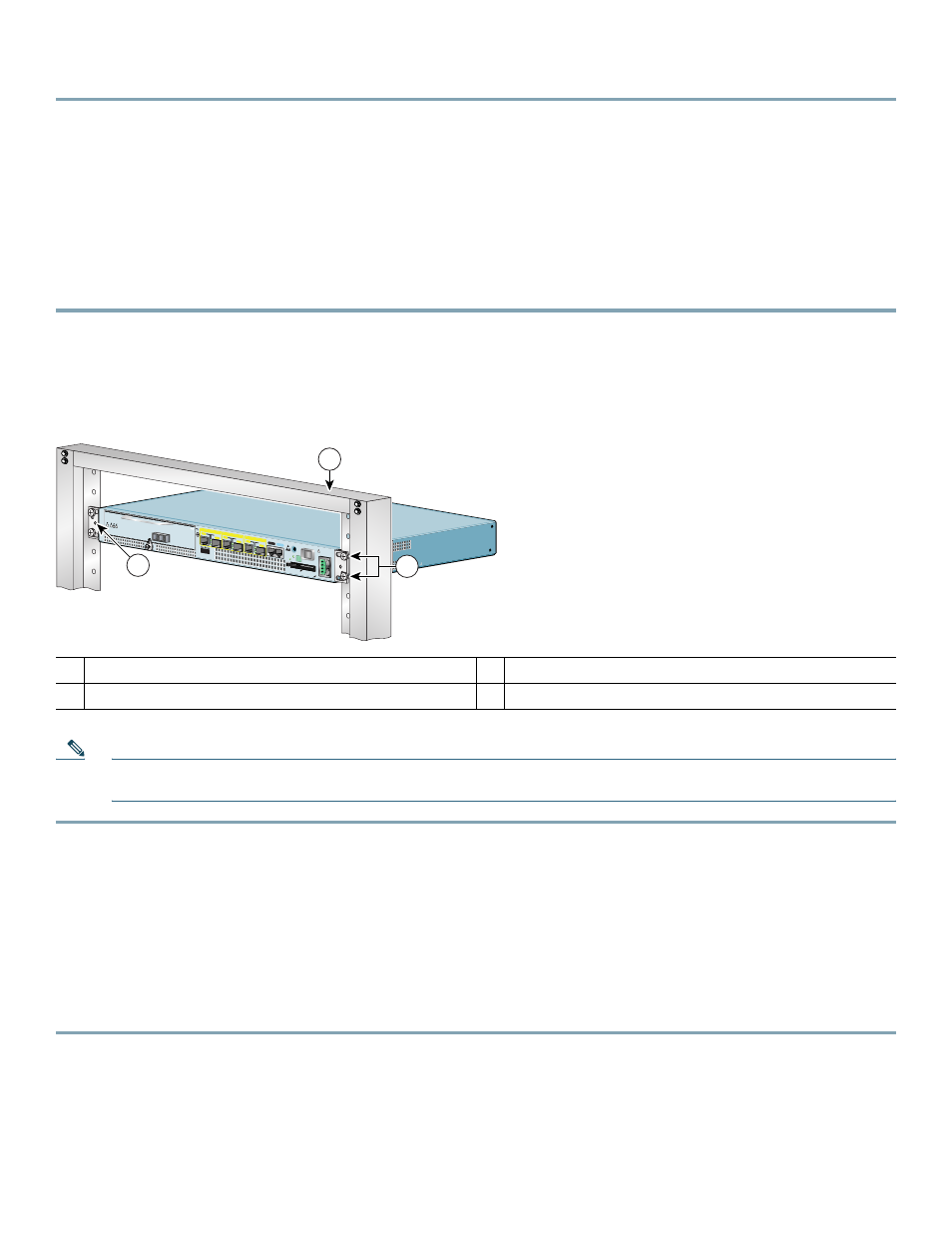

Installing the Cisco 7301 Router in a Two-Post Rack
Note
Inner clearance (the width between the inner sides of the two posts or rails), must be at least 17.3 inches (43.9 cm) The
height of the chassis is 1.73 inches (4.39 cm). Airflow through the chassis is from front to back.
Step 1
Make sure that the port adapter latch is in the locked position and the screw is tightened.
Step 2
Make sure the rack brakes are locked or the rack (1) is stabilized.
Step 3
Position the router so the front is closest to you and lift it carefully into the rack. To prevent injury, avoid any sudden
twists or moves.
Step 4
Slide the chassis into the rack, pushing it back until the brackets meet the mounting strips or posts on both sides of the
rack.
Step 5
Keeping the brackets flush against the posts or mounting strips, align the holes in the brackets with the holes on the
rack or mounting strip.
Step 6
For each bracket, insert and tighten two 12-24 x 0.5-inch screws (3) to the rack.
1
Two-post rack
3
Four 12-24 x 0.5-inch screws
2
Screw hole for cable-management bracket
80909
