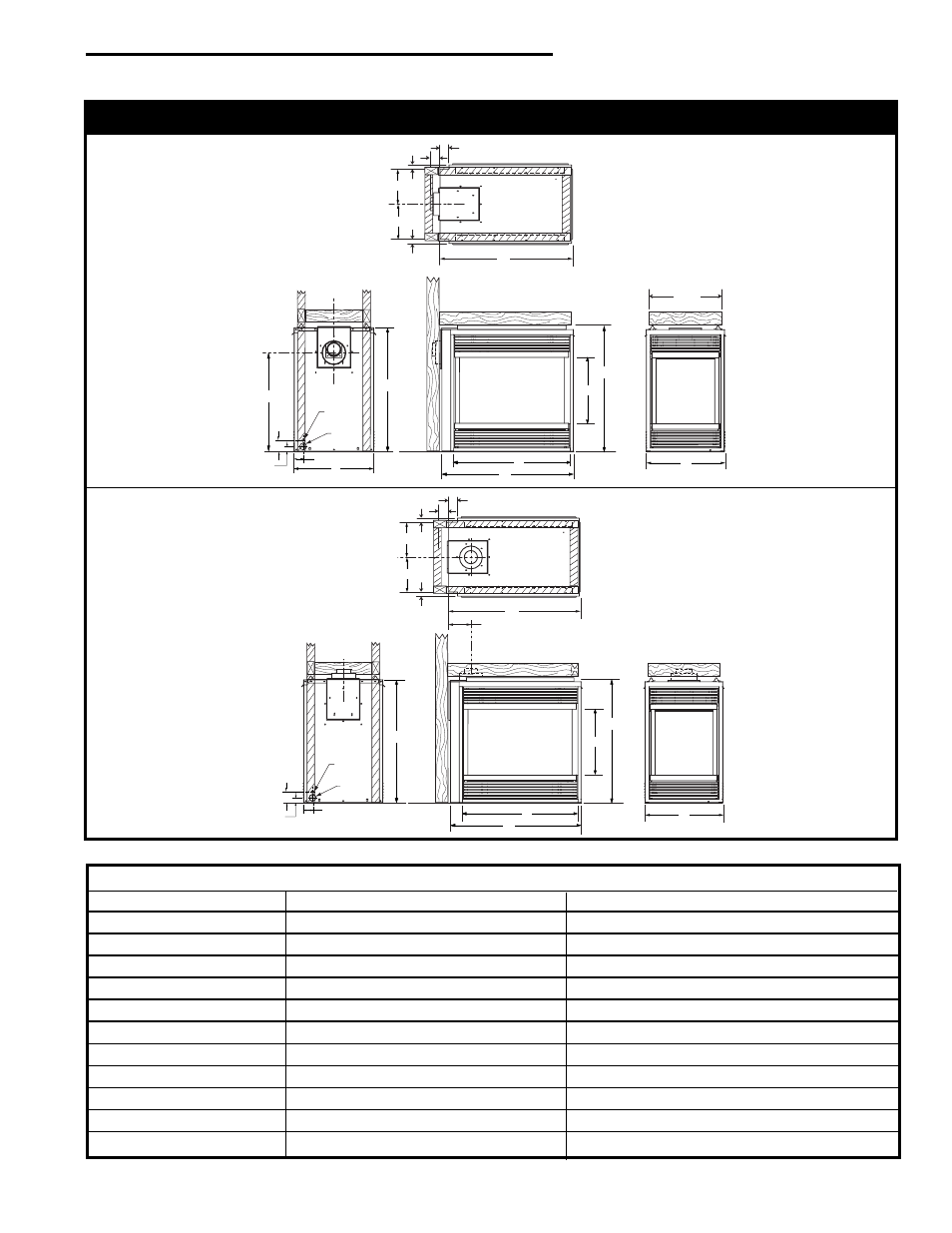

Fireplace Dimensions - 360DVS3 / 306DVSL / 360DVSR
Rear Vent Configuration
Top Vent Configuration
Ref. Rear Vent Configuration Top Vent Configuration
A 38 ¹⁄₈ ” (968mm) 38 ¹⁄₈ ” (968mm)
B 40 ⁵⁄₈ ” (1032mm) 40 ⁵⁄₈ ” (1032mm)
C 24” (610mm) 24” (610mm)
D 24” (610mm) 24” (610mm)
E 37 ³⁄₈ ” (949mm) 37 ³⁄₈ ” (949mm)
F 35
⁷⁄₈
” (911mm) 35
⁷⁄₈
” (911mm)
G 30
¹⁄₂
” (775mm) 7” (178mm)
H 12” (305mm) 12” (305mm)
I 3
¹⁄₈
” (80mm) 3
¹⁄₈
” (80mm)
J 2
³⁄₄
” (70mm) 2
³⁄₄
” (70mm)
K 1
¹⁄₄
” (33mm) 1
¹⁄₄
” (33mm)
Appliance Dimensions
Fig. 2b Fireplace specifications—360DVS3/ 360DDVSL/ 360DVSR
