Char-Broil 463720110 User Manual
Page 26
26
17
16

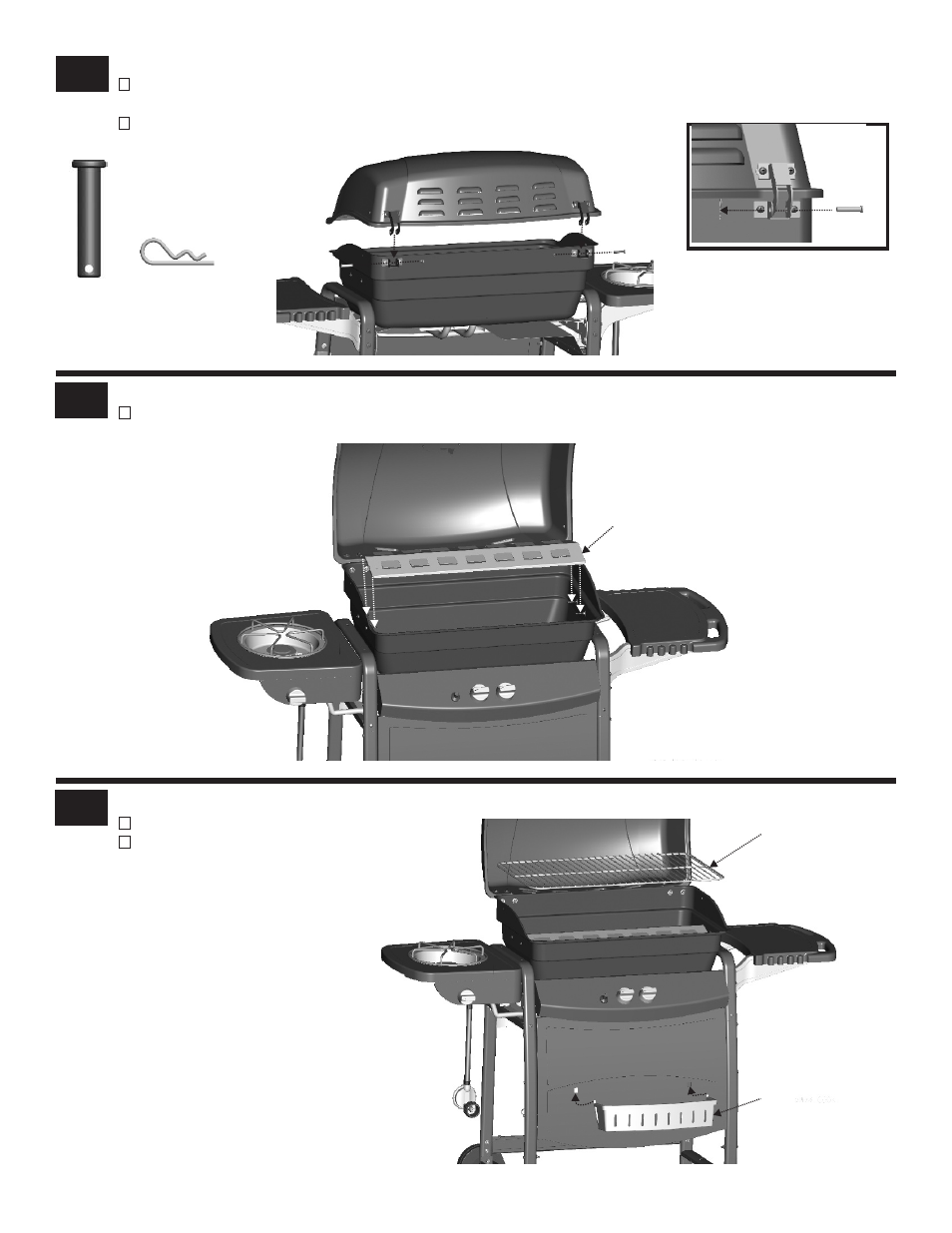

Heat Tent
Place heat tent into firebox. Align the slots on heat tent to heat tent support screws.
18
Cooking Grate
Place grates into firebox.
Hook condiment basket into front panel.
Lid
Place lid assembly onto firebox, aligning hinges. Hinges on lid fit inside hinges on firebox. Secure using two hinge pins
and hitch pins. Tighten upper hinge screws.
NOTE: Tighten the hinges screws after installing the hinge pins.
Hitch Pin
Qty.2
Hinge Pin
Qty.2
Heat Tent
Cooking Grate
Condiment basket
