Lower Hinges

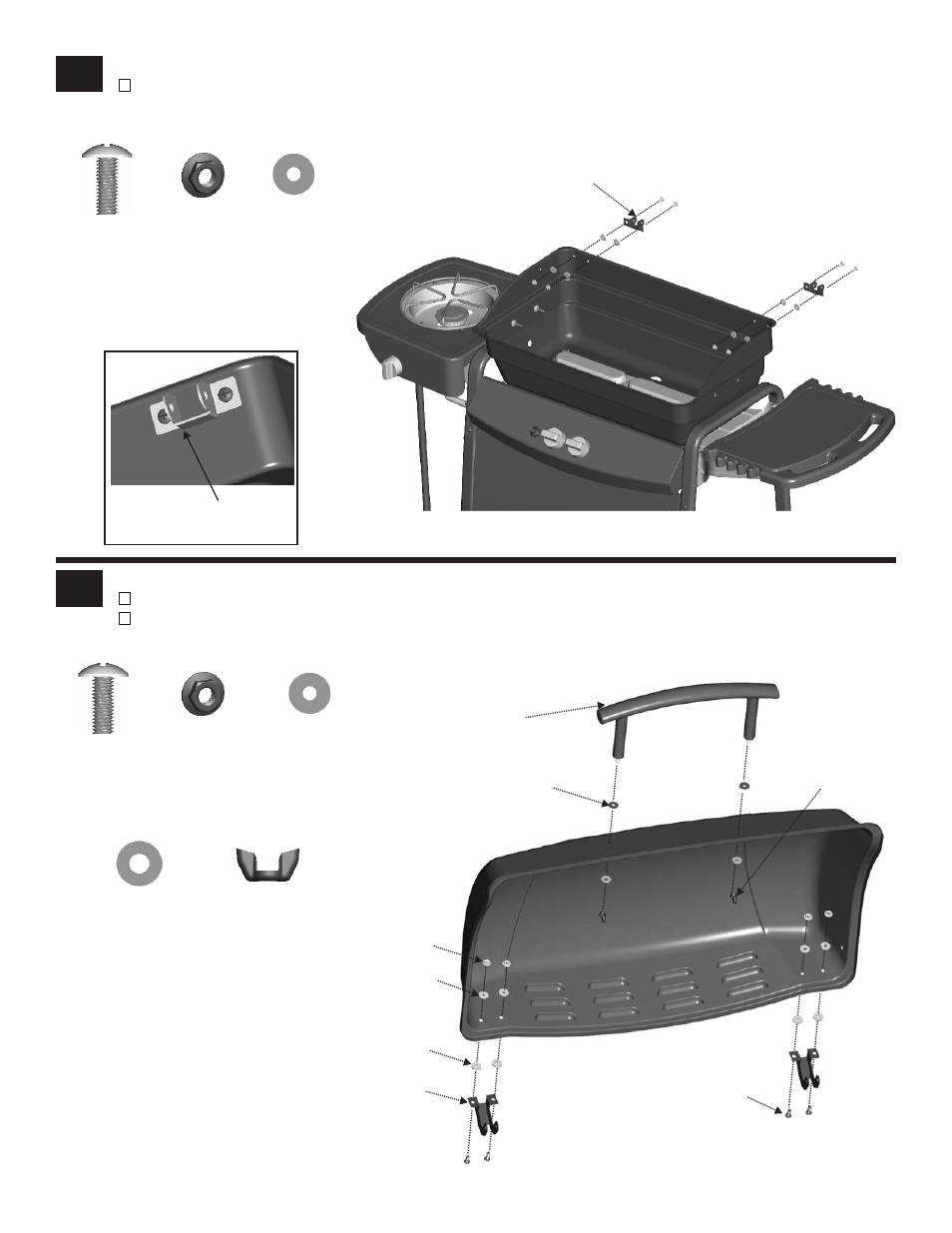

Attach lower hinges to back of firebox using #10-24x1/2’’ machine screws, 5x15 fiber washers and #10-24 flange nuts.
The center flat portion of the hinge should be at the bottom (see inset).
5x15
Fiber Washer
Qty.8
#10-24x1/2”
Machine Screw
Qty.4
#10-24
Flange Nut
Qty. 4
Lid Handle and Upper Hinges
Attach handle to lid with 7x15 fiber washers and 1/4’’-20 wing nuts .
Attach upper hinges to back of lid using #10-24x1/2’’ machine screws, 5x15 fiber washers and #10-24 flange nuts.
Hinge should curve downward when properly installed. Do not tighten upper hinge screws.
Lower Hinge
Handle
7x5 Fiber Washer
1/4’’-20 Wing Nut
#10-24 Flange Nut
5x15 Fiber Washer
5x15 Fiber Washer
Upper Hinge
#10-24x1/2’’
Machine Screw
