23

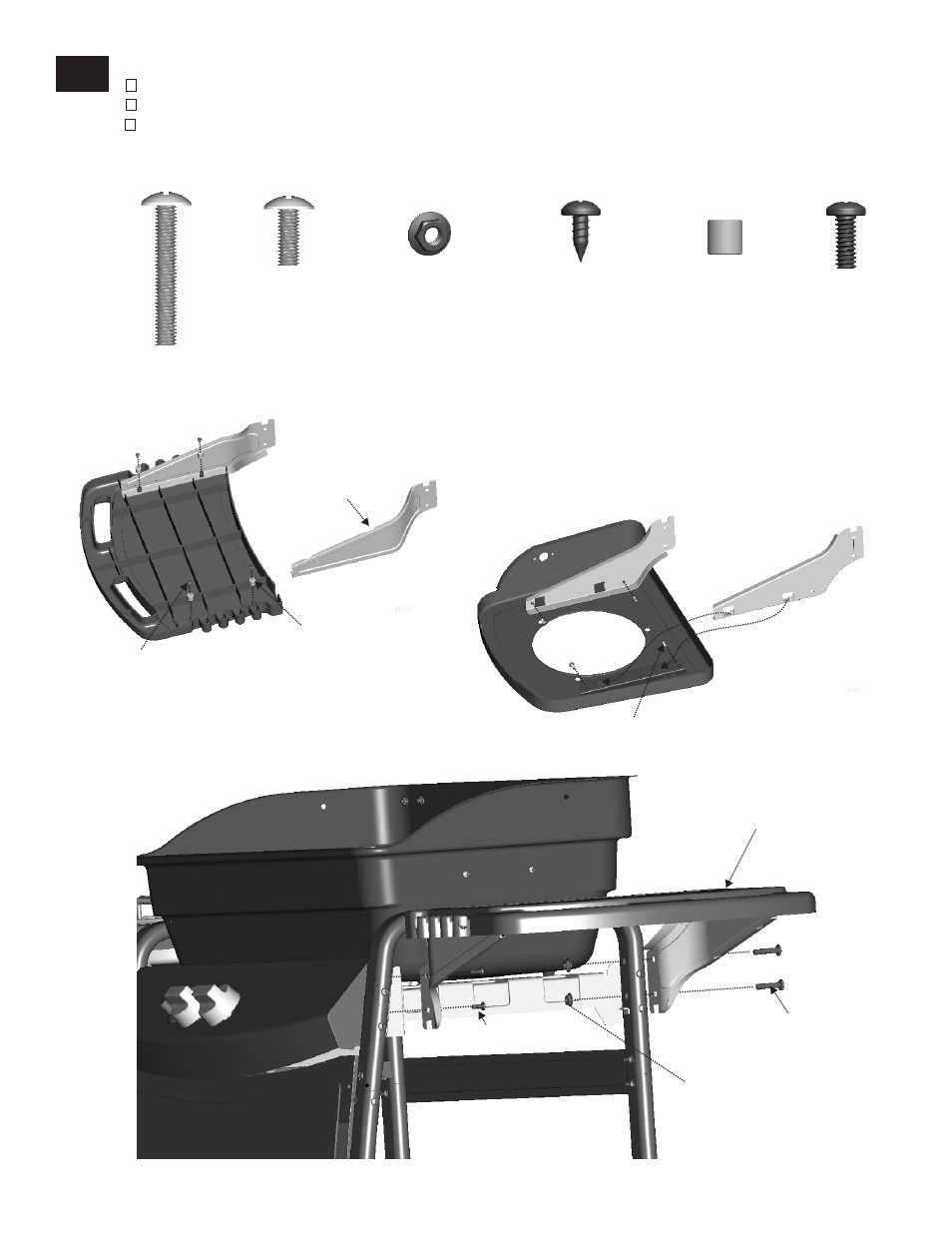

Shelves
Attach mounting brackets to shelf support with side shelf bushing and #8-32x3/8’’ sheet metal screws (A).
Insert mounting bracket into sideburner shelf support, secure with #10-24x1/2’’ machine screws (B).
Attach mounting brackets to front of leg with 1/4’’-20x1/2’’ machine screws. Back of leg with 1/4’’-20x1-1/4’’ machine
screws and 1/4’’-20 flange nuts ( C ). Repeat on the sideburner shelf. 12
1/4’’-20x1-1/4"
Machine Screw
Qty.4
1/4’’-20x1/2”
Machine Screw
Qty.4
1/4’’-20
Flange Nut
Qty. 4
#8-32x3/8’’
Sheet Metal Screw
Qty.4
Side Shelf Bushing
Qty.4
A
C
Side Shelf
1/4’’-20 Flange Nut
1/4’’-20x1-1/4’’
Machine Screw
1/4’’-20x1/2’’
Machine Screw
#10-24x1/2’’ Machine Screw
B
Mounting Bracket
Side Shelf Bushing
#8-32x3/8’’
Sheet Metal Screw
#10-24x1/2’’
Machine Screw
Qty.4
