AFDE600 0.44 1557 100 17.4
AFDE610 1.00 1557 100 18.4
AFDE620 1.47 1557 100 22
TOOL TYPE POWER THRUST STROKE WEIGHT
H P N m m k g
TOOL TYPE POWER THRUST STROKE WEIGHT
H P N m m k g
TOOL TYPE POWER THRUST STROKE WEIGHT
H P N m m k g
l Compact unit size
l High speed options up to 22400 rpm @ 50Hz, 26900 rpm @ 60Hz with K42 output
l Capacity up to 5mm (3/16”) in aluminium
l Modular output spindles

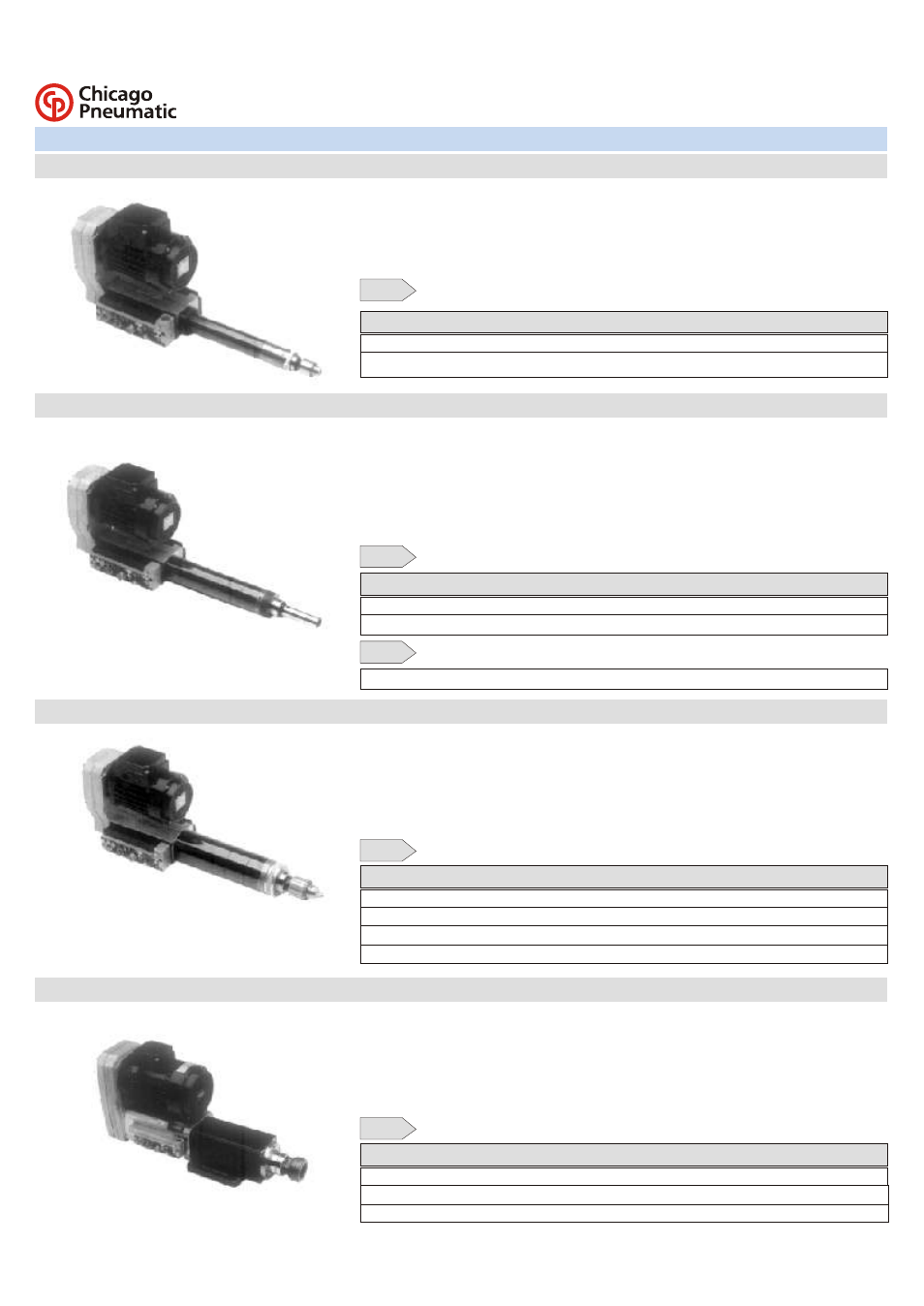

Drilling Electric Drive
AFDE200 electric drive
AFDE200 0.34 320 90 10.1
SPEED 850, 1200, 2350, 2850, 3750, 4600, 5250, 8000, 10000
l Comprehensive speed range 330-10000 rpm @ 50Hz, 400-11900 rpm @ 60Hz
l 0.33kW (0.44HP) and 0.75kW (1.00HP) options
l Capacity up to 10mm (3/8”) in aluminium or 8mm (5/16”) in mild steel
l Spindle sealed to IP64 standard
l Modular output spindles
AFDE400 0.44 724 100 11.4
AFDE400/ AFDE410 electric drive
SPEED 330, 550, 900, 1200, 1450, 1750, 2350, 2850, 3750, 4600, 5250, 8000, 10000
AFDE410 1.00 724 100 12.4
SPEED 330, 550, 900, 1200, 1450, 1750, 2350, 2850, 3750, 4600, 5250, 8000
l 3 power ratings to give optimum power / thrust combination
l Heavy duty belts and pulley drive with integral belt tensioner
l Capacity up to 12mm (½”) in mild steel
l Spindle sealed to IP64 standard
l Modular output spindles
AFDE600/ AFDE610/ AFDE620 electric drive
SPEED 330, 550, 900, 1200, 1450, 1750, 2350, 2850, 3750, 4600, 5250
TOOL TYPE POWER THRUST STROKE WEIGHT
H P N m m k g
l Heavy duty drill unit
l Base mounted with cross key location
l Compact design
l Capacity up to 20mm (3/4”) in mild steel
l Hydraulic feed option available upon request to provide up to 7400N (1660 lbf) of thrust
AFDE700/ AFDE710 electric drive
SPEED 140, 280, 460, 950, 1400, 1900, 2850, 4750
AFDE700 2.00 2670 127 63
AFDE710 2.95 2670 127 63
