52362 8500 18.4-87.3 – – 62 115 60 193.5
52462 8500 41.1-109.9 – – 62 137 60 193.5
92142 5300 9.5-54 – – 50.8 83 50.8 175.4
92152 5300 12.7-64 – – 50.8 83 50.8 175.4
92162 8500 18.4-87.3 – – 62 115 60 196
92172 8500 41.1-109.9 – – 62 137 60 196
92222 1400 12.7-64 – – 50.8 83 50.8 233.8
92232 1400 18.4-87.3 – – 62 115 60 253
92242 1400 41.1-109.9 – – 62 137 60 253
104022 8500 41.1-109.9 – – 62 137 60 196
104062 8500 18.4-87.3 – – 62 115 60 196
104072 1400 41.1-109.9 – – 62 137 60 233.5
104122 1400 18.4-87.3 – – 62 115 60 196
106662 5300 19-95 – – 76 124 68.3 212
106672 5300 19-95 – – 76 124 68.3 211
106682 1500 19-95 – – 76 124 68.3 261.5
106692 1500 19-95 – – 76 124 68.3 260
107552 5300 19-57.1 – – 99.2 142.9 68.3 212.3
107562 5300 19-57.1 – – 99.2 142.9 68.3 188
107572 5300 19-57.1 – – 99.2 142.9 68.3 212.3
107582 5300 – 27.9 104.1 120.3 132.6 68.3 212.3
107592 5300 – 27.9 104.1 120.3 132.6 68.3 211.2
107602 5300 – 27.9 104.1 120.3 132.6 68.3 188
107612 5300 – 42.7 118.9 147.6 130.4 68.3 211.2
107622 5300 – 42.7 118.9 147.6 130.4 68.3 188
107632 900 19-57.1 – – 99.2 142.9 68.3 261.5
107642 900 19-57.1 – – 99.2 142.9 68.3 260
107652 900 19-57.1 – – 99.2 142.9 68.3 259.9
107662 900 – 27.9 104.1 120.3 132.6 68.3 261.5
107672 900 – 27.9 104.1 120.3 132.6 68.3 260
107682 900 – 27.9 104.1 120.3 132.6 68.3 259.9
107692 900 – 42.7 118.9 147.6 130.4 68.3 260
107702 900 – 42.7 118.9 147.6 130.4 68.3 259.9
174183 5300 9.5-54 – – 50.8 83 50.8 169.5
204173 5300 12.7-64 – – 50.8 83 50.8 206.1
204183 5300 19-95 – – 76 124 68.3 188
204193 700 19-95 – – 76 124 68.3 260.4
PART NO . MAXIMUM MAX . / MINI . MINIMUM MAXIMUM C D F H
SPEED CENTERS PCD PCD
13
adjustable spindle

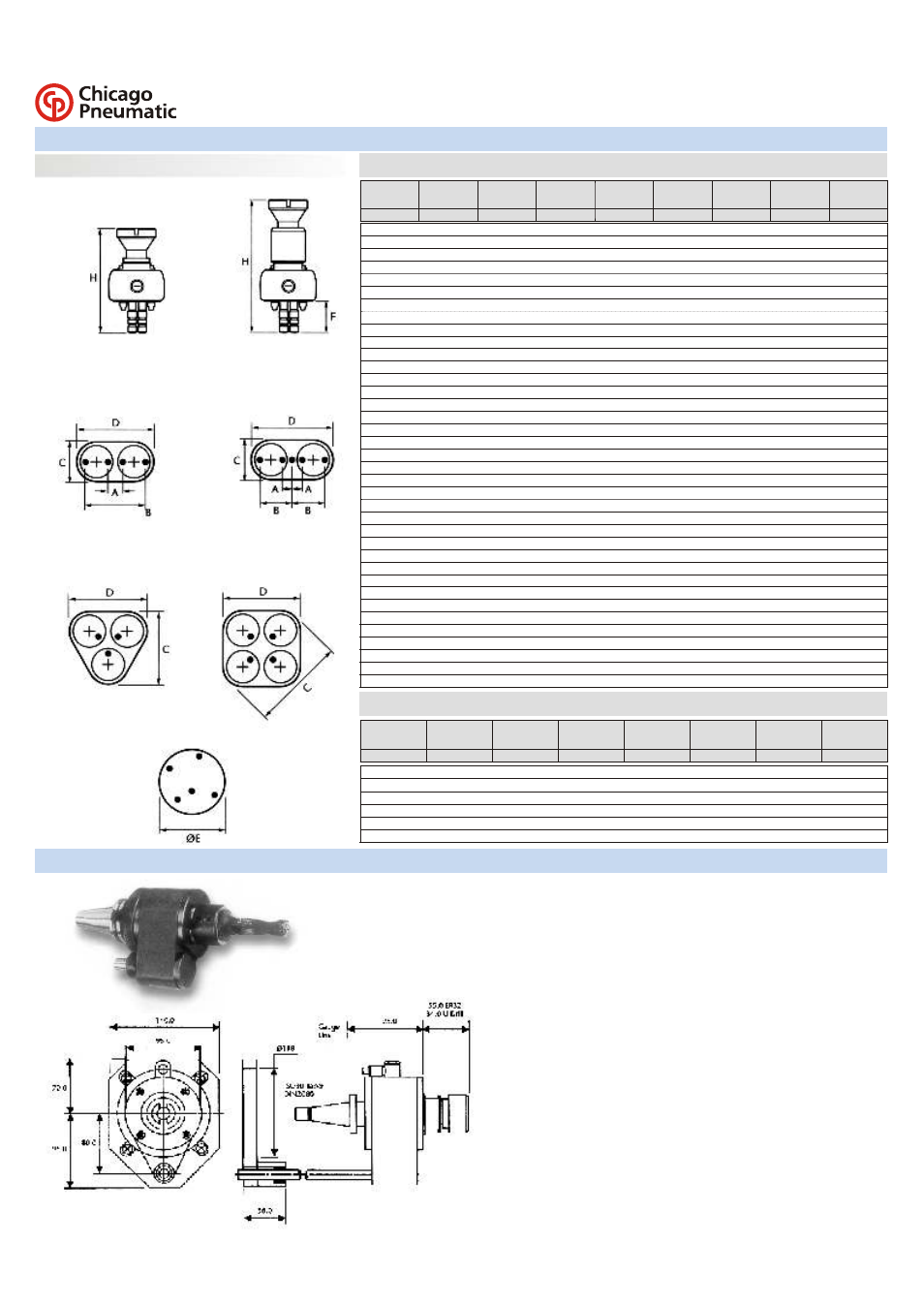

Multiple Spindle Heads
dimensions
rpm mm mm mm mm mm mm mm
fixed spindle
MSD100 5300 9.5-63.5 9.5/12.7 63.5 56-81.8 37/40.5 168/175.4
MST100 1400 9.5-63.5 9.5/12.7 63.5 56-81.8 37/40.5 227.8/233.8
MSD200 5300 19-95 19 95 100.8-126.2 57.2 211.1
MST200 700 19-95 19 95 100.8-126.2 57.2 260
MSD300 3500 17.4-157 17.4 157 150-225 26-41 221-241
MST300 1500 17.4-157 17.4 157 150-225 26-41 221-241
PART NO . MAXIMUM MAX . / MINI . MINIMUM MAXIMUM OE F H
SPEED CENTERS PCD PCD
rpm mm mm mm mm mm mm
Spindle Coolant Adaptor for the AFDE700 Series
Two types of spindle coolant adaptors are now available for the AFDE700/710.
The adaptors are available with the ER32 style collect holder (maximum collet 20mm) or a 32mm
‘U’ drill holder. Both are supplied with DIN2080 ISO30 male tapers to fit the T34 output and
include a support pillar mounted to the front of the AFDE to take the torque reaction.
The heads are fully sealed and coolant enters the head via a port on the side of the head suitable
for 10mm O.D. and 7mm I.D. pipe.
Maximum Speed – 5000 rpm
Maximum Coolant Pressure – 25 bar
Weight – Approx 7 kg (15.5lbs)
ER Collet Type Part No. 107792
32mm ‘U’ Drill Type Part No. 107802
QUILL DATUM QUILL DATUM
Drilling Drilling
QUILL DATUM QUILL DATUM
Tapping Tapping
2 spindles
adjustable 2 spindles
adjustable 3 spindles
inline adjustable
3 spindles
inline adjustable
3 spindles
adjustable 3 spindles
adjustable 4 spindles rectangular
adjustable
4 spindles rectangular
adjustable
2 – 3 – 4 – 5
spindles fixed
2 – 3 – 4 – 5
spindles fixed
