Chicago Pneumatic Auto Feed Drills & Tappers - Manual (Page 12)

AFD205 AFD415 AFD60 AFDE600 AFDE700 AFTE270 AFTE-470
AFD215 AFDE400 AFDE610 AFDE710 AFTE-480
AFDE200 AFDE410 AFDE620
12

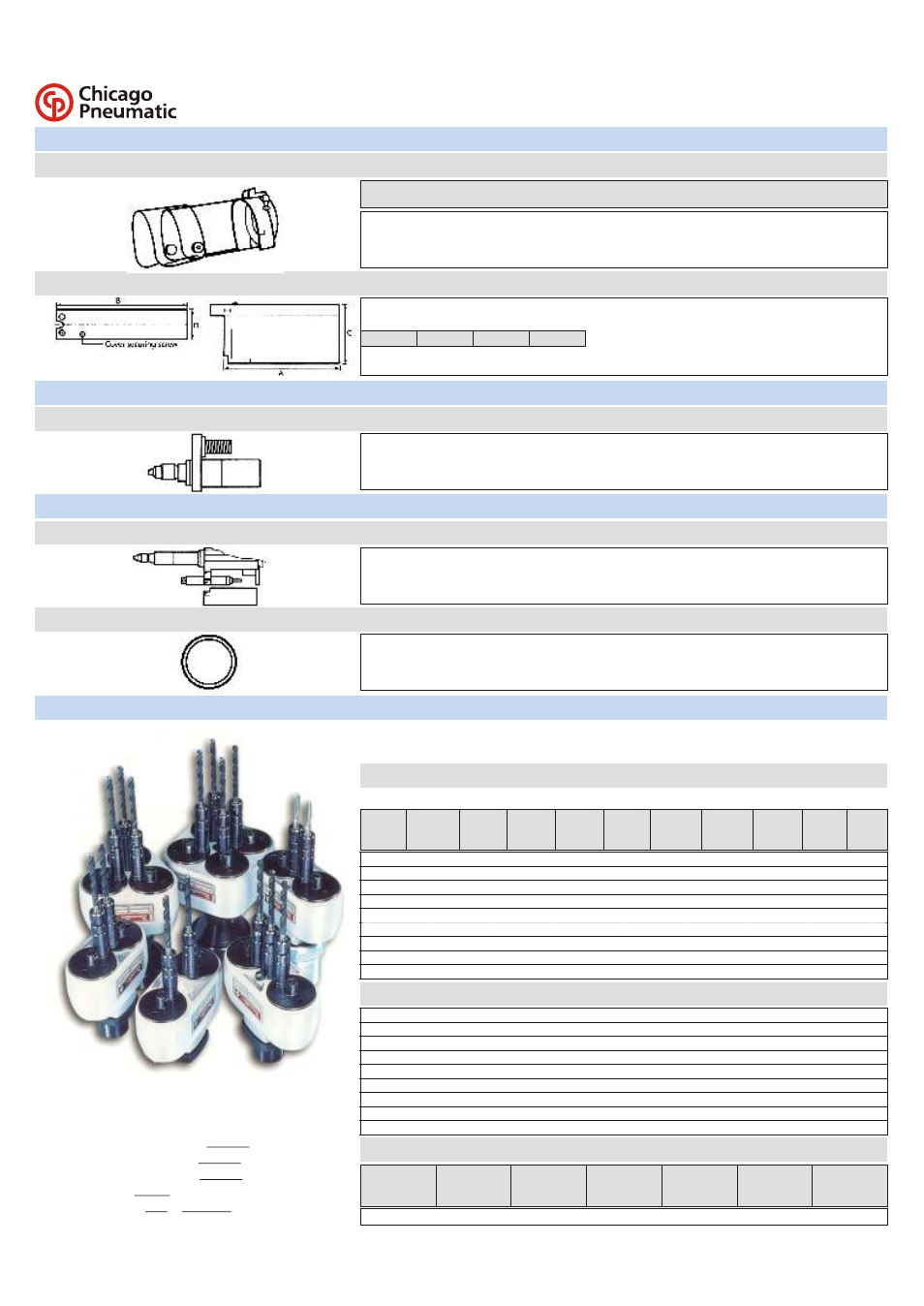

chuck guards
Guards
FEATURES TOOL TYPES PART NO.
To prevent the user inadvertently touching
rotating parts
Control Top Guard to enclose crosshead
(Supplied with AFD60 as standard)
AFD205/215, AFDE200, AFTE270
AFD415, AFDE400/410, AFTE470/480
AFD60/AFDE600/610/620
AFD60, AFT60
66132
66122
304863
259093
control head gu rd a
A B C D
210mm 236mm 108mm 55mm
(8.3”) (9.3”) (4.3”) (2.2”)
AFD/AFT silencer
Silencers
Exhaust silencer fitted with 1/4” BSP screw-in
silencer
AFD205, AFD215
AFD415
AFD60, AFT60 91262
70642
70652
AFD205/215 HCU inverting kit
Miscellaneous Accessories
HCU Inverting Assembly
Particularly for use with AFD205 for applications with
height restrictions
381003
AFD205/215, AFDE200, AFTE270 sealing ring
Sealing Ring
Threaded on to nose of unit in place of protection cap.
Forms seal on quill shaft to prevent ingress of swarf.
104432
l Range of adjustable spindle positions for 2, 3 and 4 spindle heads
l Special fixed spindle heads available for non standard hole patterns or dedicated applications
drilling
Multiple Spindle Heads
NUMBER SPINDLE MAXIMUM AFD205 AFD415 AFD60 AFDE600 AFDE700 AFTE270 AFTE-470 COLLET
OF CENTERS COLLET AFD215 AFDE400 AFDE610 AFDE710 AFTE-480 TYPE
SPINDLES OR PCD SIZE AFDE200 AFDE410 AFDE620
2 9.5-54 4.00 174183 92142 – – – – – A
2 12.7-64 6.50 – 92152 – – – – – B
2 18.4-87.3 7.00 – 92162 52362 104062 – – – C
2 19-95 9.50 – 106662 204183 106672 – – – D
2 41.1-109.9 7.00 – 92172 52462 104022 – – – C
3 inline 19.0-57.1 9.50 – 107552 107572 107562 – – – D
3 PCD 27.9-104.1 9.50 – 107582 107602 107592 – – – D
4 PCD 42.7-118.9 9.50 – – 107622 107612 – – – D
Fixed – – – MSD100 MSD200 MSD200 MSD300 – – –
Multiple Spindle Head Part Numbers
tapping
2 9.5-54 4.00 – – – – – 174183 92142 A
2 12.7-64 6.50 204173 92222 – – – – 92152 B
2 18.4-87.3 7.00 – 92232 – 104122 – – 92162 C
2 19-95 9.50 – 106682 204193 106692 – – 106662 D
2 41.1-109.9 7.00 – 92242 – 104072 – – 92172 C
3 inline 19.0-57.1 9.50 – 107632 107652 107642 – – 107552 D
3 PCD 27.9-104.1 9.50 – 107662 107682 107672 – – 107582 D
4 PCD 42.7-118.9 9.50 – – 107702 107692 – – – D
Fixed – – – MST100 MST200 MST200 MSD300 – MSD100 –
output spindles for use with multiple spindle heads
K32 B24 – B24 T35 K32 B24
How to order
Examples:
AFDE200-2850-A1 + K32 + 174183
AFD415-3400-A6 + B24 + 107552
AFDE610-900-A1 + B24 + 107672
AFD60-2100 + 52362
AFDE70-950-A1-T35 + MSD300
