15

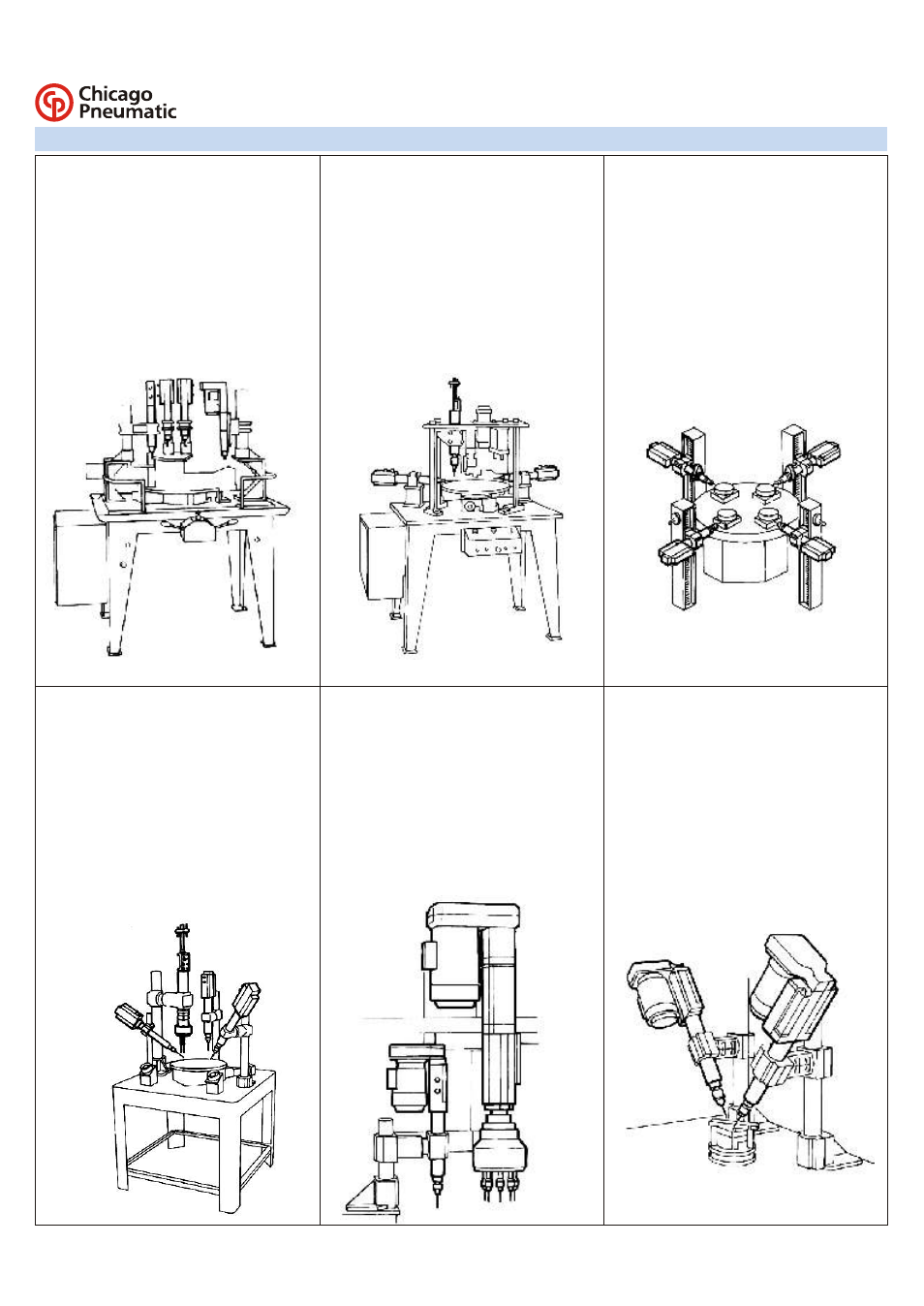

Auto Feed Drill and Tapper Applications
Application
! Hydraulic cylinder
! Drilling and tapping Ø6mm holes in alloy steel
Tool Type
! 4 AFD41-1250-A1-B2 with skip feed control unit
! 1 AFTE47-830-A6-B24 with tapping chuck and
control box
! 1 R12104X 4 station rotary table
! Parallel and base clamps, tubes
Cycle Time
! 20 seconds
Application
! Carburettor components
! Drilling 2 Ø3mm and a Ø10mm hole in aluminium
casting
Tool Type
! 2 AFD22-4350-A1-K2 with hydraulic control units
! 1 AFD60-1600
! Base and bar clamps
! 1 R12104H 4 station rotary table with hydrocheck
Cycle Time
! 5 seconds per component
Application
! Aluminium casting
! Drilling and tapping Ø8mm holes
Tool Type
! 2 AFD41-3400-A6-B2
! 2 AFD41-790-A6-B8
! All tools fitted with interface kits and exhaust
collectors
! Mounted on bar clamps to vertical slides for
positioning
Cycle Time
! Under 20 seconds
Application
! Automotive component
! Drilling Ø6.4mm hole, 32mm deep and 4 Ø5.5mm
holes in mild steel
Tool Type
! AFD60-3000 fitted with 2 spindle head and
hydraulic check unit
! AFD41-2100-A1-B1 fitted with 50mm peck feed kit
! 2 AFD22-2700-A1-K32 with chucks and hydraulic
check units
! Mounted on swivel and right angle clamps, base
clamps and tubes
Cycle Time
! 12 seconds
Application
! Air conditioning parts
! Drilling 2 Ø6mm holes and spot facing 6 Ø16mm
holes 1.5mm deep in cast aluminium replacing
operations performed by a CNC machine
Tool Type
! 2 AFDE41-2350-A1-B2 fitted with interface kits
and hydraulic check units
! AFE70-460-A1-T35 fitted with a 6 spindle head
and dwell kit
! AFDE41 in bar, swivel, right angle and base
clamps and tube
Cycle Time
! 8 -9 seconds
Application
! Stainless steel component
! Drilling Ø4mm and Ø8mm holes
Tool Type
! AFDE41-1220-A1-B1 fitted with 25mm
hydraulic check units
! AFDE62-860-A1-B1 fitted with 25mm hydraulic
check unit
! Both tools mounted in swivel, right angle and
base clamps with tubes
Cycle Time
! 8 seconds
