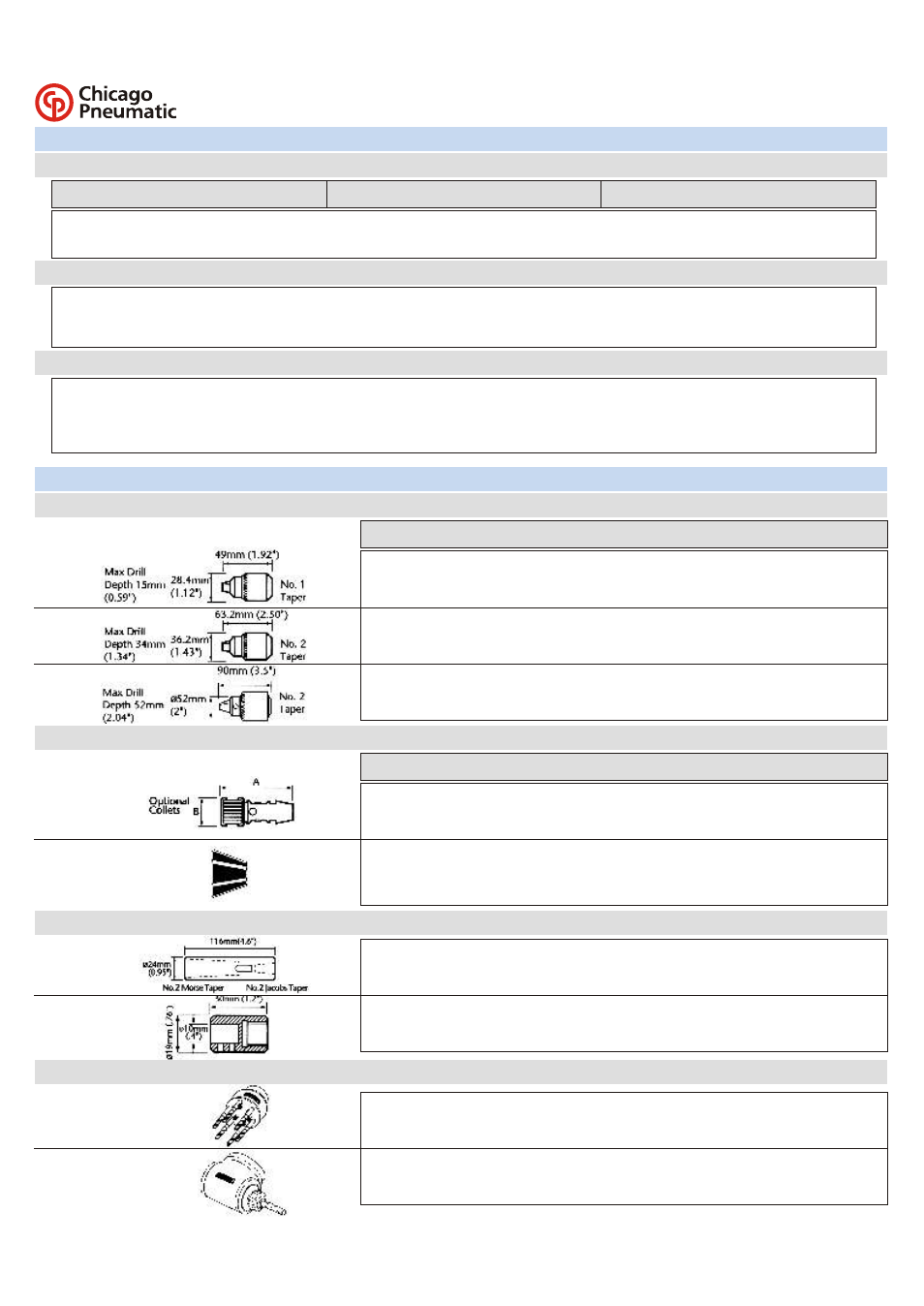

Angle heads available to order to suit
AFDE400/410/600/610/620/700/710/AFD4115
11
Collets
For use with B2 (326573), R2 (384113), K2 (357183), K42 (375263), ER11 TYPE
size part no. size part no. size part no.
0.5 - 1.0 (0.020 - 0.039) 52582
1.1 - 1.5 (0.043 - 0.059) 52592
1.6 - 2.0 (0.063 - 0.079) 52602
4.1 - 5.0 (0.161 - 0.197) 52652
5.1 - 6.0 (0.201 - 0.234) 52662
6.1 - 7.0 (0.240 - 0.276) 52672
2.1 - 2.5 (0.083 - 0.098) 52622
2.6 - 3.0 (0.102 - 0.118) 52632
3.1 - 4.0 (0.121 - 0.157) 52642
For use with R36 (389273) ER25 TYPE
6.0 - 7.0 (0.236 - 0.276) 104942
7.1 - 8.0 (0.279 - 0.315) 104952
8.1 - 9.0 (0.319 - 0.354) 104962
9.1 - 10.0 (0.358 - 0.394) 104972
10.1 - 11.0 (0.397 - 0.433) 104982
11.1 - 12.0 (0.437 - 0.472) 104992
12.1 - 13.0 (0.476 - 0.512) 105002
13.1 - 14.0 (0.516 - 0.551) 105022
14.1 - 15.0 (0.555 - 0.591) 105032
15.1 - 16.0 (0.594 - 0.630) 105042
For use with T2 (362463) ER32 TYPE
5.0 - 6.0 (0.197 - 0.236) 105092
6.1 - 7.0 (0.240 - 0.276) 105102
7.1 - 8.0 (0.279 - 0.315) 105122
8.1 - 9.0 (0.319 - 0.354) 105132
9.1 - 10.0 (0.358 - 0.394) 105142
10.1 - 11.0 (0.397 - 0.423) 105152
11.1 - 12.0 (0.437 - 0.472) 105162
12.1 - 13.0 (0.476 - 0.512) 105172
13.1 - 14.0 (0.516 - 0.551) 105182
14.1 - 15.0 (0.555 - 0.591) 105192
15.1 - 16.0 (0.594 - 0.630) 105202
16.1 - 17.0 (0.634 - 0.669) 105222
17.1 - 18.0 (0.673 - 0.709) 105232
18.1 - 19.0 (0.713 - 0.748) 105242
19.1 - 20.0 (0.752 - 0.787) 105252
drilling chucks
Chucks
FUNCTION DESCRIPTION PART NO.
6.5mm (1/4”) Key Adjustable Chuck
10mm (3/8”) Key Adjustable Chuck
13mm (1/2”) Key Adjustable Chuck
Part No. Includes Chuck Key. Use with No. 1 standard
Jacobs taper outputs K32 and B32
Part No. Includes Chuck Key. Use with No. 2 standard
Jacobs taper output B24
Part No. Includes Chuck Key. Use with No. 2 standard
Jacobs taper output B24
29492
34752
34332
tapping chucks
J ACOBS TAPER FITTING A B Ø T AP SHANK
mm mm mm
Tapping Chucks with flexible Collet (included)
Spare or replacement Collets
No. 1 64 27 3.5-6.5
No. 1 64 27 4.5-8
No. 2 79 37 4.5-9.5
2-4.5mm (5/64-3/16”) Capacity to suit 29462 / 29452
3.5-6.5mm (9/64-1/4”) Capacity to suit 29462 / 29452
4.5-8mm (3/16-5/16”) Capacity to suit 29462 / 29452
4.5-9.5mm (3/16-3/8”) Capacity to suit 34742
9-12.5mm (9/32-1/2”) Capacity to suit 34742
29462
75142
29452
34742
29482
29472
36172
39242
drill bit/ cutter adaptor
Morse Taper Adaptor
Ø 10mm Shank Cutter Adaptor
No. 2 Jacobs female taper to No. 2 Morse female taper
Fits thread of Single Collet Chuck – Part Nos. 326573
and 384113 and Multi Heads – Part Nos. 52362,
52462, 92162, 92172, 104022, 104062
34862
53232
multiple spindle heads
Fixed and adjustable spindle multi-heads
When ordering state number of spindles, diameter of
holes, material to be drilled and hole pattern required
When ordering state details of application, material to
be machined, size and depth to cut
—
—
Multi-spindle drilling / tapping heads
Angle heads/ Offset heads
