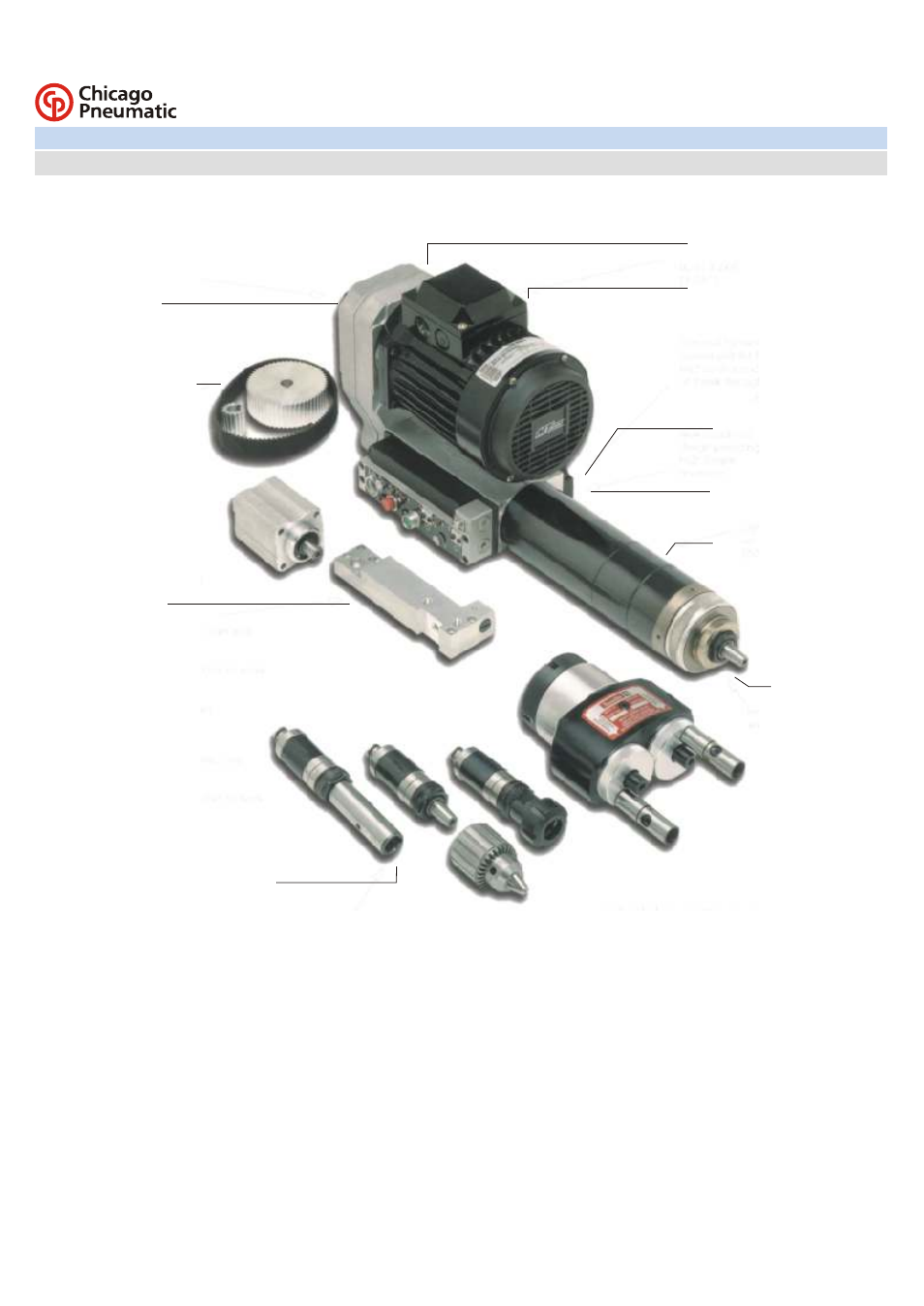

AFD Features
2
Integral belt tensioner on
AFDE and AFTE models
l Modular components for flexibility of
speed and function
l Simple interfaces for communicating to
other equipment
l Control options including peck feed, dwell
and skip feed
Desoutter Auto Feed Drill and Tapper Features
Rigid cast aluminium housing
Motor Powers up to 2.2kW(3.OHP)
Optional hydraulic control unit for fine
feed control and reduction of ‘break
through’ force
New crosshead design providing high
torque resistance
Front of tools
sealed to IP64
**
** AFD415, AFDE400/410 and AFDE600/610/62O tools only
Heavy duty belts and pulleys on AFDE
and AFTE models.
Modular Control Block Options
A1 - Full Feature Block
l Pneumatic signal ports for stop, start and
cycle complete
l Facility for using proximity switches to
sense depth and datum positions
l Control of feed and retract speed
A6 - Simple Control Block
l Forward and retract port for control via
remote valves
l Facility for using proximity switches to
sense depth and datum positions
Interchangeable modular output spindles including
multiple spindle and tapping heads
Dynamic thrusts up to 2670N (600lbf)
General Information
l All performance data is obtained at a line pressure of 6.3±0.15 bar in accordance with ISO2787 (1984).
l All speeds are nominal.
l Performance data is subject to alteration without prior notice.
l Unless stated otherwise dimensions are in mm.
l All imperial dimensions and performance data have been calculated from the measured metric values.
l Sound levels are ±2dB(A) measured using CAGI-PNEUROP test code.
l Before using an AFD always refer to the operating and warning instructions supplied with the tool.
l For AFD models maximum power is achieved at 50% of no load speed.
