14

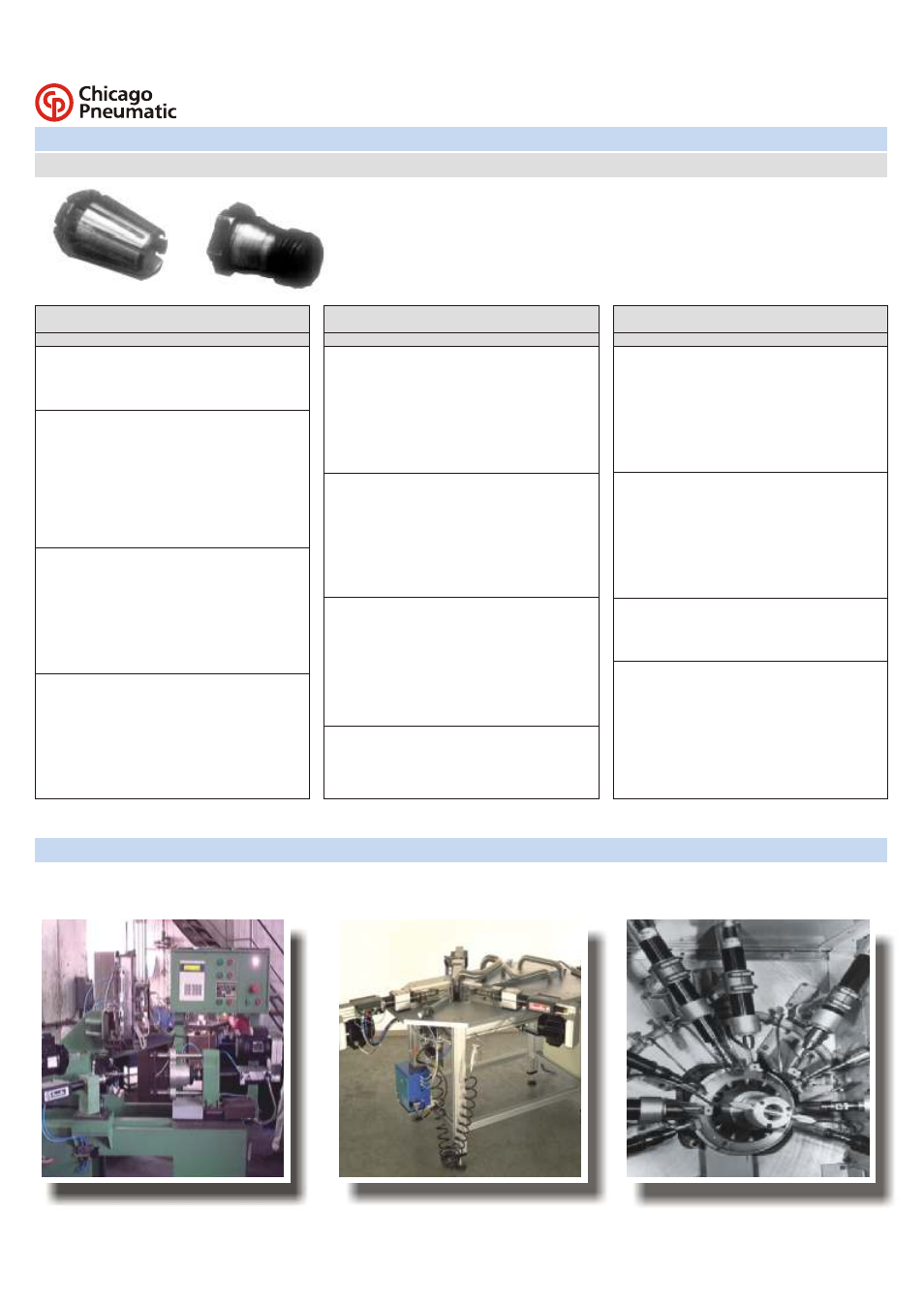

Multiple Spindle Heads
Collets
0.5 52582
0.6 52582
0.7 52582
0.8 52582
0.9 52582
1 60002 39442 52582
1.1 60022 39452 52592
1.2 60032 39462 52592
1.3 60042 39472 52592
1.4 60052 39482 52592
1.5 60062 39492 52592
1.6 60072 27852 52602
1.7 60082 39502 52602
1.8 60092 27862 52602
1.9 60102 39522 52602
2 60122 27872 52602 39302
2.1 60132 27882 52622 39322
2.2 60142 27892 52622 39322
2.3 60152 27902 52622 39342
2.4 60162 27922 52622 39352
2.5 60172 27932 52622 39362
2.6 60182 27942 52632 39372
2.7 60192 27952 52632 39382
2.8 60202 27962 52632 39392
2.9 60222 27972 52632 39402
3 60232 27982 52632 39422
3.1 60242 27992 52642 39432
3.2 60252 28002 52642 34902
3.3 60262 28032 52642 34932
3.4 60272 28042 52642 34942
3.5 60282 28052 52642 34952
3.6 60292 28062 52642 34962
3.7 60302 28082 52642 34982
3.8 60322 28092 52642 34992
3.9 60332 28102 52642 35002
4 60342 28122 52642 35022
SIZE COLLET TYPE
A B C D
mm
4.1 28132 52652 35032
4.2 28142 52652 35042
4.3 28152 52652 35052
4.4 28162 52652 35062
4.5 28172 52652 35072
4.6 28182 52652 35082
4.7 28192 52652 35092
4.8 28202 52652 35102
4.9 28222 52652 35122
5 28232 52652 35132
5.1 28252 52662 35152
5.2 28272 52662 35172
5.3 28282 52662 35182
5.4 28292 52662 35192
5.5 28302 52662 35202
5.6 28322 52662 35222
5.7 28332 52662 35232
5.8 28342 52662 35242
5.9 28352 52662 35252
6 28372 52662 35272
6.1 28382 52672 35282
6.2 28392 52672 35292
6.3 28402 52672 35302
6.4 39532 52672 35332
6.5 39542 52672 35342
6.6 52672 35352
6.7 52672 35362
6.8 52672 35382
6.9 52672 35392
7 52672 35402
SIZE COLLET TYPE
A B C D
mm
7.1 35422
7.2 35432
7.3 35452
7.4 35462
7.5 35472
7.6 35492
7.7 35502
7.8 35522
7.9 35532
8 35552
8.1 35562
8.2 35572
8.3 35582
8.4 35592
8.5 35602
8.6 35622
8.7 35632
8.8 35652
8.9 35672
9 35682
9.1 35692
9.2 35722
9.3 35732
9.4 35752
9.5 35762
SIZE COLLET TYPE
A B C D
mm
Applications
l Collects for multiple spindle heads
l Types A, B and D are threaded types
l Type C are Er11 type
