Side View Top View
Use only GE or Sylvania
CFL lamps
Sheet 2 of 2

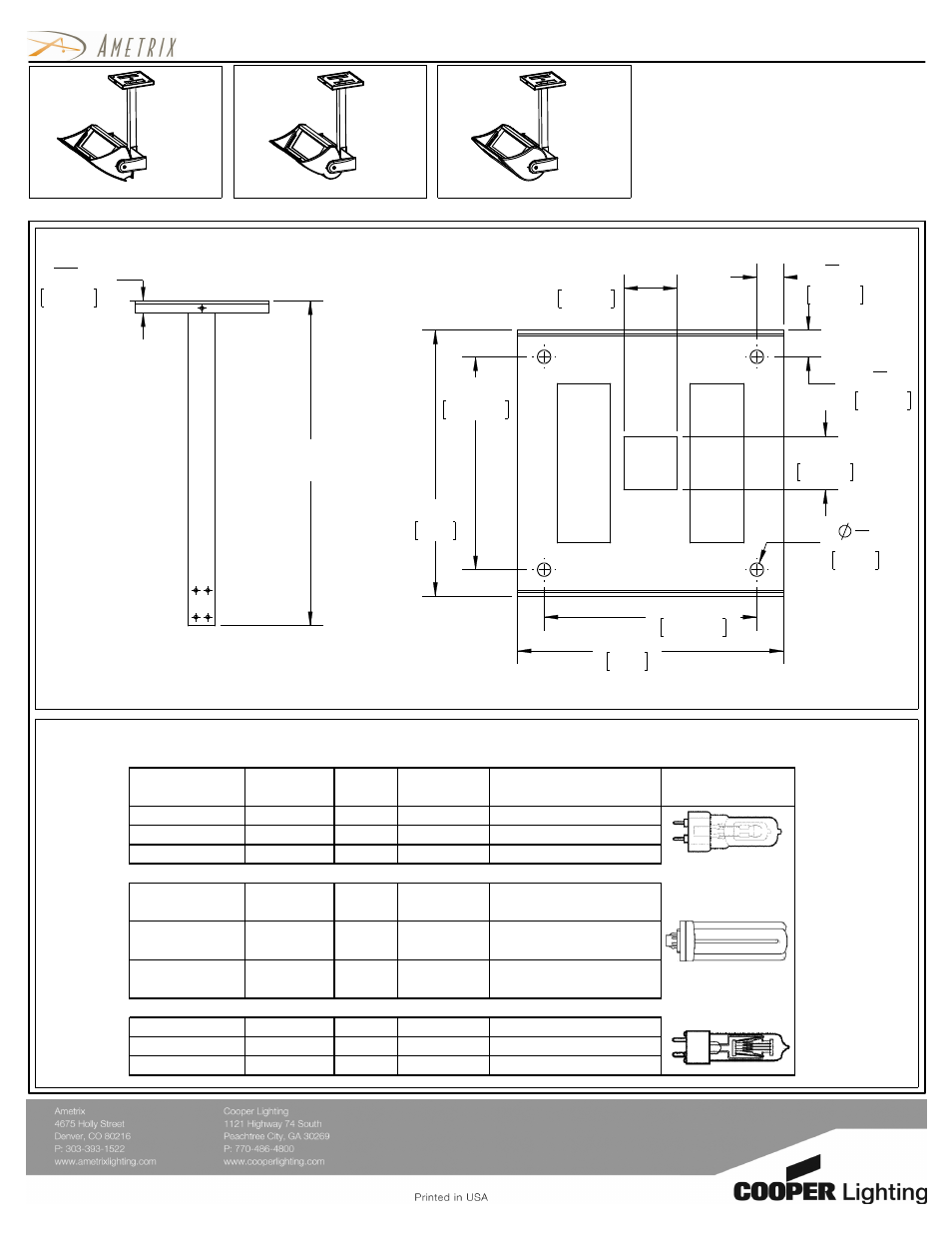

Installation Instructions
Vault w/ visor C-Scroll w/ visor Roundel w/ visor
These installation instructions are valid with the above Ametrix styles
Mounting Plate Dimensions In [mm]
Visor and Non-Visor
Warning
Lamping Size Chart
Do not
that all sources of power are turned off. All
: Before starting any work ensure
performed by a certified electrician.
work must meet local/national codes and be
mount fixtures vertically.
(lamps provided by others)
Small, INDOOR
P1R
(Pendant, 1-way, Remote ballast)
ADY071464 REV B (ECN80481)
"
25.40
"
1
1"
2
(4x)
6.35
1
12.70
5"
127
5"
127
1"
4
4"
101.60
4"
101.60
25.40
1
2 "
12.70
7
16 "
11.42
on order
Length dependant
FIXTURE SIZE
(inches/ mm)
WATTAGE
# OF
LAMPS
LAMP TYPE LAMP DESCRIPTION
10 3/4 / 273.05 39 W 1 T6 Ceramic Metal Halide
12 3/4 / 323.85 70 W 1 T6 Ceramic Metal Halide
12 3/4 / 323.85 150 W 1 T6 Ceramic Metal Halide
12 3/4 / 323.85 26 W 1
4-Pin Triple
Tube
Compact Fluorescent
12 3/4 / 323.85 32 W 1
4-Pin Triple
Tube
Compact Fluorescent
12 3/4 / 323.85 42 W 1
4-Pin Triple
Tube
Compact Fluorescent
10 3/4 / 273.05 100 W 1 T4 Halogen (Single Ended)
12 3/4 / 323.85 150 W 1 T4 Halogen (Single Ended)
12 3/4 / 323.85 250 W 1 T4 Halogen (Single Ended)
LAMP
(not to scale)
