Cooper Lighting ACT953IC - Manual

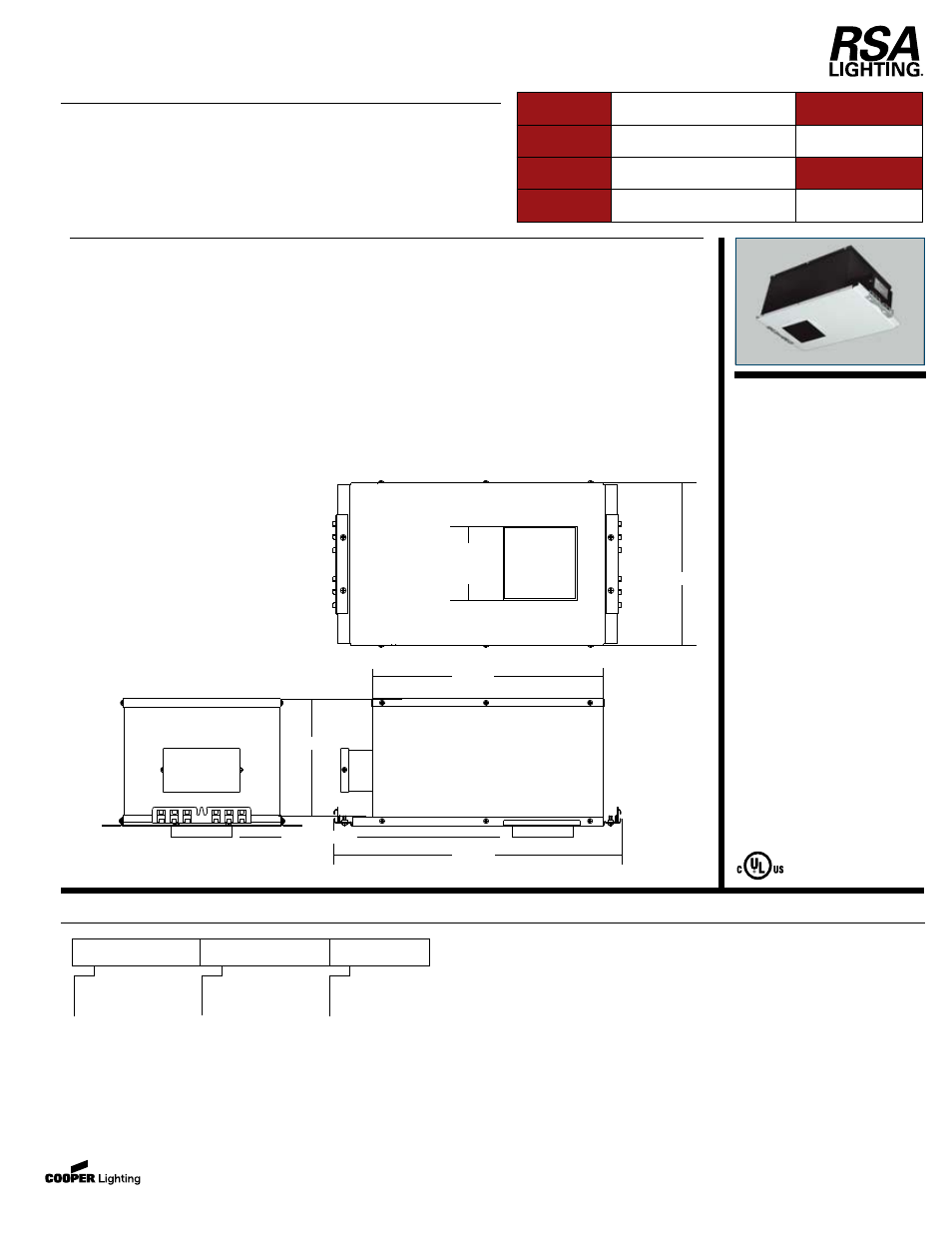

DESCRIPTION Catalog # Type
Project
Comments Date
Prepared by
www.cooperlighting.com
SPECIFICATION FEATURES
10.75”
14.13”
17.13”
7.50”
Ceiling
Cut-Out
4.50”sq.
0.5” - 1.0”
A ...Housing
Housing and plaster frame: 18 gauge CRS
with flat black powder coated internal
finish. Adjustable plaster frame can
accommodate up to 1” ceiling thickness.
B ...System Protection:
Thermal protection provided.
C ...Electrical
Integral j-box and electronic or magnetic
low voltage transformer. 120V or 277V
input, 12V output. Junction box is
U.L. listed for through branch wiring.
Includes five 1/2 trade size knockouts
(six knockouts when magnetic xfmr. is
specified)
D ...Lamp
12V MR16 50 watts max. (not included)
Internal rotation ring with locking
adjustment. Provides 360º rotation of
trim and secures original trim position
after relamping. “POSI-GRIP” bi-pin
lamp socket for firm, mechanical lamp
connection.
E ...Mounting
Hanger Bars and Butterfly Brackets
included for residential and commercial
applications respectively.
Ceiling Cut-Out: 4.50” sq.
ACCURUS
HOUSING
ACT953IC
Insulated Ceiling
AirTite Housing
for Square Trim
FOR 12V MR16 50 watts max.
ORDERING INFORMATION
Housing
ACT953IC =
Accurus Insulated Ceiling
AirTite Housing for Square
Trim w/Integral Transformer
Voltage
120
= 120 volts primary
277 = 277 volts primary
Insulated ceiling AirTite housing for 5” Accurus square trim fixtures. For
12V MR16 71 watts max.
For insulated ceiling applications. Rated for direct contact with insulation
material.
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Transformer
ELC
= Electronic
MAG = Magnetic
ACT953IC
rev 122007
__ __
