DESCRIPTION
Catalog # Type
Project
Comments Date
Prepared by
SPECIFICATION FEATURES
www.cooperlighting.com

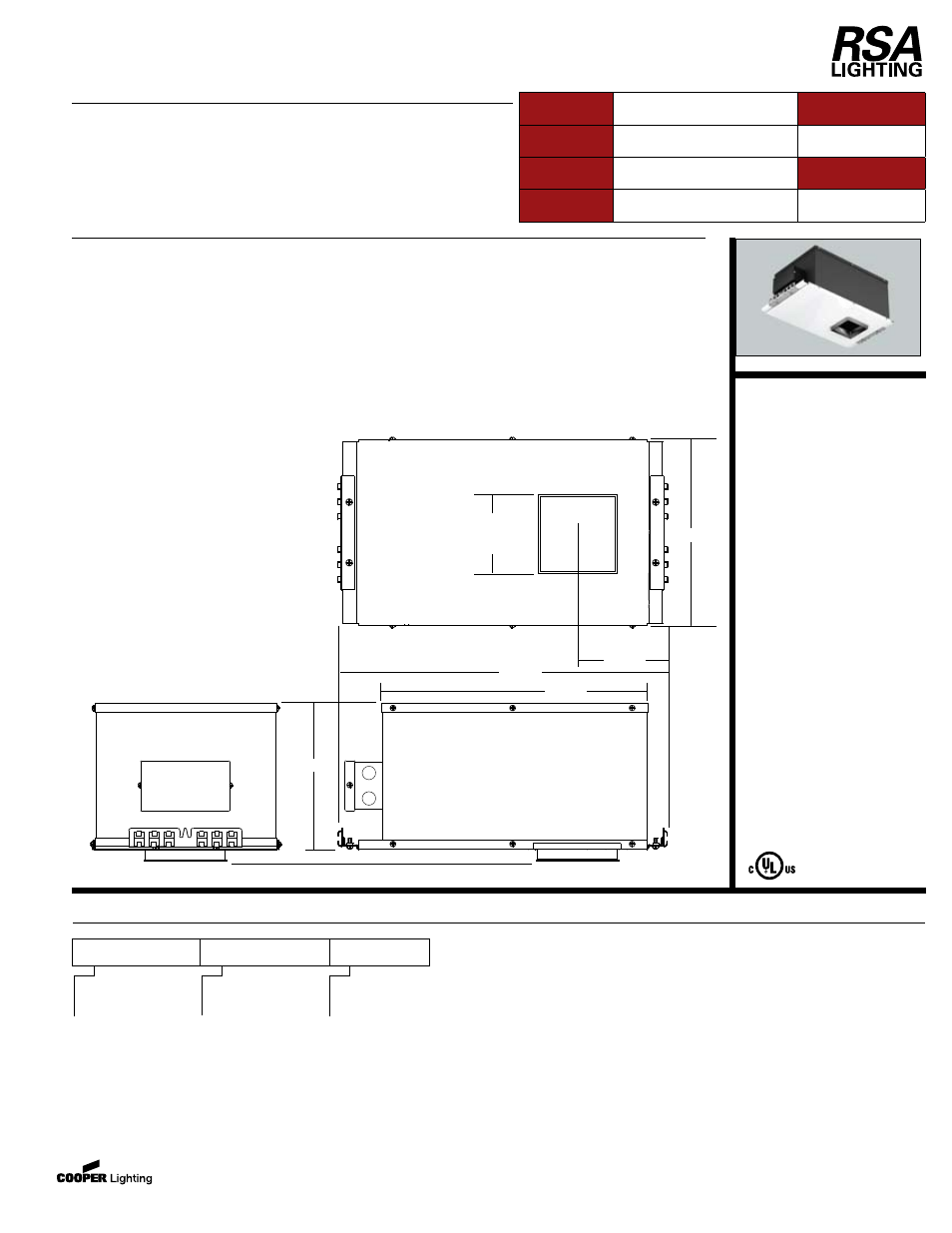

10.00”
17.50”
14.25”
5.00”
7.63”
0.5” - 1.0”
Ceiling
Cut-Out
3.63”sq.
A ...Housing
Housing and plaster frame: 18 gauge CRS
with flat black powder coated internal
finish. Adjustable plaster frame can
accommodate up to 1” ceiling thickness.
B ...System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.
C ...Electrical
Integral j-box and low voltage (12V)
transformer . 120V input, 12V output.
Junction box is U.L. listed for through
branch wiring. Includes seven 1/2 trade
size knockouts.
D ...Lamp
12V MR16 50 watts max. (not included)
“POSI-GRIP” bi-pin lamp socket for firm,
mechanical lamp connection.
E ...Mounting
Hanger Bars included.
Ceiling Cut-Out: 3.63” sq.
MINI
ACCURUS
ACM512IC
Insulated Ceiling
Air Tite
I.C. Housing
for Square Trim
FOR 12V MR16 50 watts max.
ORDERING INFORMATION
Housing
ACM512IC =
Mini Accurus
I.C. Housing
for Square Trim
w/ Integral Transformer
Voltage
120
= 120 volts primary
277 = 277 volts primary
New construction I.C. housing for Mini Accurus small aperture square
trims. (ACM5101, ACM5102, ACM5103, ACM5104).
For use in insulated ceiling I.C. applications. Housing may be covered on
all sides with insulation material.
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Transformer
ELC
= Electronic
MAG = Magnetic
ACM512IC
rev. 091806
