INSTALLATION
m
3
w'

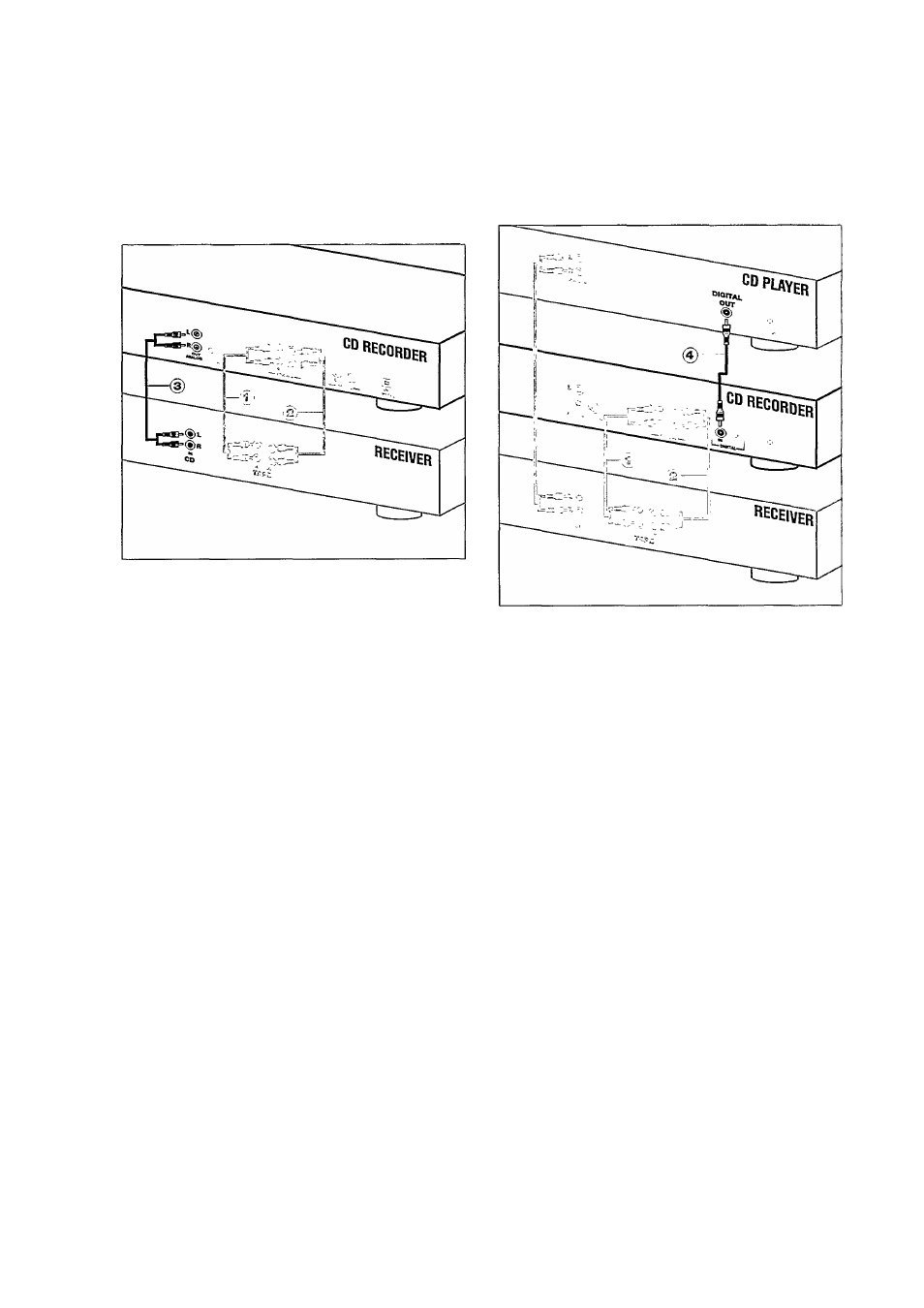

Analogue connection CD Player deck
Digital Coaxial Connection CD Recorder
This connection is only required if you want to play back on
the CD Player deck separately from the CD Recorder deck.
This is called the DUAL mode.
1
For playing back separately on the CD Player deck, connect
a third cable
@
(not supplied) between the ANALOGUE
OUT plugs on the CD Recorder and the INPUT plugs on an
amplifier, e.g. CD or AUX.
(Connect the red line in the R plugs and the white line in
the L plugs.)
Note:
-
Never use the PHONO input
-
Your CD Recorder/Player is equipped with a digital coaxial
output for the CD Player deck. This output connection can
be used for digital play-back.
This connection is only required if you want to record from an
external CD player with a digital coaxial output.
1
For recording from an external source, use a fourth cable
0 (not supplied) to connect the DIGITAL IN plug on the
CD Recorder/Player to the DIGITAL OUT plug on an e;
CD player.
Note: Your CD Recorder/Player is equipped with a digital
coaxial output plug (common plug for CD Recorder deck
and CD Player deck). This output can be used for digital
play-back.
