tight.

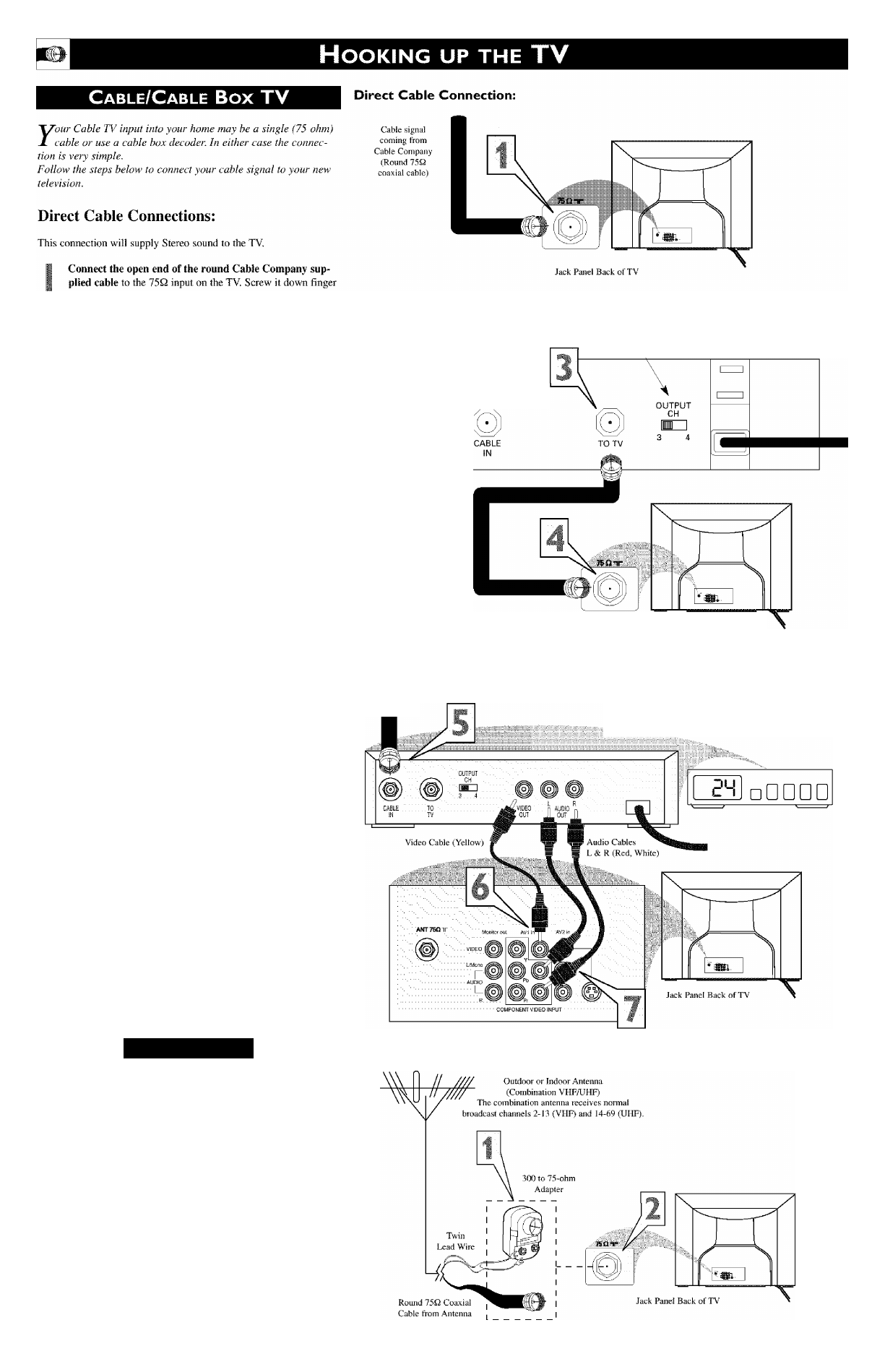

Cable Box (w/RF In/Outputs): Cable Box with RF Inputs and Outputs Connection:
Output Channel Switch
This connection will NOT supply Stereo sound to the TV. The sound Cable Signal
from the cable box will be mono.
3
Connect the open end of the round Cable Company sup­
plied cable to the cable signal IN(put) plug on the back of
the Cable Box.
Using a separate round coaxial cable, connect one end to the
OUT(put) (TO TV) plug on the back of the Cable Box.
Connect the other end of the round coaxial cable to the
750 input on the back of the television. Screw it down finger
tight.
NOTE: Be sure to set the OUTPUT CHANNEL SWITCH on the
back of the cable box to CH 3 or 4, then tune the TV to the corre­
sponding channel. Once tuned, change channels at the cable box, not
the television.
IN from the
Cable
Company
Jack Panel Back
of Cable Box
Round 75£i
Coaxial Cable
Jack Panel Back of TV
Cable Box (w/Audio/Video Outputs):
This connection will supply Stereo sound to the TV.
Connect the open end of the round Cable Company sup­
plied cable to the cable signal IN(put) plug on the back of
the Cable Box.
Using a RCA type Video Cable, connect one end of the
cable to the Video (or ANT, your cable box may be labeled
differently) Out Jack on the cable box and the other end to the
AVI Video Input on the TV.
Cable Box with Audio/Video Outputs Connection:
7 Using a RCA type Audio Left and Right Cable, connect one
end to the left and right Audio Out L & R jacks on the
cable box.
Connect the other end to the AV1 Audio L & R
Input jacks on the TV.
NOTE: Use the Channel +, or - buttons on the TV remote control to
tune to the AVI channel for the cable box signal. Once tuned, change
channels at the cable box, not the television.
A ntenna TV
A combination antenna receives normal broadcast chan­
nels (VHF 2—13 and UHF 14~-69). Your connection is
easy because there is only one 75Q (ohm) antenna plug on
the hack of your TV, and that’s where the antenna goes.
If your antenna has a round cable (75 ohm) on the end,
then you're ready to connect it to the TV.
If your antenna has flat, twin-lead wire
(300 ohm), you
first need to attach the antenna wires to the screws on a
300- to 75-ohm adapter.
Push the round end of the adapter (or antenna) onto the
75Q (ohm) plug on the back of the TV. If the round end of
the antenna wire is threaded, screw it down finger tight.
Cable Signal IN
from the Cable
Company
.lack Panel Back
olVCuNc Bo.x.wi.Lli A/V Ompulis
Antenna Connection:
