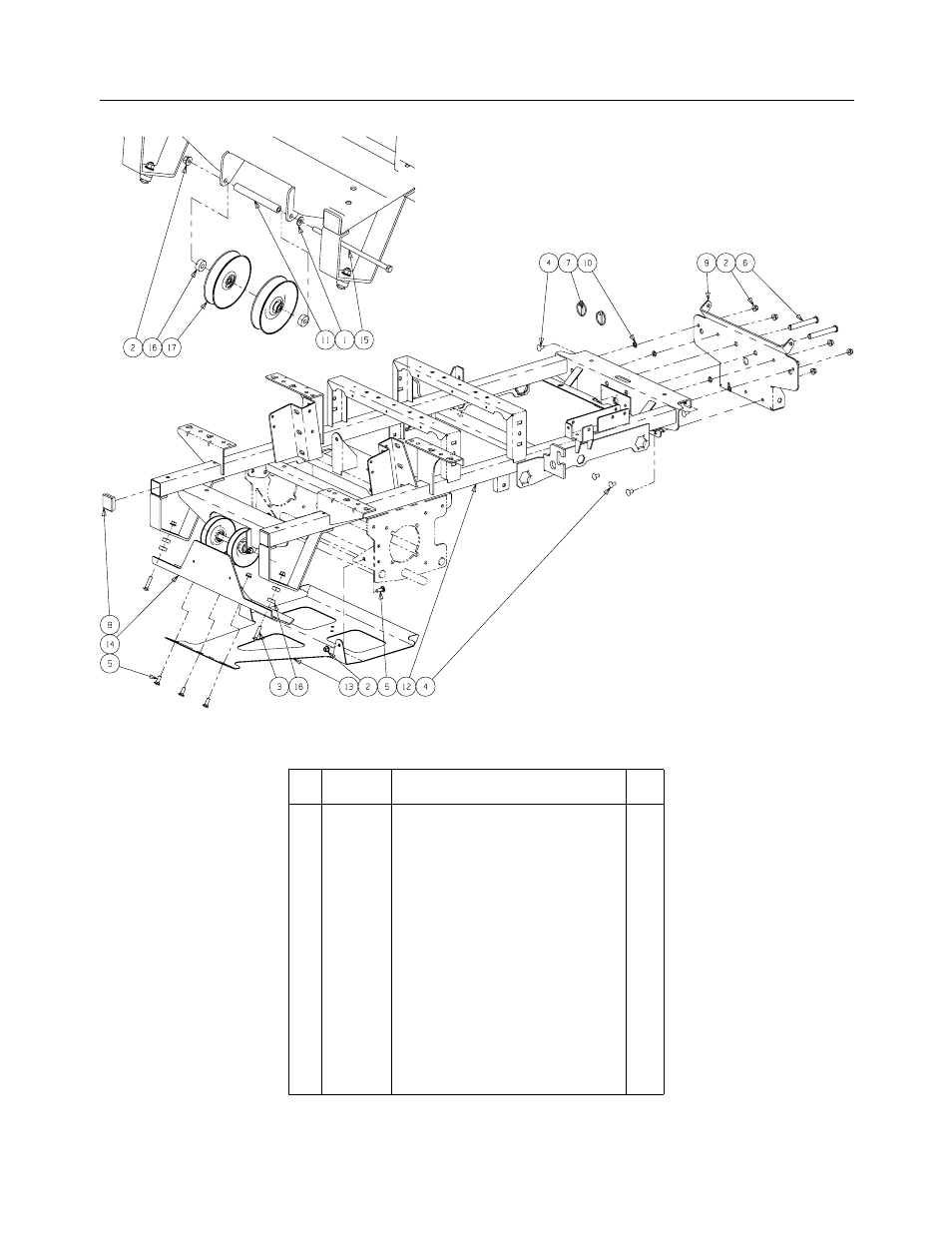

72" Frame Assembly- Figure 2 and Parts List
Ref.
No. Part No.
Description
Qty.
1
00012158 Flat Washer, 3/8
1
2
00022560 Hex Nut, 3/8-16 Flange Lock
15
3
01000364 Hex Carriage Screw, 3/8-16, 1.75
2
4
01000372 Carriage Bolt, 3/8-16 x .75 Long
7
5
01000643 Carriage Bolt, 3/8-16 x 1
5
6
01003282 Clevis Pin, .625 Dia x 4.375 Long
2
7
01003993 Linch Pin, 3/16 Dia.
2
8
01005160 Plug, Square Tube
2
9
01007779 Bracket Assembly, Frame, Front
1
10 01008225 Push Retainer, 3/8"-Thread Stud
4
11 01009604 Spacer, .385 ID x .625 OD x 4.89
1
12 02001012 Frame Assembly
1
13 02002282 Skid Plate
1
14 02002281 Guard Bracket
1
15
710-3248 Hex Head Cap Screw, 3/8-16 x 8.50
1
16
750-3119 Spacer .406 ID x 1.0 OD
6
17
756-3045 Idler Pulley, 5.06 Dia.
2
GD: 02002434-04/11/06
