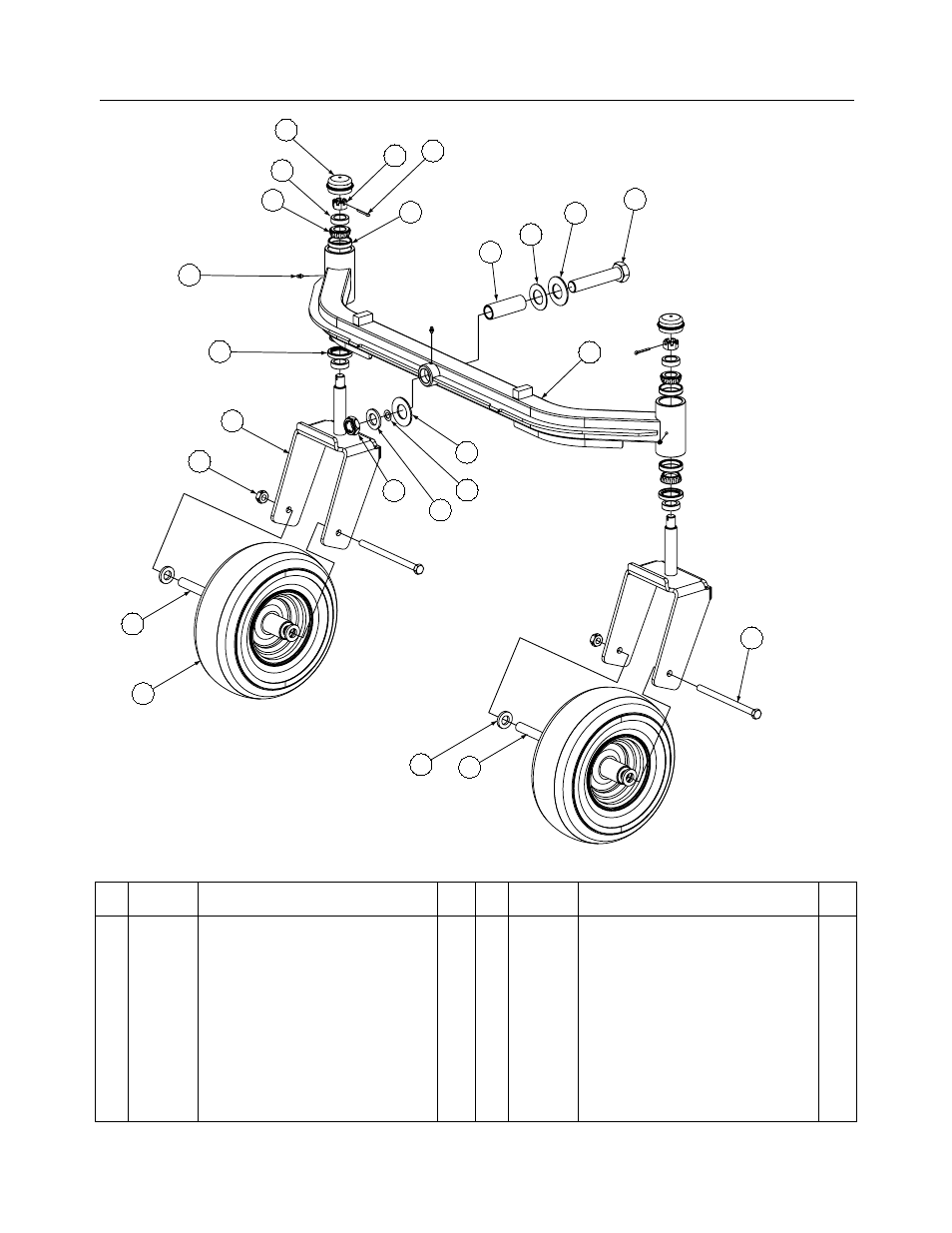

72" Front Caster Assembly - Figure 11 and Parts List
Ref.
No. Part No.
Description
Qty.
Ref.
No. Part No.
Description
Qty.
1
00023287 Nut, 1/2-20, Center Lock
2
10 01006961 HHCS, 1/2-20, 7.50
2
2
01006294 Bell Washer, 1.25 ID x 2.5 OD x .180
2
11 01007760 Front Axle Assembly
1
3
00060078 Grease Fitting
3
12 01002620 Cup Bearing
4
4
01009997 Retainer Extension, Self Locking
1
13 01002621 Bearing Cone
4
5
02000589 Spacer, 1.005 ID x 1.25 OD x 3.6
1
14 01002622 Seal
2
6
01000678 Nut, Jam, 1.0-14, Insert Lock
1
15 01002624 Ring Seal
4
7
01006309 Hex Cap Screw, 1-14 x 5.0
1
16 01006347 Grease Cap, 1.986 OD
2
8
01006913 Wheel, 13 x 6.50 x 6, White includes:
2
17 01002626 Slotted Nut, 3/4-16
2
02002108 Tire
1
18 01002627 Cotter Pin, 5/32, 1.25
2
02002106 Roller Bearings
2
19 01006912 Wheel Spacer
2
02002107 Retainer Bushings
2
20 02000588 Flat Washer, 1.00 ID x 2.00 OD x .075
1
9
01007407 Yoke, Caster Wheel
2
21 01003123 Spacer, .812 ID x .218LG
4
16
15
13
1
9
14
17
11
7
10
2
6
20
2
20
18
12
19
19
21
8
3
5
4
GD: 01007758-01/24/05
