Page 28
28

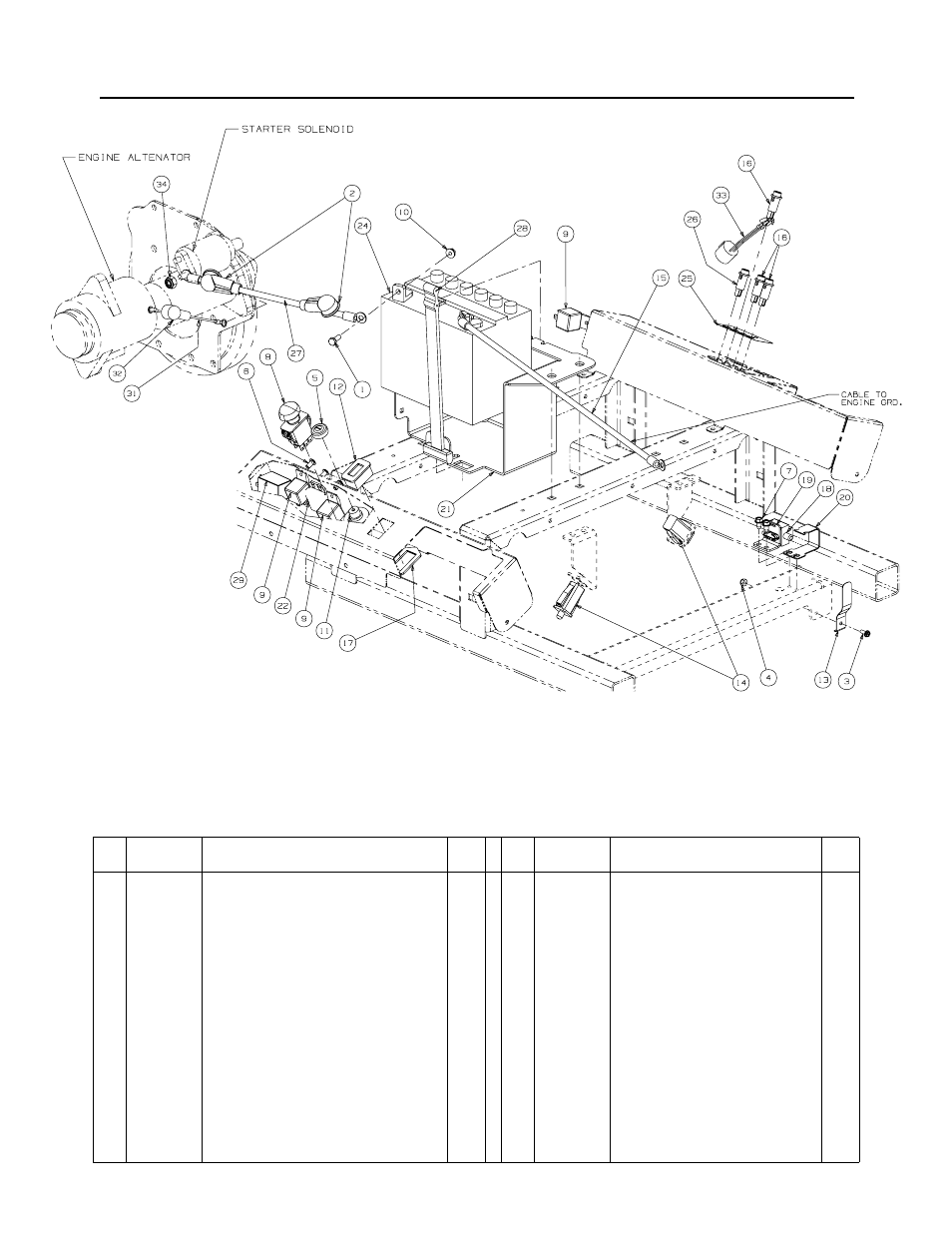

Electrical Assembly- Figure 17 and Parts List
Ref.
No. Part No.
Description
Qty.
Ref.
No. Part No.
Description
Qty.
1
00013131 Screw, Hex, Cap, 1/4-20 x .75
2
18
02000165 Switch, Plunger
1
2
00013258 Boot, 1" OD Rubber Battery-PST, Red
2
19
02000349 Bracket, Plunger Switch
1
3
00013669 Screw, Hex Washer, 10-32 x 1/2
1
20
02000348 Clamp, Plunger Switch
1
4
00014608 Lock Nut, Nylon Insert
1
21
02000909 Mount Bracket, Battery
1
5
00032097 Nut, W/Cap, 5/8-32 Ignition
1
22
02000907 Interlock Time Delay Shutdown
1
6
01000443 Screw Button Head, 1/4-20 x .5
3
23
02000915 Harness Assembly (not shown)
1
7
01000628 Screw, TT, 1/4-20, 0.5, Hex Index Washer
2
24
02001114 Battery, 320CCA
1
8
01002111 Switch, Electric, PTO
1
25
02001115 Decal,Engine Light
1
9
01002251 Relay, 12V 40A
3
26
02001350 Light Indicator, 12V
1
10
01002766 Lock Nut, 1/4-20
2
27
02002059 Cable, Battery Red, 42"
1
11
01003581 Switch, Ignition, 6 Pin
1
28
723-3064 Strap, Battery
1
12
01007597 Meter, Hour
1
29
725-04218 Timer Relay
1
13
01008042 Spring Retainer
1
30
00012470 Tie, Cable, 3/16 x .05 x 7.4"
4
14
01008571 Switch, Plunger
2
31
02000987 Wire, Alternator Charge
1
15
01009623 Cable, Battery Black, 34"
1
32
02002346 Cover, Alternator
1
16
01009816 Light Indicator, 12V
3
33
02002588 Alarm, High Temperature
1
17
01009905 Bracket, PTO Switch Retainer
1
34
01003561 Nut, Hex, Center Lock, M8
1
GD: 02001006-05/17/06
Fasten relay (01002251) with Button Head Screw
(01000443) on LH control panel shown in Fig. 9.
