P RESARIO M AINTENANCE AND S ERVICE G UIDE 1200XL S ERIES P IN A SSIGNMENTS 1
Presario 1200 Series
Models: XL101-XL113, XL115, XL118-XL127
Pin Assignments
This section provides connector pin assignment tables for Compaq Presario 1200XL series
portable Notebook computers. For more information on connectors, refer to the section on
Rear Connectors .
Note: The signals in all tables of this section are considered active high unless otherwise
indicated by an asterisk (*).

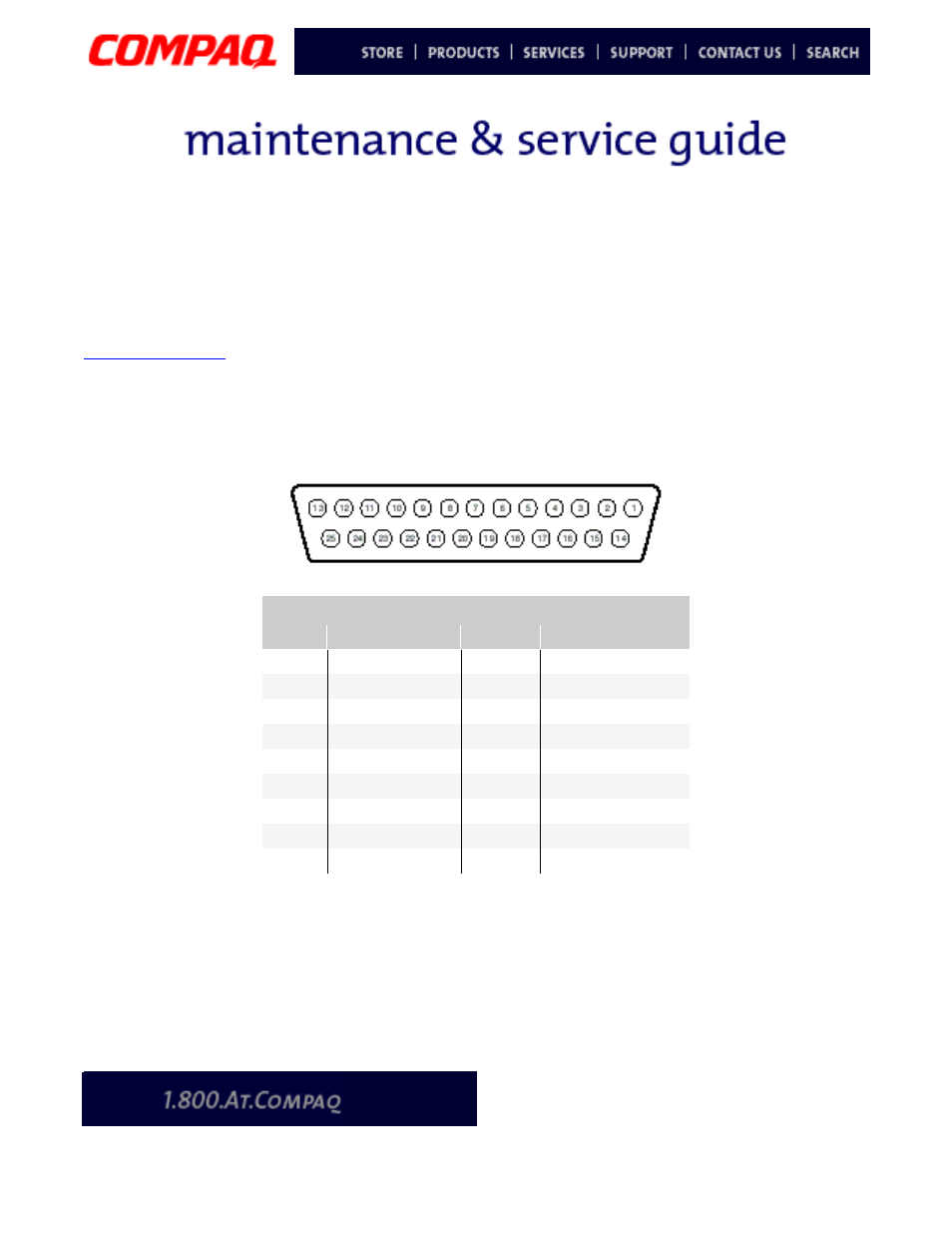

Parallel Connector
* = Active low
Pin Assignments
Pin Signal Pin Signal
1 Strobe* 10 Acknowledge*
2 Data Bit 0 11 Busy
3 Data Bit 1 12 Paper Out
4 Data Bit 2 13 Select
5 Data Bit 3 14 Auto Linefeed*
6 Data Bit 4 15 Error*
7 Data Bit 5 16 Initialize Printer*
8 Data Bit 6 17 Select In*
9 Data Bit 7 18-25 Signal Ground
