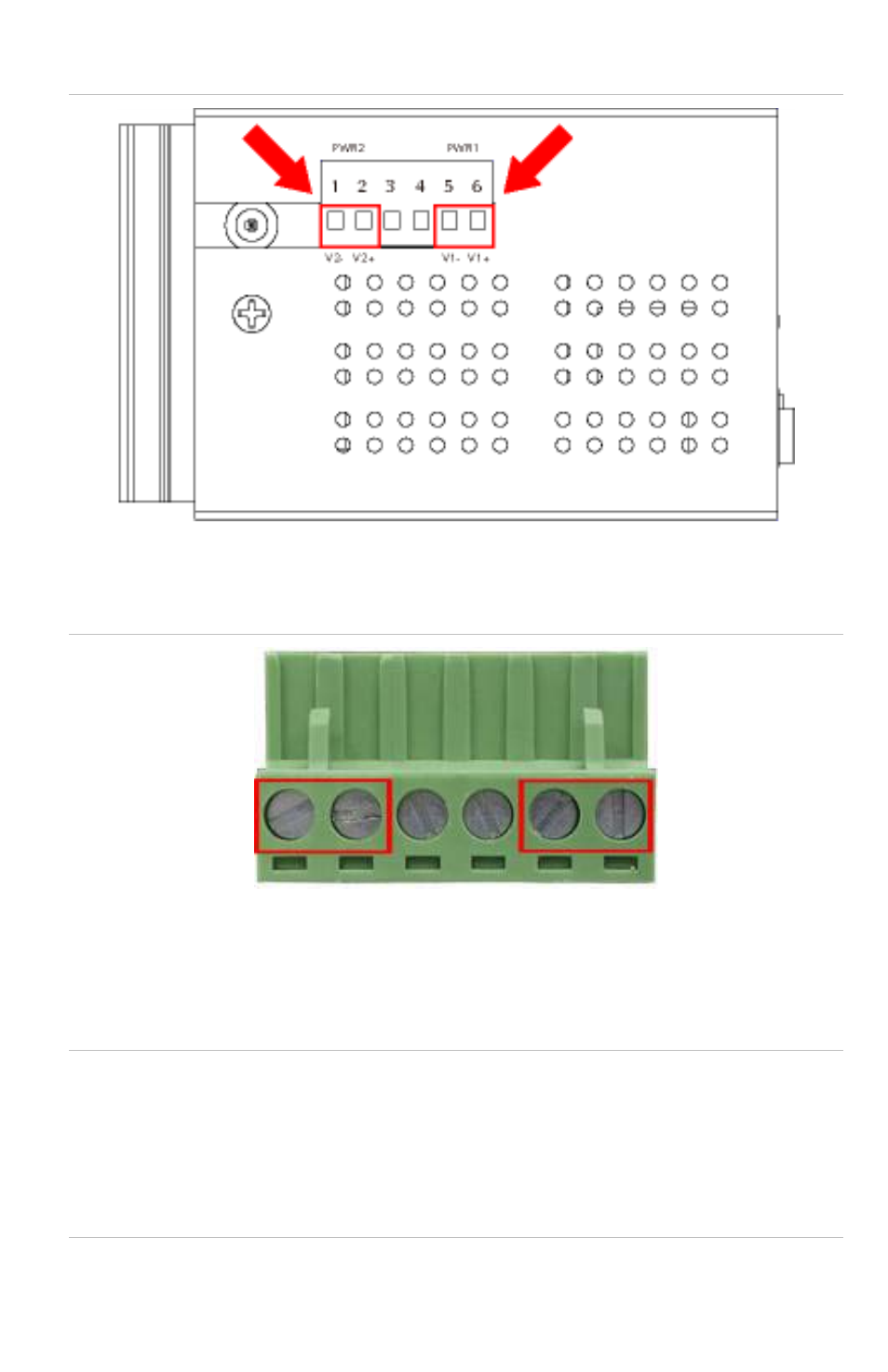

Figure 1: Terminal block connectors
2. Tighten the wire-clamp screws to prevent the wires from loosening.
Figure 2: Terminal block pinouts
1 2 3 4 5 6
Power 2 Power 2
- + - +
Note: The wire gauge for the terminal block should be in the range between
12 to 24 AWG.
For the GE-DSH-82-PoE, A 48VDC, 3A power input is required for full PoE
load on the PoE. Please connect an external power source to the terminal
block that can supply steady power at 48VDC.
P/N 1069666-EN • REV 1.01 • ISS 14JUL10 3 of 13
